Description
Thermostatic control for an AC intake and extraction pair

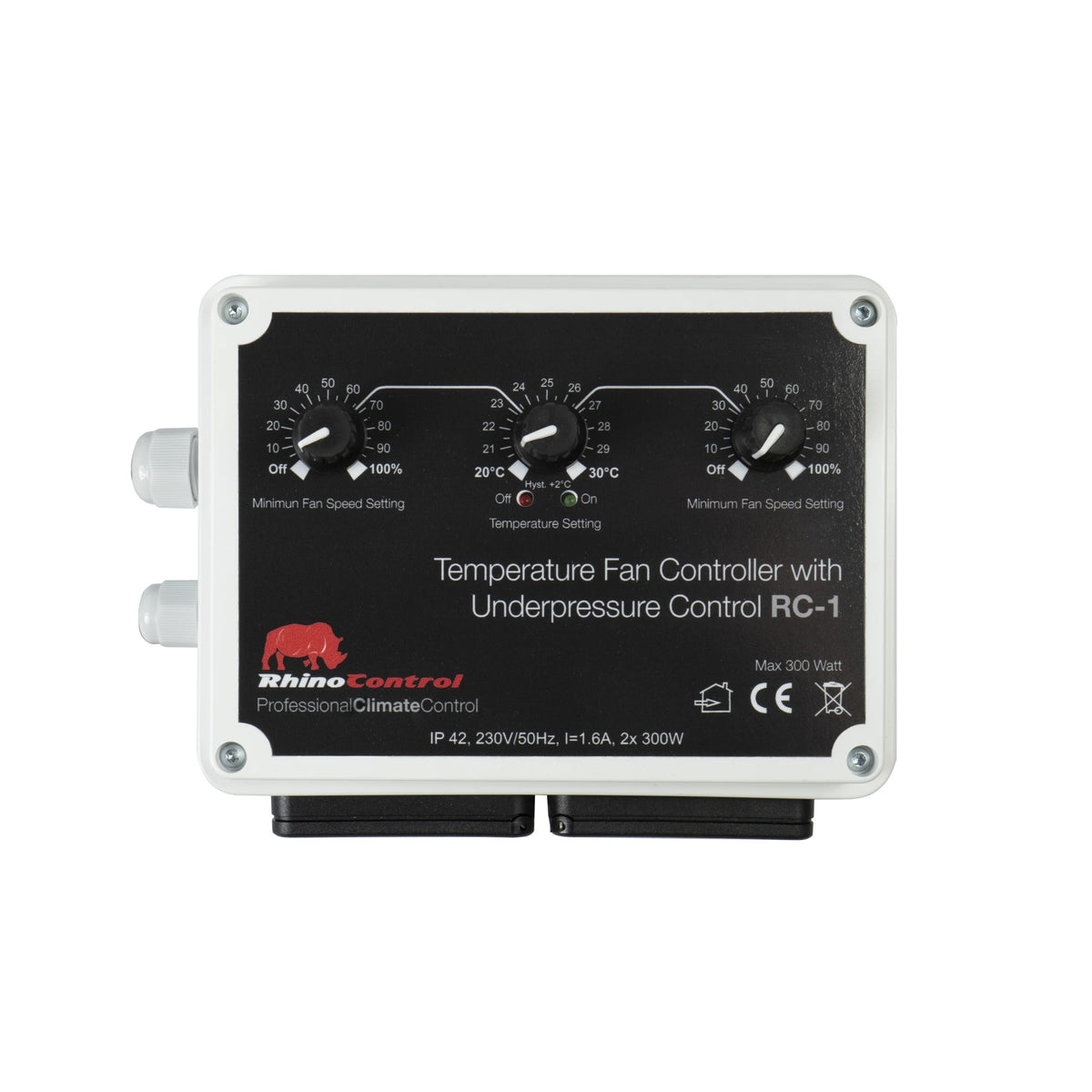

The Rhino AC RC-1 Fan Controller is a temperature-controlled, dual-fan controller for standard AC fans up to 300 W each. Both fans run at full speed until the room reaches the temperature you set (20–30 °C), then drop to their own minimum idle speeds, so the room keeps exchanging air without running flat out. Setting the intake idle lower than the extractor gives the underpressure (negative pressure) control printed on the front of the unit.
Key Benefits
- Two AC fan outputs, each rated to 300 W
- Thermostatic control from 20 to 30 °C with a 2 °C switching hysteresis to stop the fans hunting
- Separate minimum-speed dial for each fan (off to 100%) to hold negative pressure
- Full speed until temperature is reached, then a steady idle for continuous fresh air
- Hard-wired temperature sensor and a sealed, wall-mounting enclosure
Stale air and heat build-up when a fan runs at one fixed speed
An AC fan on a single setting is either racing when the room is cool or struggling when the lights push the temperature up. The RC-1 brings the fans up to full speed only while the room is above target and drops them to an idle that still refreshes the air, keeping airflow and humidity steadier and cutting fan noise for most of the day.
How to Use
- Plug the intake and extraction fans into their outputs – check each fan draws no more than 300 W
- Hang the temperature probe at canopy height, out of the direct path of the lights
- Set the target temperature on the centre dial
- Set each fan's minimum speed, keeping the intake a little below the extractor so the space stays under negative pressure
Technical Specifications
- Fan outputs: 2 (intake and extraction)
- Maximum load: 300 W per fan (2 × 300 W), 1.6 A
- Fan type: AC (single-phase)
- Temperature setting: 20–30 °C, hysteresis +2 °C
- Minimum fan speed: off to 100%, set separately for each fan
- Supply: 230 V, 50 Hz
- Enclosure rating: IP42
- Sensor: hard-wired temperature probe
