Sanlight EVO RJ12 Adapter Cable – Bridge Your Lights to Any 0-10V Controller
The Sanlight EVO RJ12 Adapter Cable is the official link between a Sanlight EVO or STIXX series luminaire and a third-party lighting controller. Sanlight's own EVO driver uses a sealed, weatherproof Wieland connector for its dimming input, which does not plug straight into the RJ12 sockets used by Trolmaster, AC Infinity and similar automation systems. This 2m cable makes the conversion in one step, carrying the 0-10V signal cleanly from controller to driver so brightness can be dialled in and scheduled without any rewiring or soldering.
Key Benefits
- Direct Wieland-to-RJ12 conversion – links the EVO/STIXX dimming port straight to an RJ12 controller output
- Weatherproof EVO-side connector – keeps the sealed Wieland RST20i3 plug intact for a reliable, damp-safe connection
- 2m cable length – enough reach to route from the light down to a controller or splitter without extension
- Wide controller compatibility – works with Trolmaster, AC Infinity, Vivosun, Spider Farmer and other 0-10V systems (a suitable lighting adapter such as an LMA-14 or Type-A adaptor is needed on the controller side)

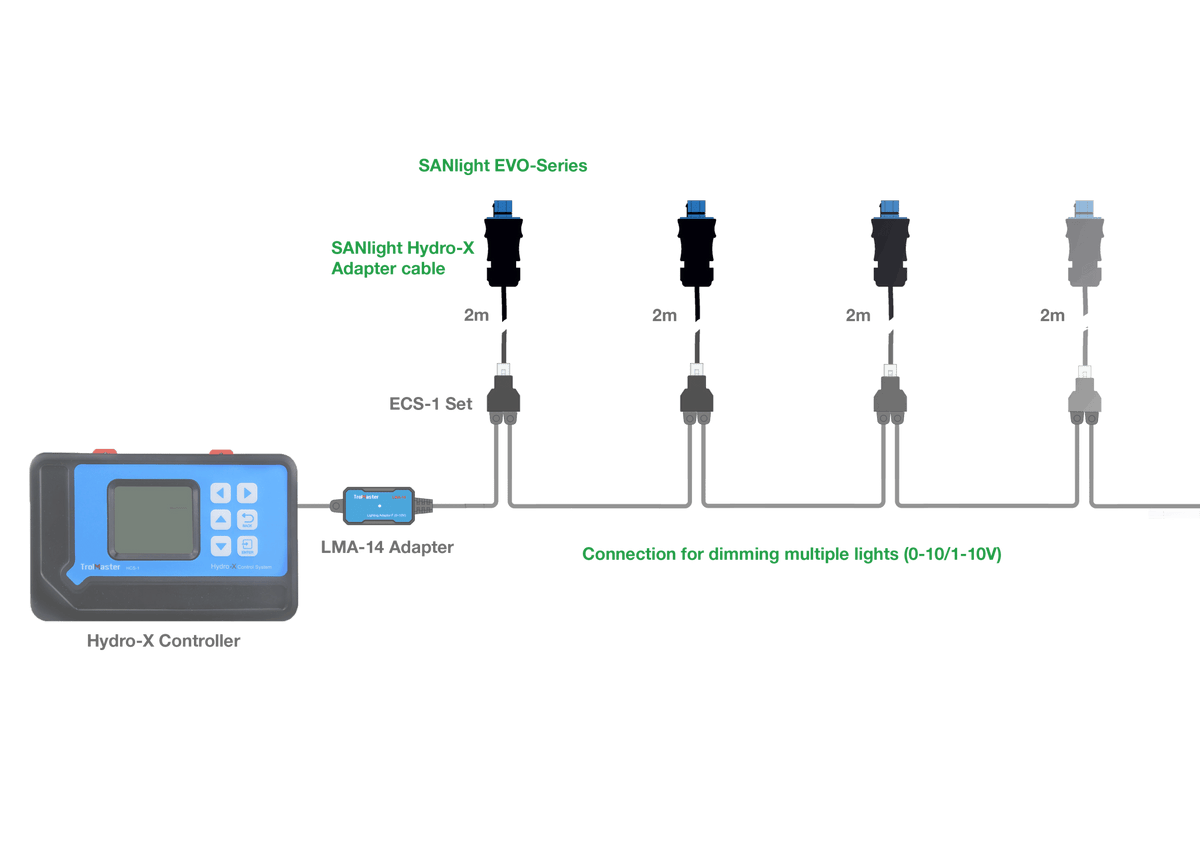

- One cable per light – simply repeat for each EVO or STIXX luminaire on a daisy-chained dimming setup
How to Use
Plug the Wieland end into the EVO or STIXX driver's dimming socket and the RJ12 end into the relevant lighting adapter or splitter on the controller side. No configuration is needed on the cable itself – dimming curves and schedules are all set from the controller.

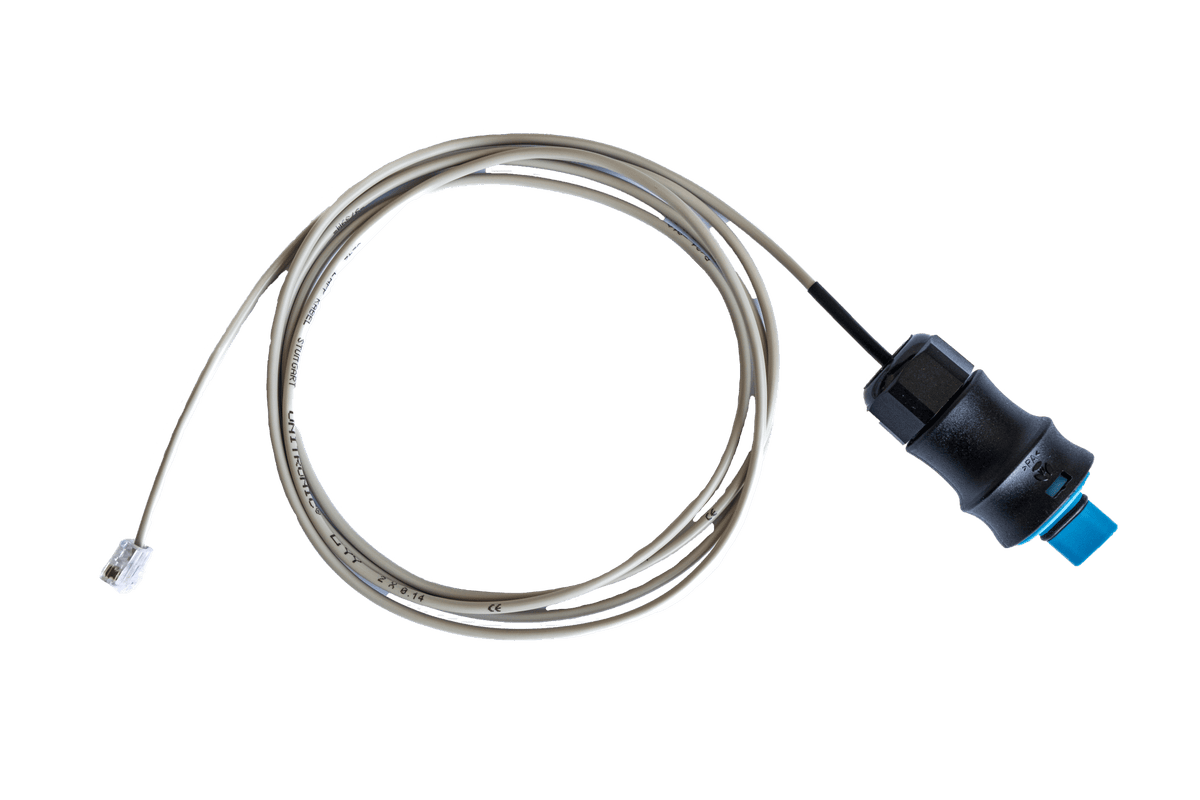

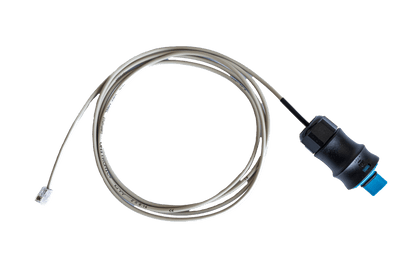

- Connector A: Wieland RST20i3 (EVO/STIXX dimming input)
- Connector B: RJ12 plug (0-10V controller input)
- Cable length: 2m
- Compatible controllers: Trolmaster, AC Infinity, Vivosun, Spider Farmer and similar 0-10V systems
- Compatible luminaires: Sanlight EVO Series, Sanlight STIXX Series
- Weight: 70g
