Serious extraction for large rooms, engineered to run quiet
The Revolution Super Silent High Power EC Vector is the largest EC inline fan in Systemair's Revolution range, built for multi-light rooms where extraction has to be strong and noise has to stay down. An aerodynamically optimised impeller with guide vanes holds airflow and static pressure even through a carbon filter and a long duct run, while the EC motor draws far less power than a comparable AC fan. It is made in two sizes only — 315mm (12") and 355mm (14"), sold by G.A.S as 315 Vector EC and 355 Vector EC — and pairs directly with EC controllers such as the G.A.S Enviro V2.
Key Benefits
- 3,784 m³/h on the 315mm, enough extraction for a full multi-light room
- Two large duct sizes, 315mm and 355mm, for whole-room rather than single-tent ventilation
- Extremely quiet compared with traditional duct fans of the same output
- Strong static pressure that holds airflow when loaded with a filter
- Energy-efficient EC motor drawing far less power than AC equivalents
- Sealed steel housing preventing air and odour leaks
- EC controller ready, compatible with the G.A.S Enviro V2 and similar
- European build quality for long, reliable service
Beating heat build-up and humidity spikes in a large room
Big indoor spaces battle heat and humidity from lighting and plant transpiration, and without enough extraction, temperature and humidity climb during flowering and drag down plant health and yield. This fan shifts large volumes of air efficiently while its aerodynamic design keeps turbulence and noise low, giving powerful extraction without the racket, so transpiration, nutrient uptake and flowering all stay on track.
How to Use
- Install the fan inline within your grow room ventilation system.
- Connect it between a carbon filter and ducting to extract stale air.
- Secure ducting connections with clamps for an airtight seal.
- Wire it to a compatible EC fan controller such as the G.A.S Enviro V2 for precise speed control.
- Mount on brackets or hanging straps to minimise vibration.
- Adjust fan speed through the controller to hold target temperature and humidity.
Technical Specifications

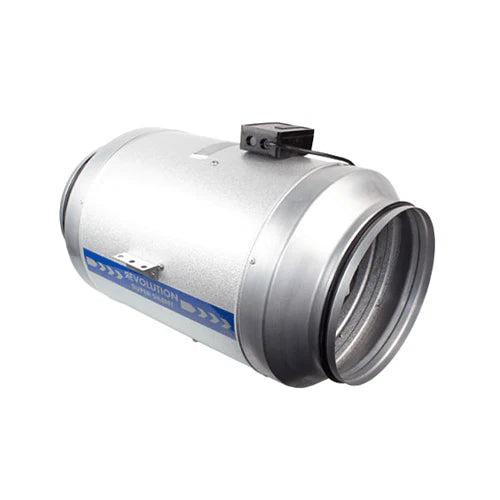

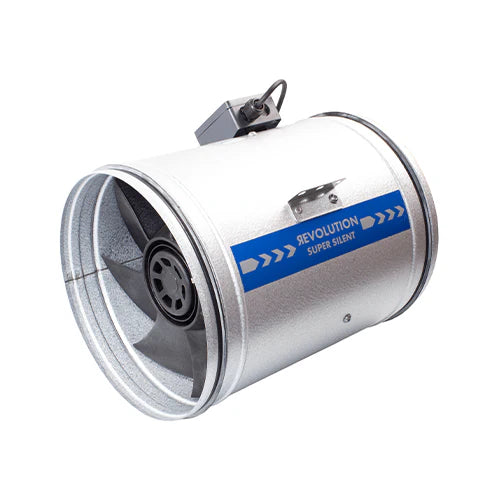

- Type: high-power EC inline duct fan, Systemair Revolution Super Silent Vector

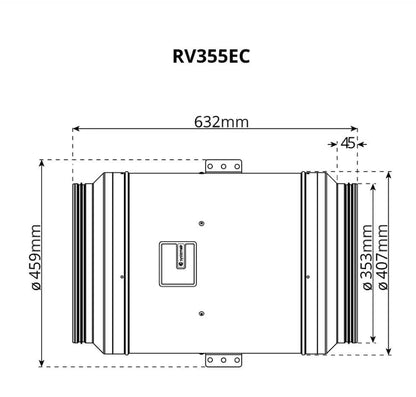

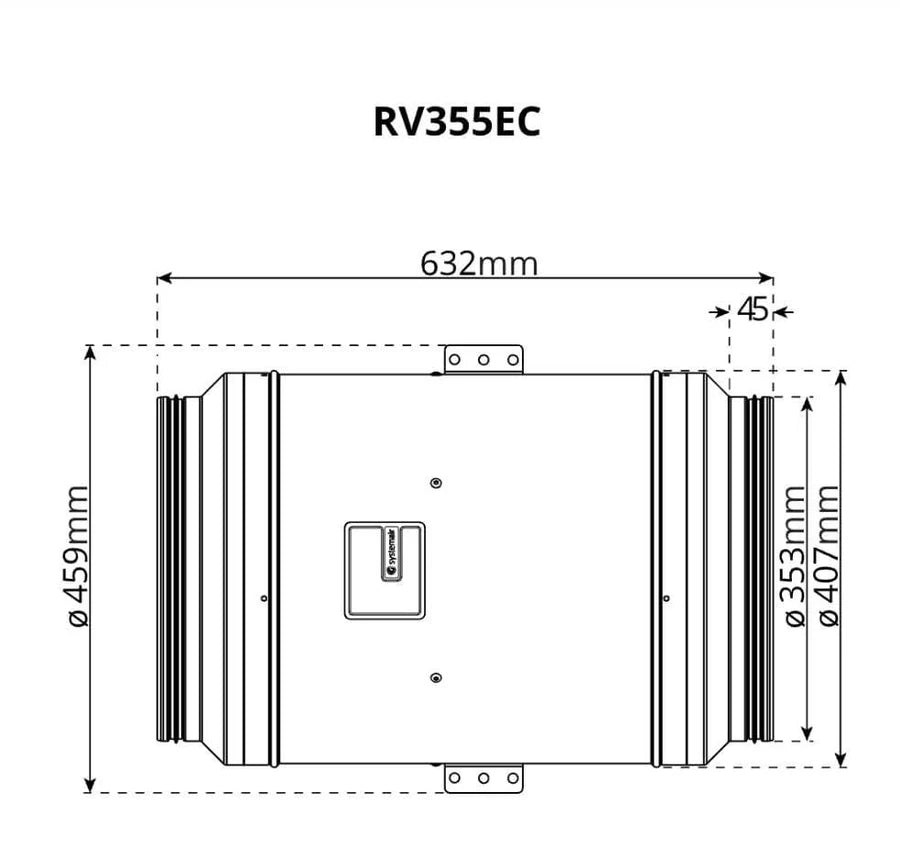

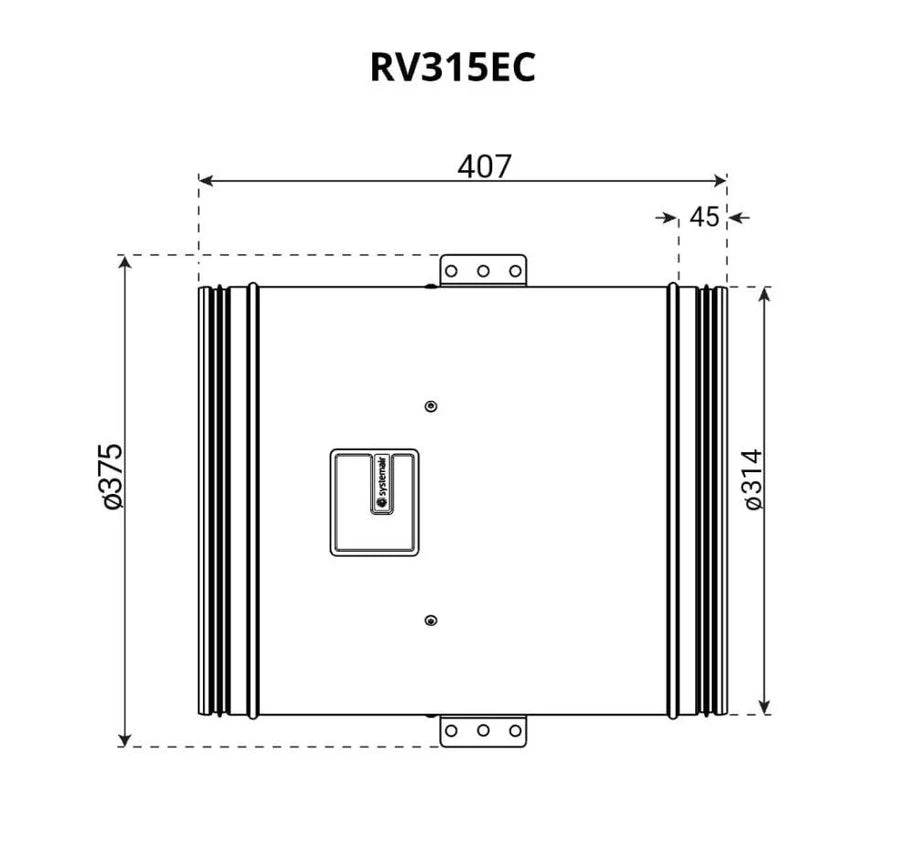

- Available sizes: 315mm (12") and 355mm (14") — sold by G.A.S as 315 Vector EC and 355 Vector EC

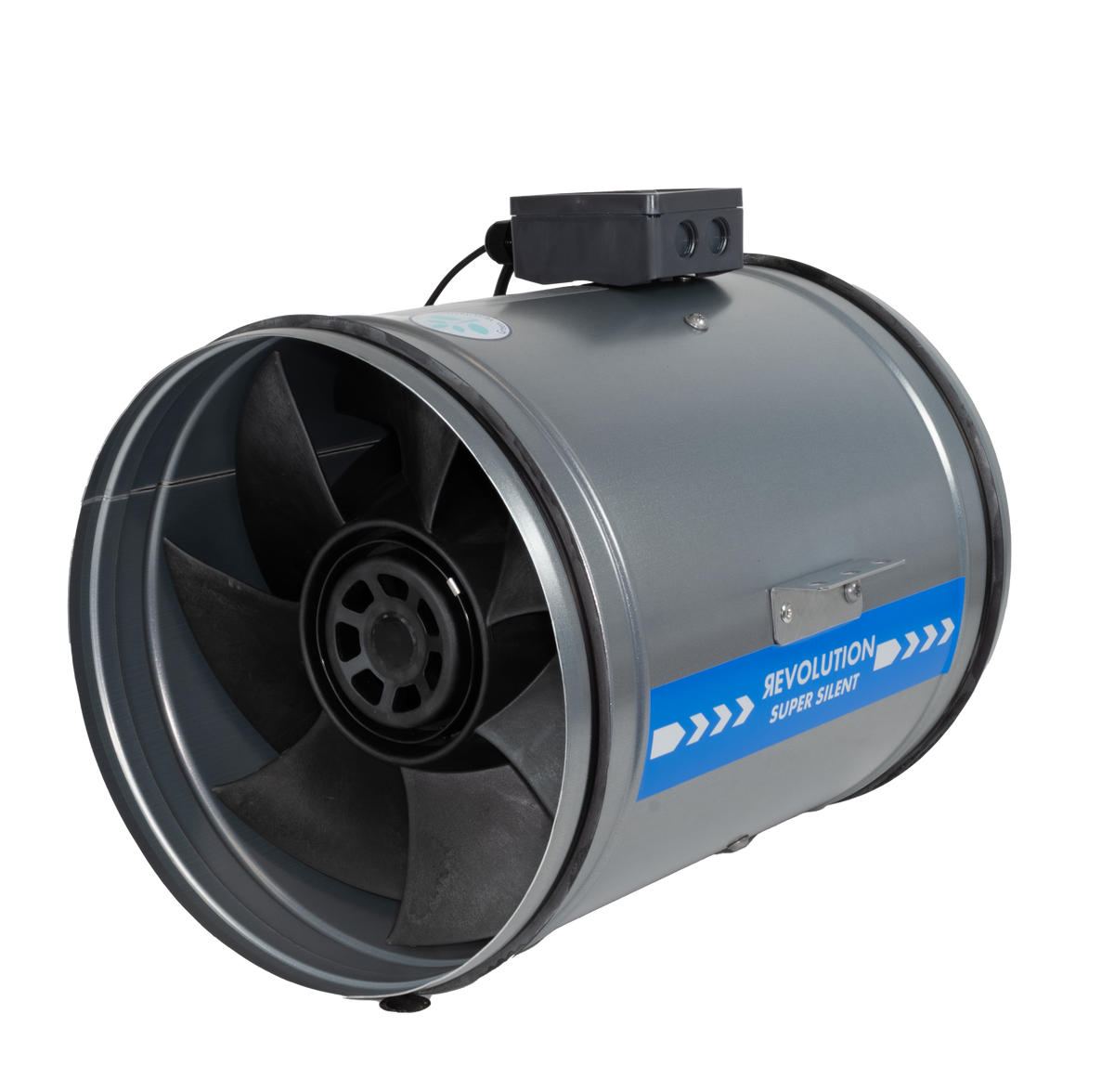

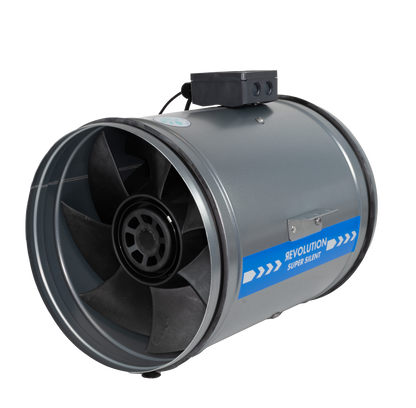

- Airflow, 315mm (12"): 3,784 m³/h
- Motor: energy-efficient EC, speed-controllable

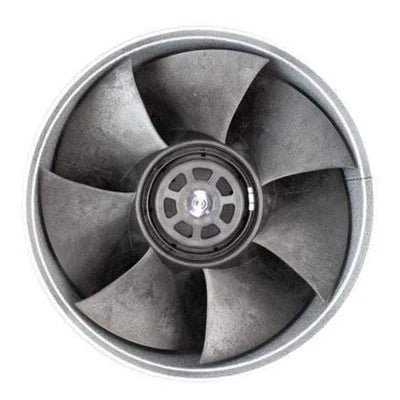

- Impeller: aerodynamically optimised with guide vanes
- Housing: sealed steel, low-leak
- Compatibility: G.A.S Enviro V2 and other EC controllers
- Airflow with filter, 315mm (12"): 2,800 m³/h
- Airflow with filter, 355mm (14"): 4,250 m³/h
- Power, 315mm (12"): 528 W
- Power, 355mm (14"): 738 W
- Pressure drop with filter, 315mm (12"): 290 Pa
- Pressure drop with filter, 355mm (14"): 300 Pa

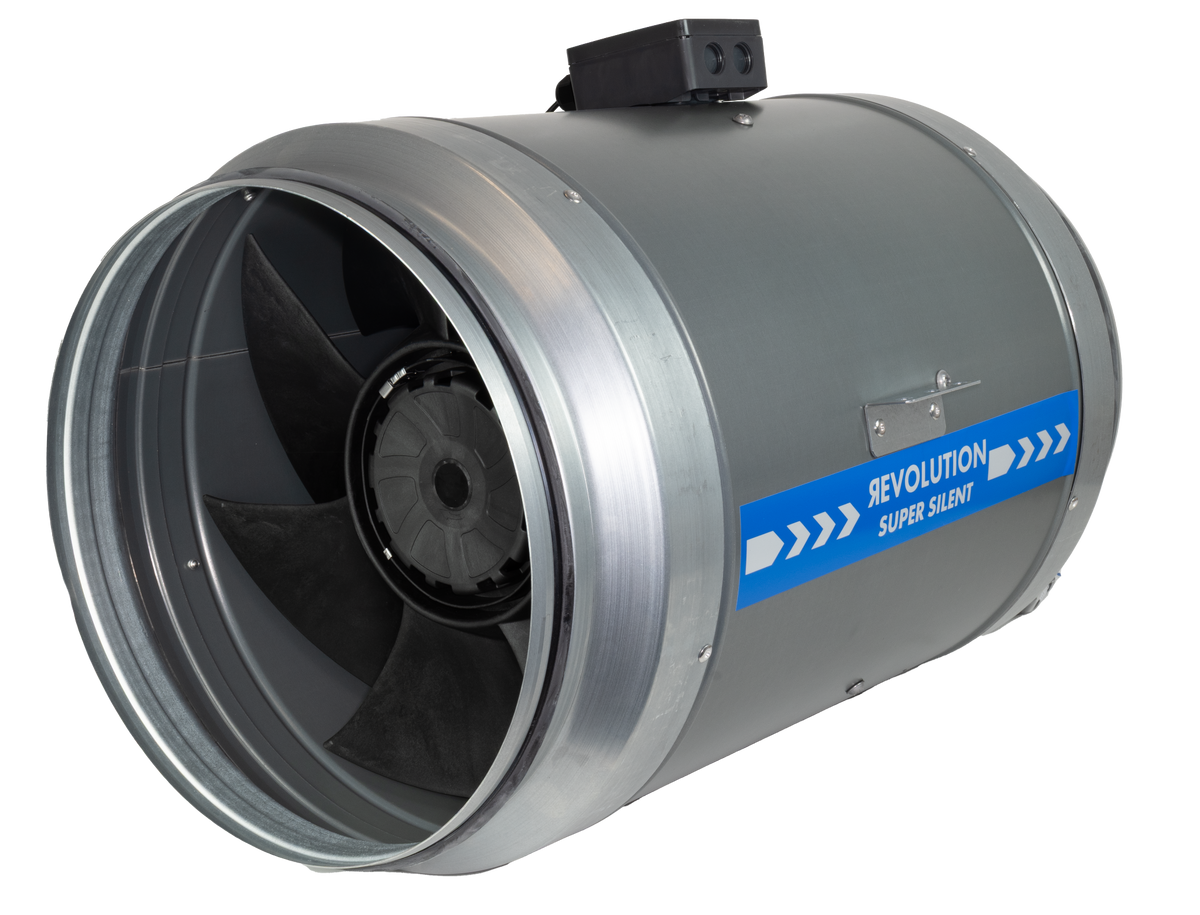

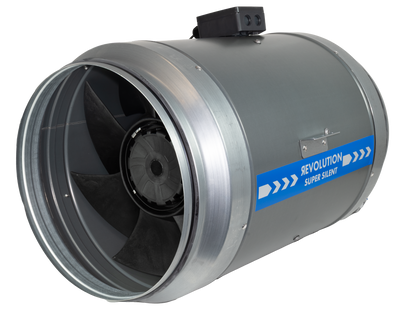

- Airflow, 355mm (14"): 5,929 m³/h
