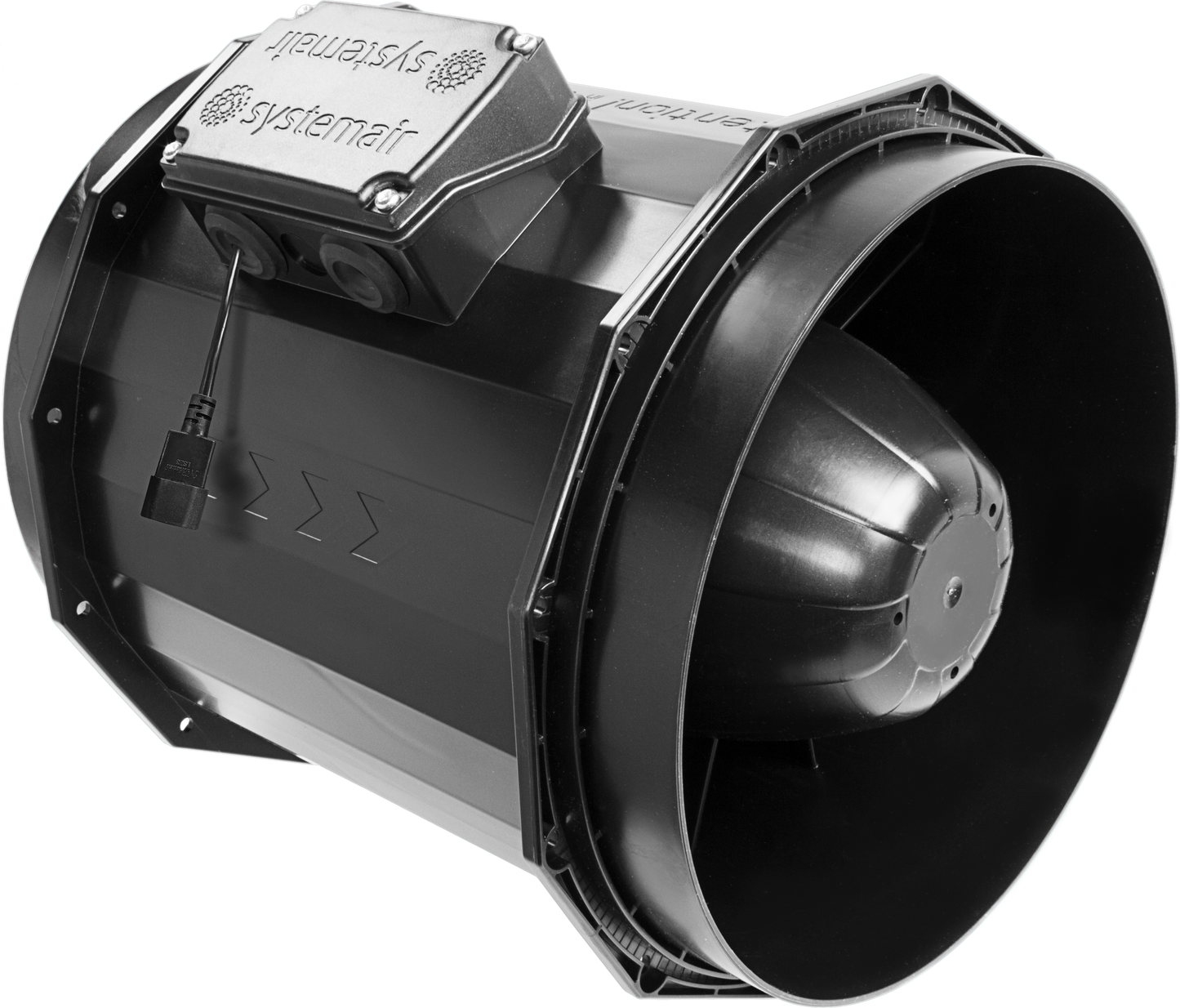

Revolution AC Stratos Inline Extractor Fan – Non-Silenced
Revolution AC Stratos Inline Extractor Fan – Non-Silenced
In stock
Order by 3pm Mon–Fri — we aim to post same day · FREE Express Delivery over £60 · 1–2 working days · Free Wembley pickup
Pairs well with
-
SMSCom 6.5A Single Fan Speed Controller – Plug and PlaySMSCom 6.5A Single Fan Speed Controller£34.49
Description
German-built AC extraction that moves serious air quietly

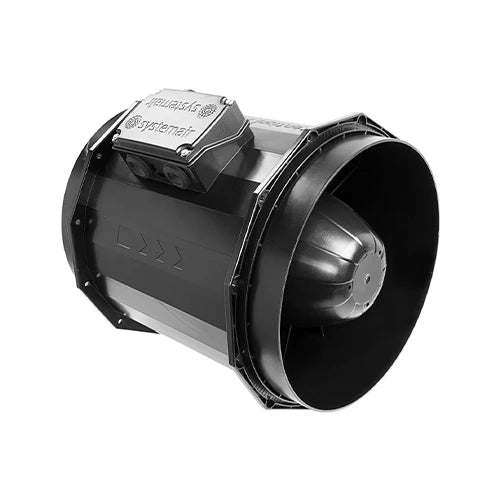

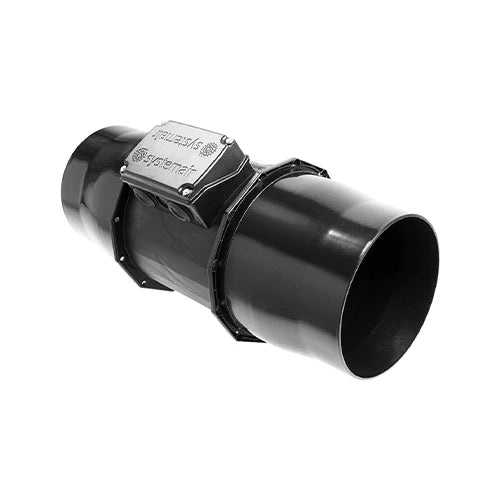

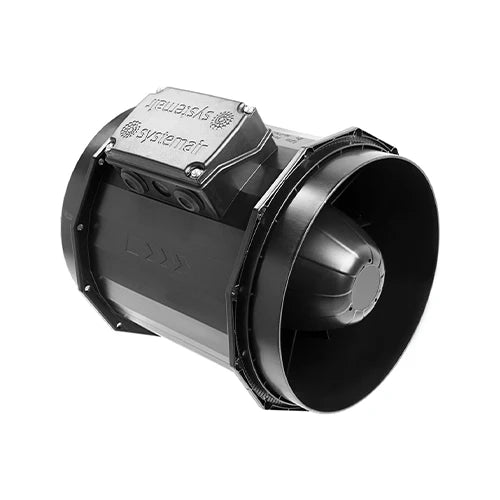

The Revolution AC Stratos is the non-silenced, high-output inline extractor in Systemair's Revolution range, trusted by indoor growers for reliable ventilation and low noise. A flow-optimised free-running axial impeller and sealed 230V AC motor push large volumes of air with minimal pressure loss, even pulling through a carbon filter, so temperature, humidity and CO2 stay stable inside a grow tent or grow room. Three duct sizes — 150mm, 200mm and 250mm, sold by G.A.S as 150 AC, 200 AC and 250 AC — cover everything from a single tent to a good-sized grow room, with up to 2,038 m³/h on the 250mm.
Key Benefits
- Up to 2,038 m³/h on the 250mm, with 150mm and 200mm sizes for smaller spaces
- Holds airflow under load — still moves 710 m³/h on the 200mm and 1,660 m³/h on the 250mm with a carbon filter attached
- Quiet, low-vibration running from a balanced, flow-optimised plastic impeller
- Sealed motor housing with thermal overload protection for long-term reliability
- Speed controllable — works with any standard AC fan speed controller
- German build quality for consistent output and a long service life
Beat rising heat, humidity and stale air
Weak ventilation lets temperature and humidity climb and air turn stale, which slows vegetative growth, cuts nutrient uptake and invites mould in flower. The Stratos continuously extracts warm, humid air while drawing in fresh CO2-rich air, stabilising the environment for strong transpiration and denser buds; paired with a carbon filter it also scrubs odour without choking airflow.
How to Use
- Fit the fan into your tent or room extraction line, near the top where heat gathers.
- Hang it from the built-in brackets or suspend on straps to isolate vibration.
- Connect ducting and your carbon filter with duct clamps, keeping bends to a minimum.
- Power it through an AC fan speed controller to dial in the right extraction rate.
- Balance intake and extraction to hold slight negative pressure and a steady climate.
Technical Specifications

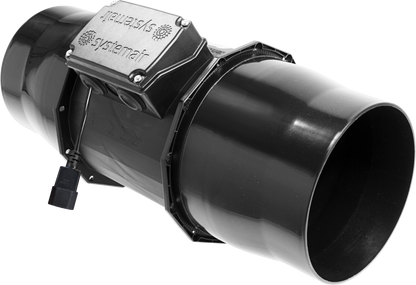

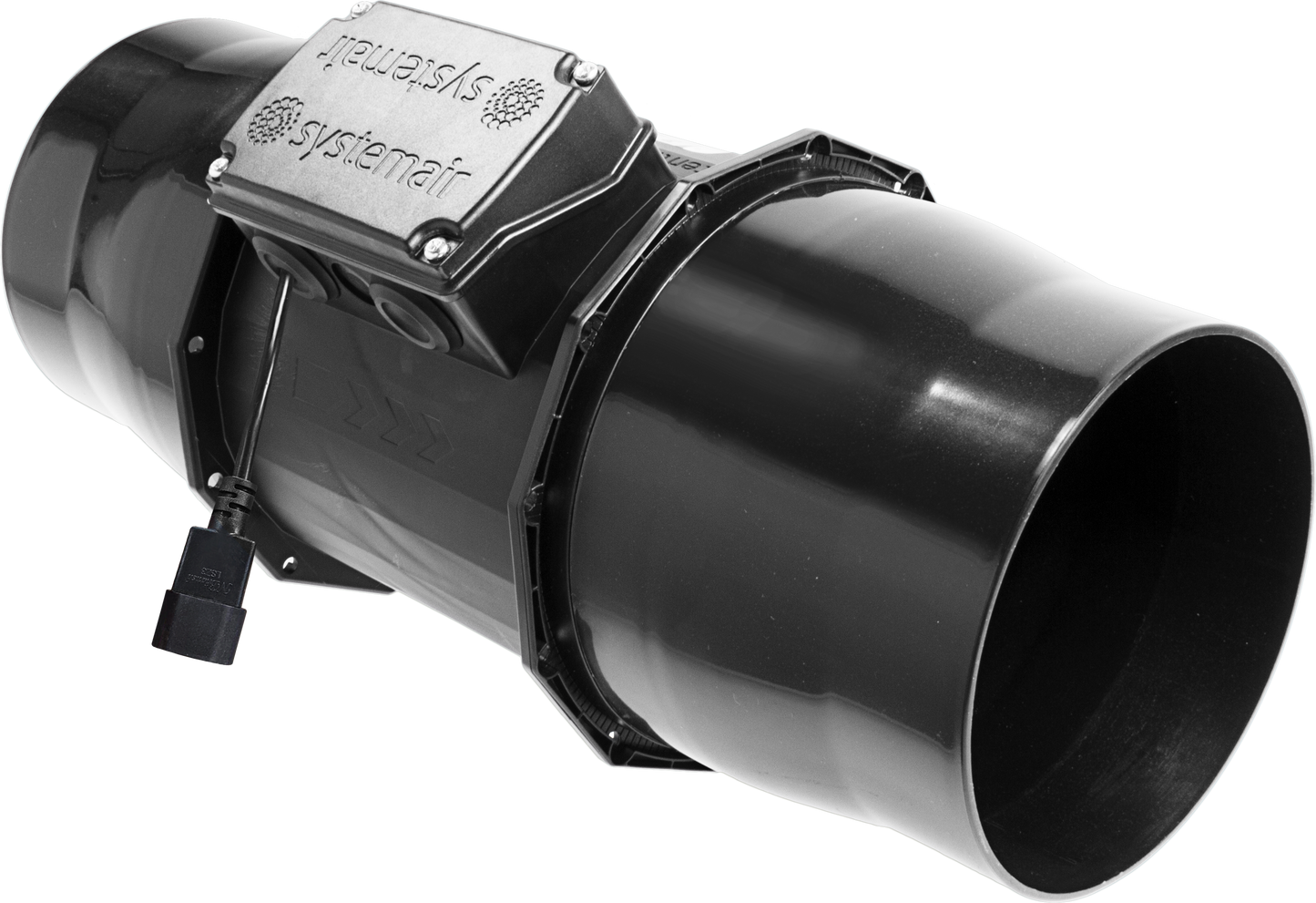

- Available sizes: 150mm (6"), 200mm (8") and 250mm (10") — sold by G.A.S as 150 AC, 200 AC and 250 AC

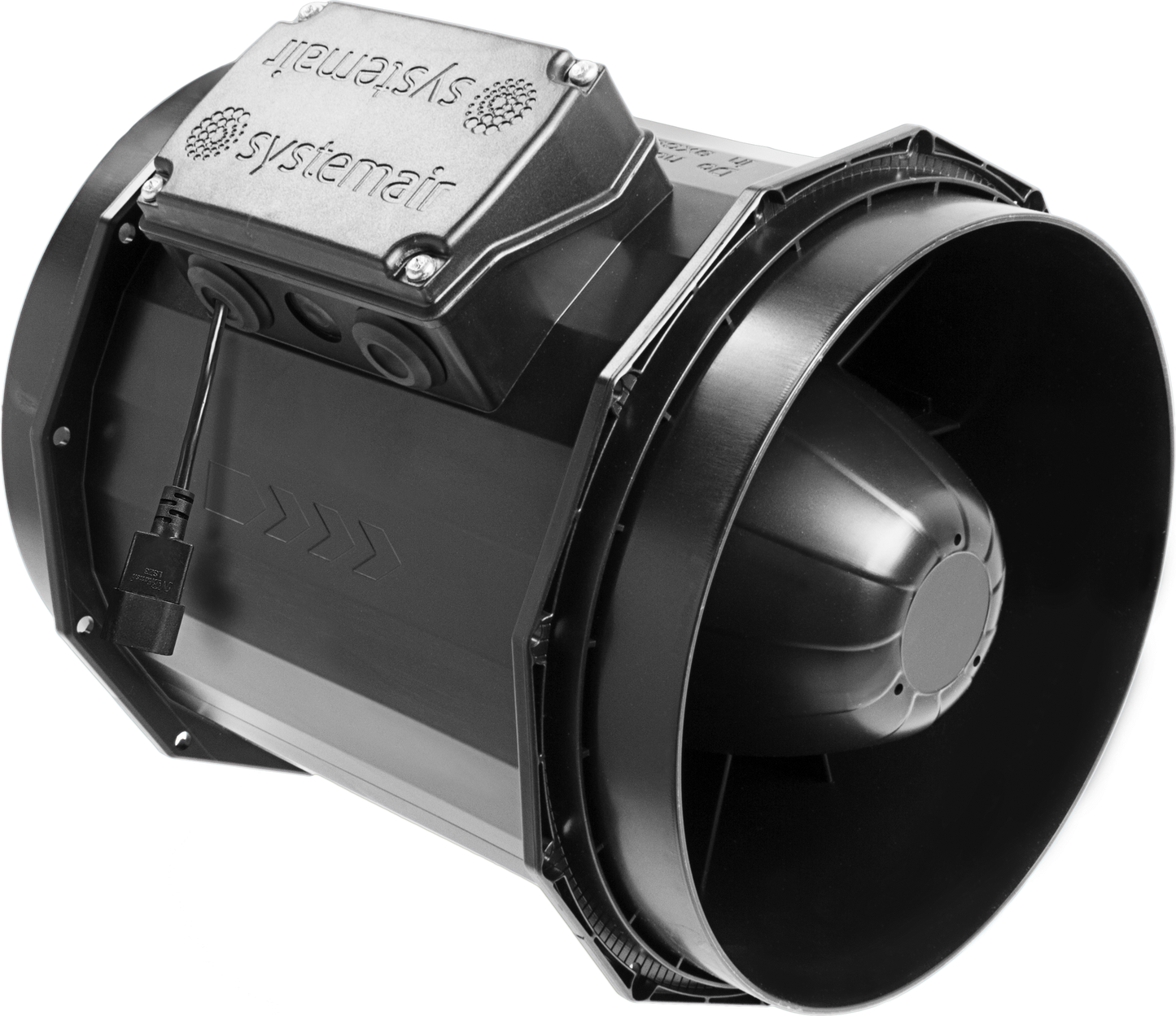

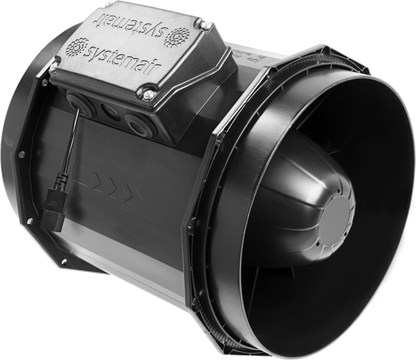

- Airflow, 200mm (8"): 947 m³/h

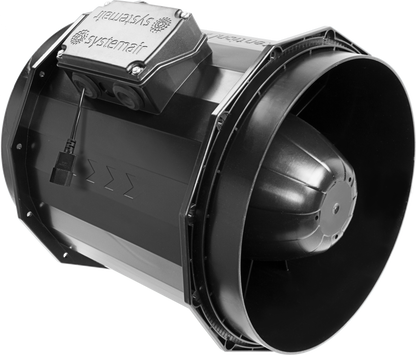

- Airflow, 250mm (10"): 2,038 m³/h
- Airflow with carbon filter: 710 m³/h on the 200mm, 1,660 m³/h on the 250mm
- Static pressure: up to 180 Pa
- Voltage: 230V AC
- Impeller: free-running balanced plastic axial
- Motor protection: thermal overload cut-out
- Speed control: compatible with AC fan speed controllers
- Origin: made in Germany
