Description
Central control of intensity, scheduling and heat safety

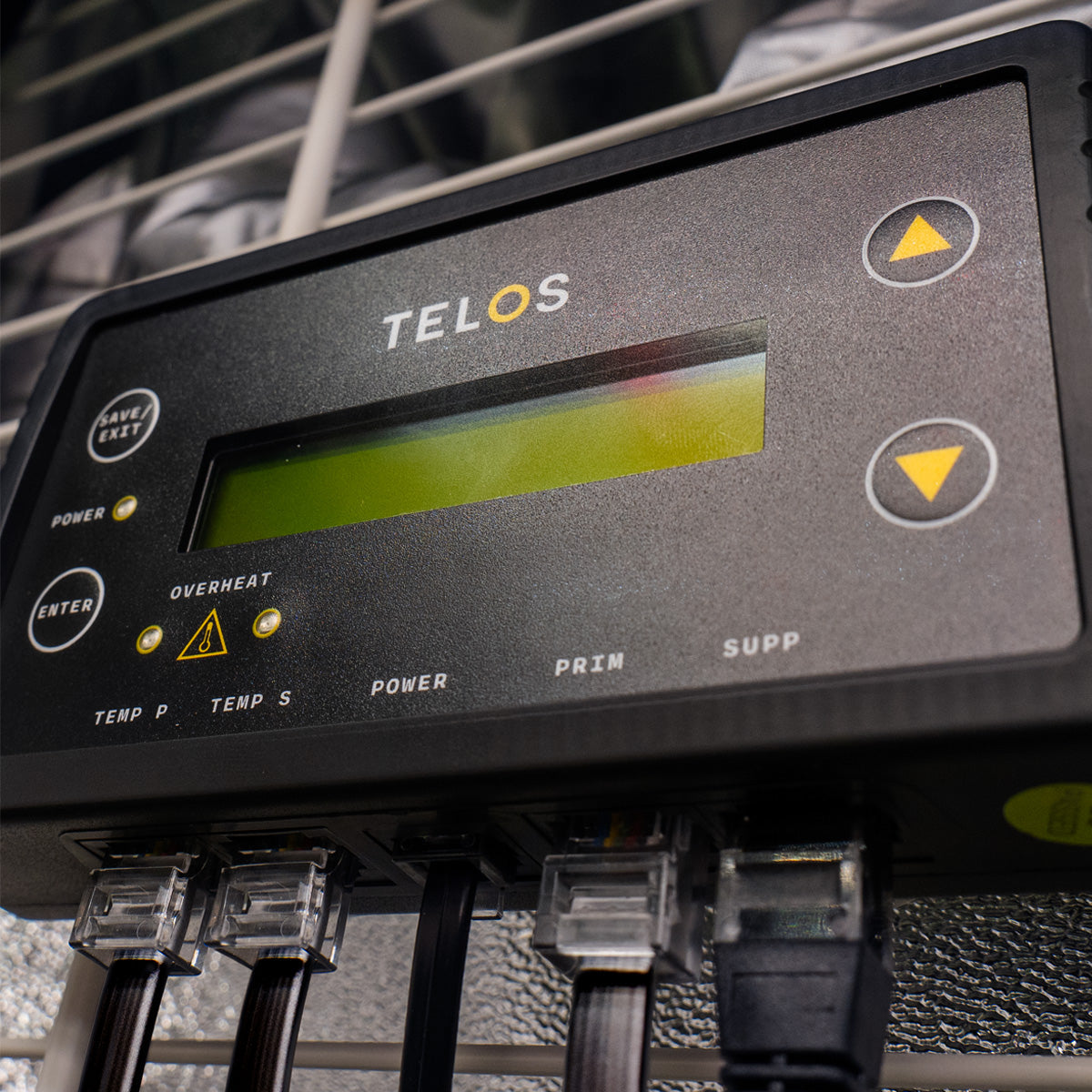

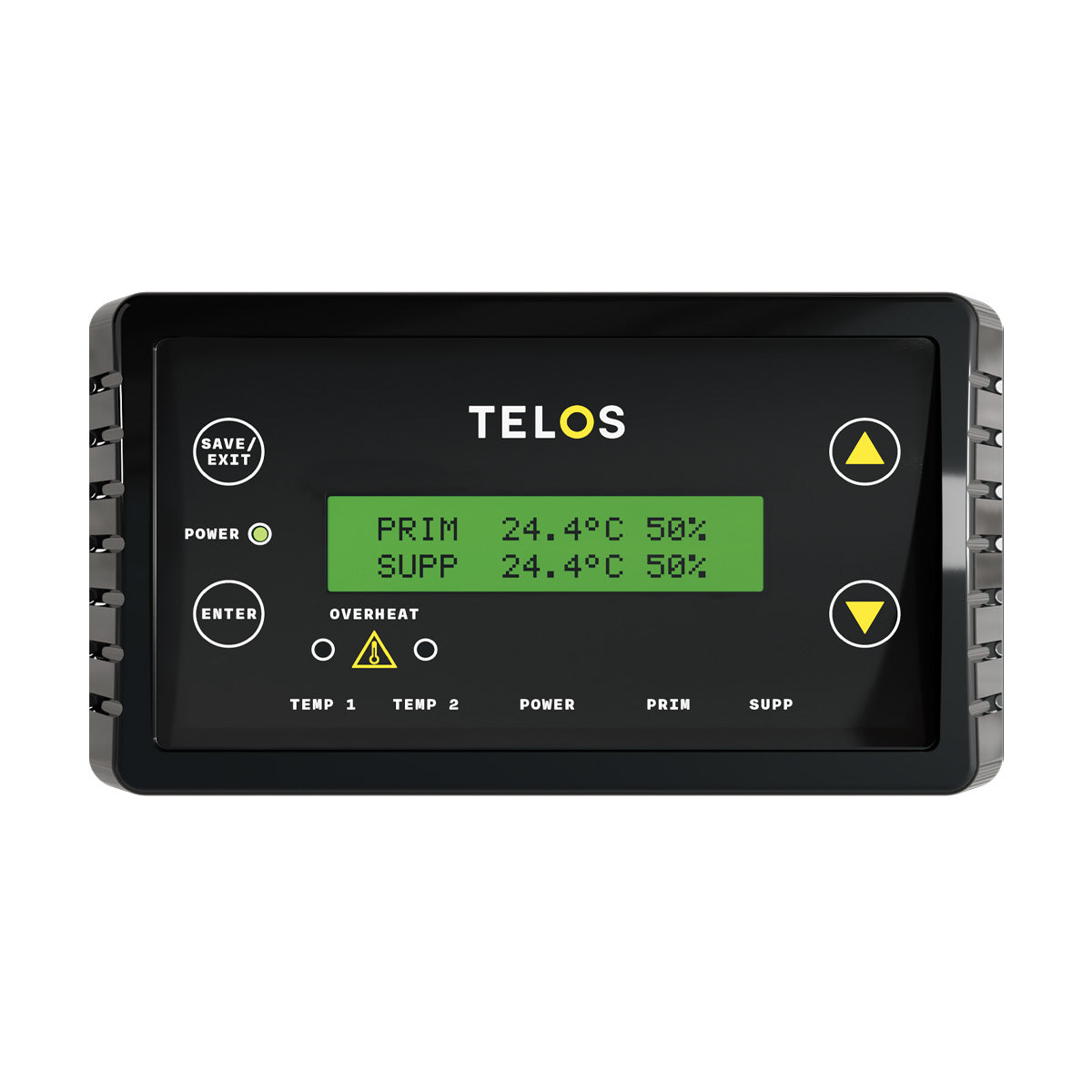

The Telos Lighting Controller manages any 0–10V dimmable fixture, which means mixed rooms running LED, HPS and UV can all be driven from one unit. It has dual-channel outputs so two zones or fixture types can run independently, a canopy temperature probe that automatically dims or shuts down the lights if the room gets too hot, and a sunrise and sunset ramping mode that raises and lowers intensity gradually rather than switching hard. Fixtures connect via RJ45, and with the Telos Dimming Link Kit up to 24 fixtures can be synchronised. No Wi-Fi and no app needed.
Key Benefits
- Universal 0–10V control - works with LED, HPS and UV fixtures from any manufacturer.
- Two independent channels - run separate zones or fixture types on different settings.
- Temperature safety - auto-dims or shuts down if canopy temperature climbs too high.
- Sunrise and sunset ramping - smooth intensity changes instead of an abrupt on/off.
- Scales to 24 fixtures - daisy-chain with the Telos Dimming Link Kit for a whole room.
- No app dependency - hardware controls with no Wi-Fi, account or connection to lose.
Why Inconsistent Light Levels Cost You
Modern LEDs can push far more intensity than a plant can use, and manual dimming means the setting only changes when someone remembers to change it. Meanwhile a hot afternoon can take a canopy past the point where extra light does any good at all. A controller holds intensity where you set it, ramps it in and out gently, and pulls it back automatically when temperature says it should — so conditions stay predictable from one day to the next.
How to Use
- Mount the controller somewhere dry and accessible, then connect power.
- Hang the temperature probe at canopy height for an accurate reading.
- Wire fixtures directly via RJ45, or daisy-chain them with the Dimming Link Kit.
- Assign fixtures to channel one or channel two.
- Program your schedule, ramp times and temperature limit — around 28–29°C is a sensible ceiling.
Specifications
| Product Type | 0–10V lighting controller |
|---|---|
| Compatibility | Any 0–10V dimmable fixture — LED, HPS and UV |
| Channels | 2 independent output channels |
| Connection | RJ45 |
| Maximum Fixtures | Up to 24 with the Telos Dimming Link Kit |
| Safety | Canopy temperature probe with auto-dim and shutdown |
| Modes | Sunrise and sunset ramping |
| Connectivity | Standalone — no Wi-Fi or app required |
