Description
Aeroponic Growing With One Pump, Not a Wall of Kit

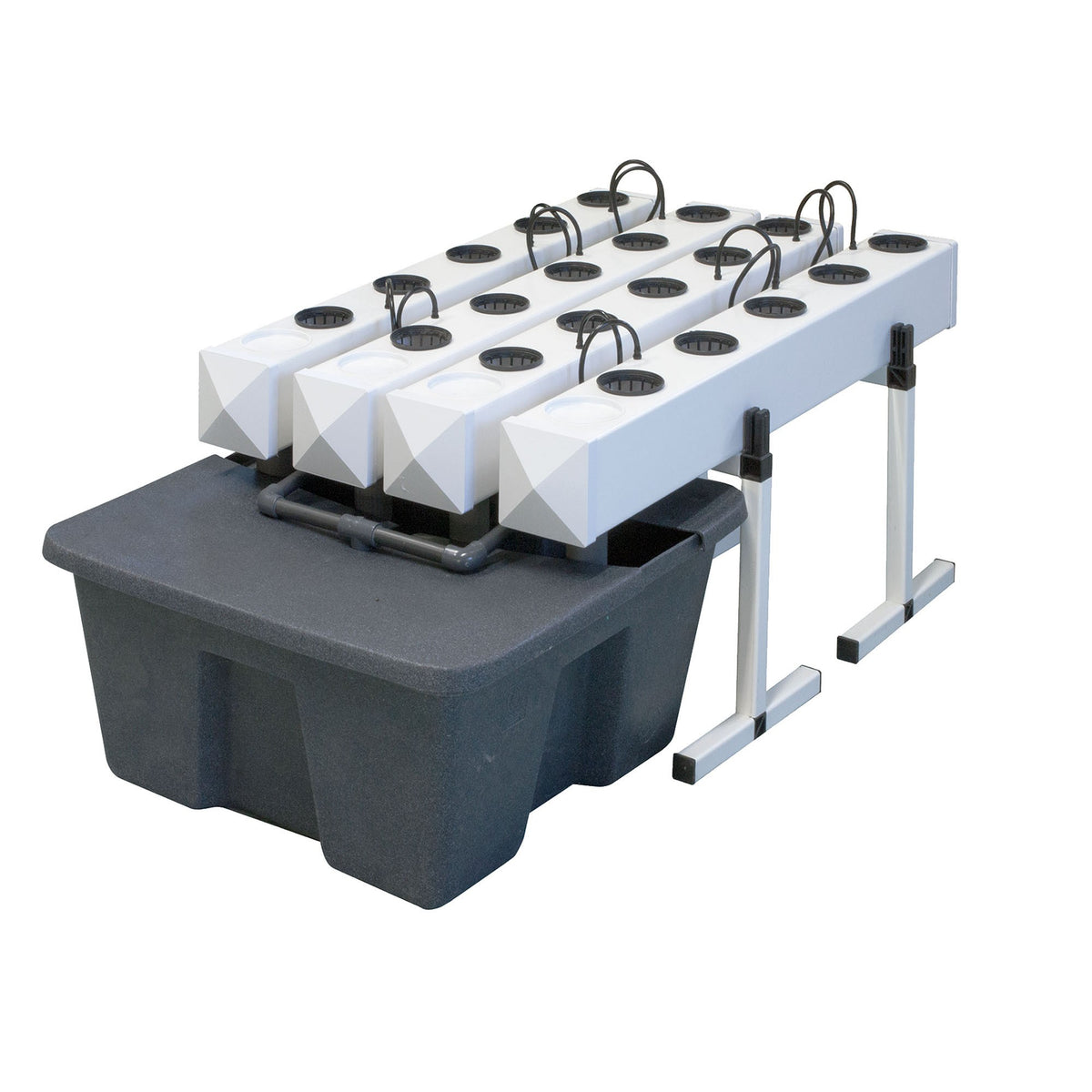

The Terra Aquatica AeroFlo 20 (originally launched as the GHE AeroFlo 20) is a substrate-free aeroponic system built for growers who want the speed of aeroponics without extra air pumps or controllers to manage. Across its 20 growing sites, roots hang free in the flood channel while a single submersible pump lifts nutrient solution from the 90-litre reservoir and injects it along the tray at set intervals, so every net pot gets a steady pulse of highly oxygenated feed rather than a static soak. The solution then falls back down the downpipe, oxygenating the reservoir as it drains, which keeps pH and nutrient strength more stable between changes than in many DWC set-ups. It uses the same working principle as GHE's commercial installations worldwide, scaled down for a single grow room or greenhouse bay.
Key Benefits
- 20 growing sites across the flood channel for a full row of plants from one unit
- Single water pump operation - no extra air pumps or humidity controllers needed to run it
- Highly oxygenated root zone from the aeroponic misting action, supporting rapid root development
- Self-oxygenating reservoir as the return flow drains back through the downpipe
- UV and light-shielded reservoir to keep light off the roots and algae out of the nutrient solution
- Two-part construction for easy access to the reservoir and root zone during the grow
- Low running cost - one pump to power instead of multiple aeration devices
How to Use
- Assemble the tray, support frame and reservoir according to the supplied instructions.
- Fit a net pot at each of the 20 sites and set your rooted cuttings or seedlings in place.
- Fill the reservoir with fresh water and mix in your hydroponic nutrients.
- Run the pump continuously, or on a short-cycle timer, so the injectors keep misting the root zone.
- Maintain the solution at the correct EC for the growth stage and a pH of 5.5-6.2.
- Top up the reservoir as it draws down and replace the solution every 1-2 weeks for consistent feeding.
Technical Specifications
- System type: Substrate-free aeroponic system
- Plant capacity: 20 sites
- Reservoir capacity: 90 litres
- Footprint: approx. 130 x 73 x 47cm
- Includes: Growing tray with 20 net pot sites, reservoir, water pump, drip manifold and support frame
- Power draw: Single submersible water pump only - no separate air pump required
- Construction: UV and light-shielded reservoir, two-part design for easy access
