Top Spin Dripper Kit 16mm (1/2ins) Low Pressure

Top Spin Dripper Kit 16mm (1/2") Low Pressure

The Top Spin Dripper Kit is a low-pressure drip irrigation system designed to automate feeding in hydroponics and indoor growing setups. Instead of hand watering individual pots, this system delivers nutrient solution directly to each plant through pressure-regulated drippers, ensuring consistent moisture and nutrient delivery across your grow room.

By feeding plants little and often, the system improves nutrient uptake and root development while reducing the risk of dry spots or overwatering. Suitable for soil, coco, clay pebbles and rockwool, the kit can be configured to suit different grow tent layouts and easily expanded if your indoor growing setup grows. With a single nutrient reservoir feeding multiple plants, it provides a practical solution for growers looking to reduce workload while improving plant health, flowering performance and overall yield.

Key Benefits

• Automated feeding system for hydroponics and indoor growing
• Pressure-regulated drippers ensure even nutrient distribution
• Encourages stronger root development and better nutrient uptake
• Suitable for coco, soil, clay pebbles and rockwool
• Reduces daily hand watering in busy grow rooms
• Supports consistent vegetative growth and stronger flowering
• Expandable layout for different grow tent or grow room sizes

How It Solves Grow Problems

Hand watering multiple plants often leads to inconsistent feeding, uneven moisture levels and missed irrigation cycles. This can cause slow vegetative growth, weak root systems and poor nutrient uptake.

The Top Spin Dripper Kit solves this by delivering a steady, controlled supply of nutrient solution directly to each plant. Feeding little and often helps stabilise the root zone, encouraging healthier roots and improving plant health throughout the vegetative and bloom stage. It also reduces labour in larger hydroponic systems where maintaining consistent watering by hand becomes difficult.

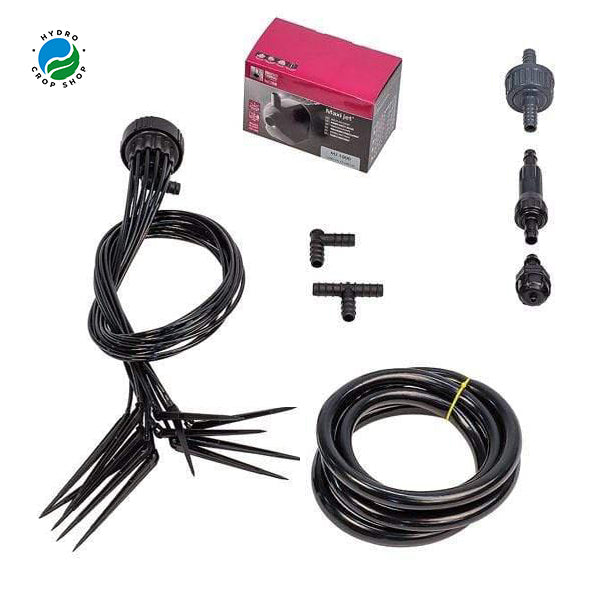

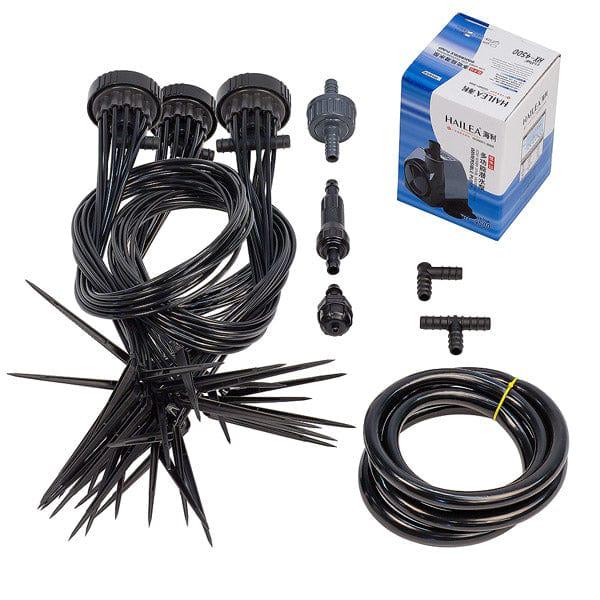

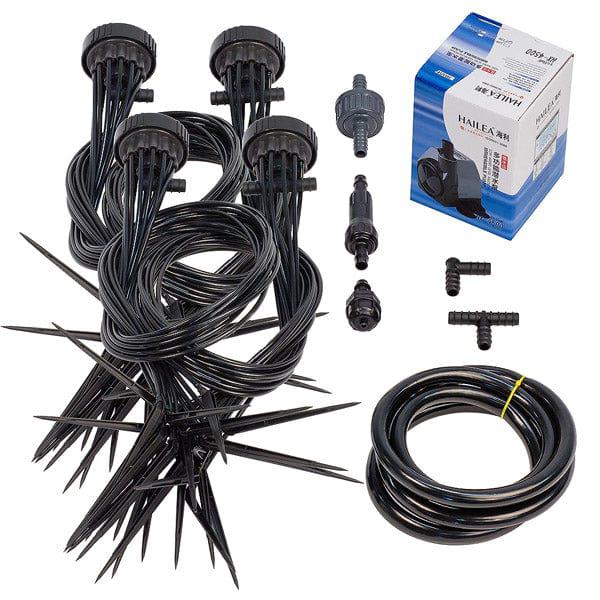

Kit Contents

• Maxijet MJ1000 pump (for 6–12 plant setups) or Hailea HX8820 pump – 2000 L/h (for 12–48 plant setups)
• TopSpin dripper manifold with 16mm barbed elbow
• 16mm flexi supply tube
• 16mm barbed elbow fitting
• 16mm barbed tee fitting
• 16mm barbed non-return valve
• 16mm inline filter
• Anti-siphon valve

Flexi tube length varies by kit size

• 4m tubing – 6–12 plant and 12–24 plant kits
• 5m tubing – 18–36 plant kit
• 6m tubing – 24–48 plant kit

How to Use

1. Fill your nutrient reservoir with the correct hydroponic nutrient solution.

2. Place the pump inside the reservoir and connect the 16mm supply tube.

3. Install the inline filter, non-return valve and anti-siphon valve in the feed line.

4. Connect the Top Spin manifolds and run dripper lines to each plant.

5. Position one or two drippers around the base of each plant for even watering.

Feeding guidance

• For soil or coco: feed until around 30% runoff and discard excess nutrient solution (run-to-waste recommended).
• For clay pebbles: run a recirculating system with drippers operating during the full light cycle and once for around 15 minutes during the dark cycle.
• Top up the reservoir regularly with diluted nutrient solution and replace the full solution weekly.

Coverage Guide

• 6–12 plants – up to 1200 × 1200mm grow area
• 12–24 plants – up to 1200 × 2400mm grow area
• 18–36 plants – up to 1200 × 3600mm grow area
• 24–48 plants – up to 2400 × 2400mm grow area
