315w Horizon Remote CDM Lighting Kit

The 315W Horizon Remote CDM Lighting Kit is designed for growers who want broader light coverage and improved plant development in indoor growing environments. Featuring the Maxibright Horizon Connect wide-angle reflector, this system spreads light outward across the canopy rather than concentrating it directly below the fixture. This wider distribution helps replicate natural outdoor lighting conditions, encouraging faster growth, healthier plants, and improved flowering performance.

This kit includes a 315W Maxibright Daylight CDM ballast, a Maxibright Horizon reflector, and an Elite 942 Veg 315W CDM lamp. The remote ballast design allows the ballast to be placed outside the grow tent or grow room, helping reduce heat around the canopy while maintaining stable lighting performance.

With a broad CMH spectrum that includes UVA and UVB, this lighting system promotes stronger vegetative growth, improved nutrient uptake, and enhanced bud development during the flowering stage. The wide-angle reflector is particularly effective when used as supplemental lighting between HPS fixtures, improving canopy penetration and helping increase yield quality across hydroponics, coco, or soil growing setups.

Key Benefits

• Wide-angle reflector spreads light evenly across the canopy
• Broad CMH spectrum including UVA and UVB for improved plant development
• Elite 942 veg lamp supports vigorous vegetative growth
• Remote ballast design helps reduce heat inside the grow tent
• Encourages bushier plants with stronger branching and flowering sites
• Improves bud quality, aroma, and overall crop yield
• Suitable for hydroponics, coco, soil, and indoor growing systems
• Can be used as standalone lighting or supplemental lighting

Technical Specifications

• Lamp: Elite 942 Veg 315W CDM lamp
• Ballast: Maxibright Daylight 315W CDM ballast
• Reflector: Maxibright Horizon Connect wide-angle reflector
• Coverage area: up to 1.2 m x 1.2 m at 400 mm height
• Lighting technology: Ceramic Metal Halide (CMH/CDM)

How It Solves Grow Problems

Many indoor growers experience uneven canopy lighting, where top leaves receive most of the light while lower growth remains shaded. The Horizon reflector solves this by spreading light across a wider area and directing it at plants from multiple angles.

This improved light distribution helps reduce excessive stretch and encourages fuller plant structure with more flowering sites. The added UVA and UVB wavelengths also support stronger plant health and improved bud density, helping growers achieve better yields and higher crop quality in hydroponic systems, coco, or soil grow rooms.

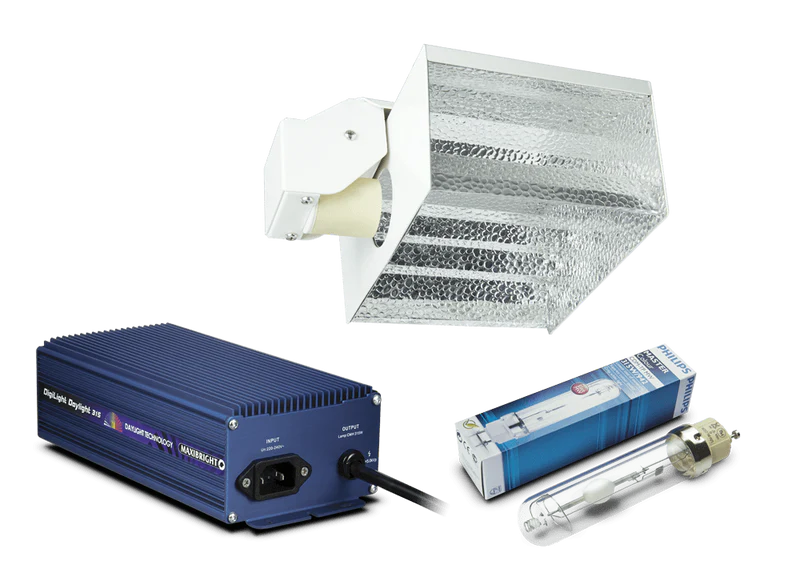

Kit Contents

• Maxibright Daylight 315W CDM ballast
• Maxibright Horizon Connect wide-angle reflector
• Elite 942 Veg 315W CDM lamp
• Connection leads

How to Use

1. Install the Elite 315W CDM lamp securely into the Horizon reflector socket.

2. Hang the reflector above the canopy using adjustable hangers.

3. Place the Maxibright Daylight ballast outside the grow tent or grow room where possible to reduce heat.

4. Connect the reflector to the ballast using the supplied leads.

5. Plug the ballast into a suitable power supply.

6. When first using the lamp, run it continuously for at least 15 minutes to allow the internal metals to fuse correctly.

7. Position the reflector approximately 400 mm above the canopy for optimal coverage and adjust as plants grow.
