Description
A 6m² Titan Grow Room That Fits Under a Standard Ceiling

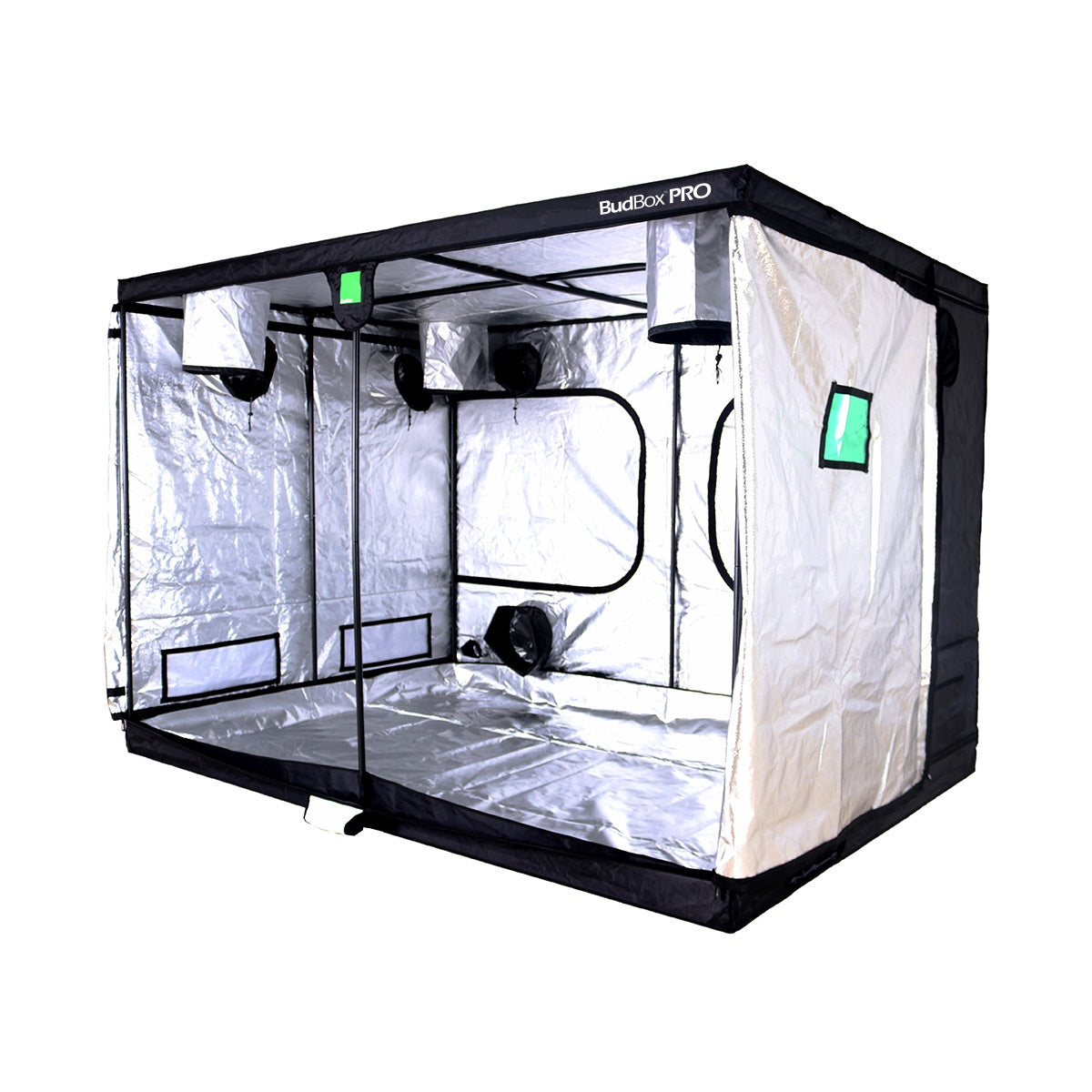

The BudBox Pro Tent 200x300x200cm is BudBox's Titan 1 Plus - the 2m x 3m rectangular Titan at the standard 200cm height, for garages, outbuildings and spare rooms where the 220cm HighLine version will not stand. It is built on 25mm tempered, high-tensile steel poles with a black powder-coated finish and all-metal push/click corners, leaving a clear 6.0m² floor with no cross poles. A room this size lives or dies on airflow: heat from several lights and moisture from a full canopy build up quickly, and humidity collects in the corners. Twelve large extraction ports, four screened passive vents and eight doors let you move air and reach every plant without stepping over the canopy, while the silver Mylar lining and double-stitched, light-proof canvas keep the dark period dark.
Key Benefits
- 25mm tempered steel frame with all-metal push/click connectors carries heavy lights and carbon filters across the full 6.0m²

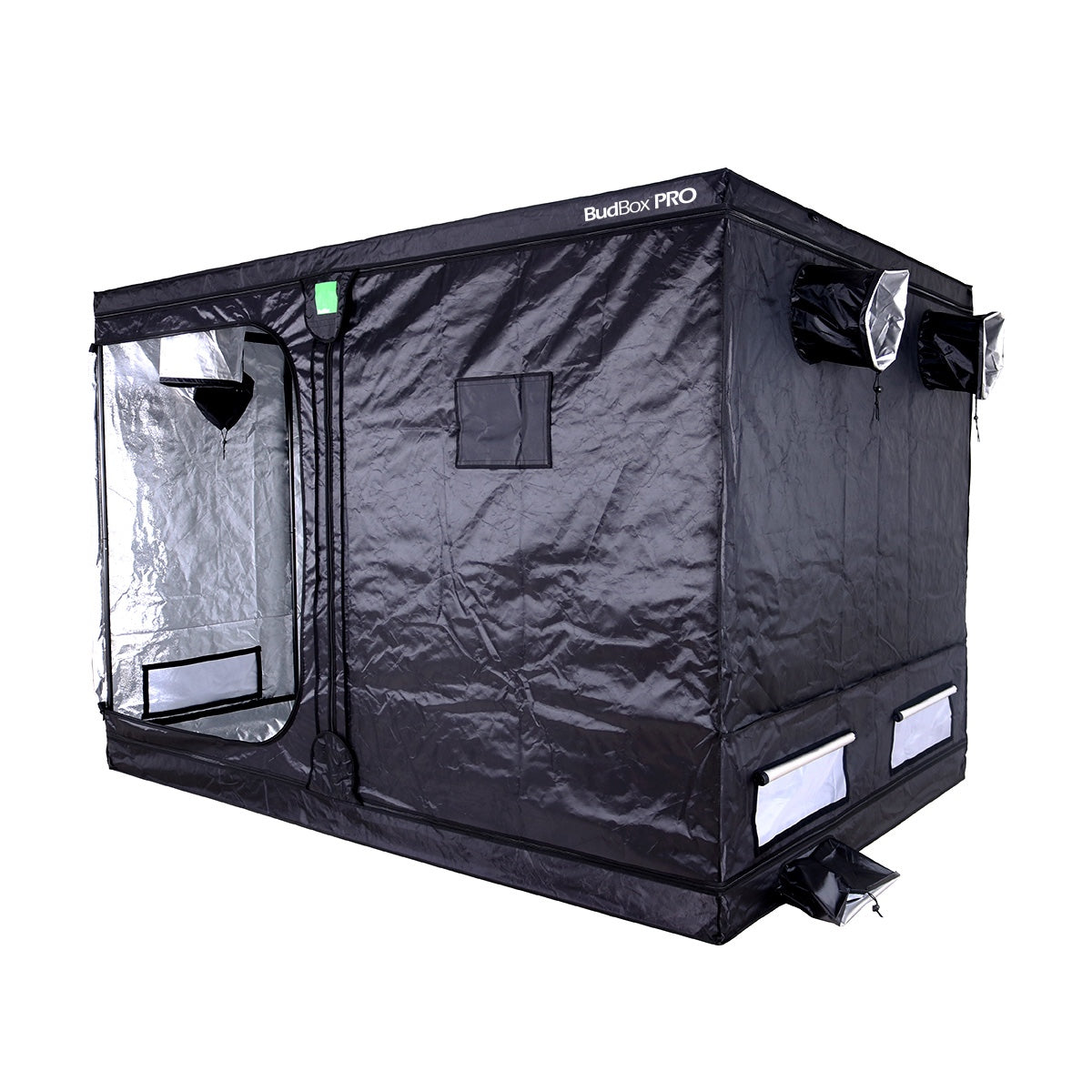

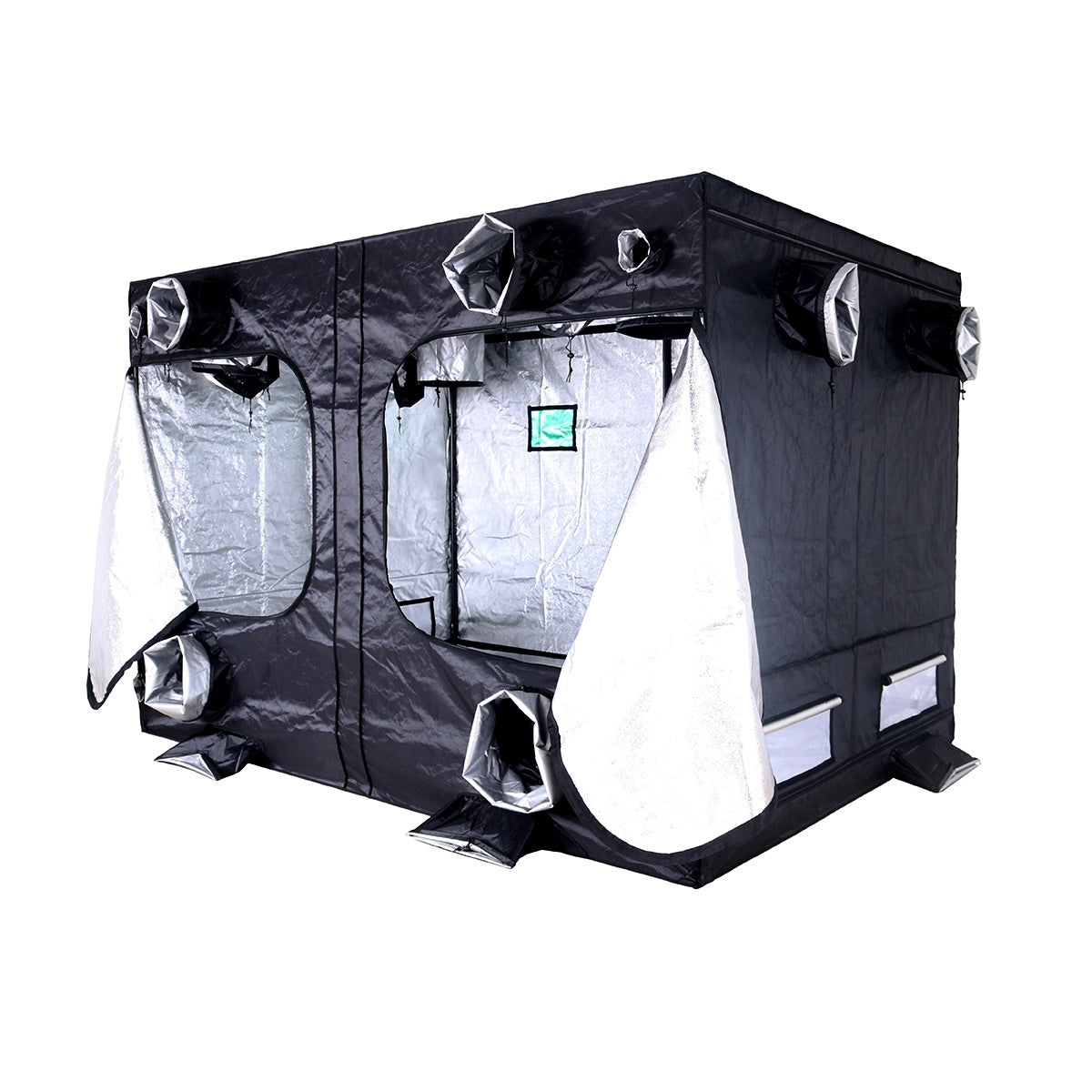

- 8 doors - 2 front main, 1 front access, 4 side access and 1 rear - so every corner of the canopy is within reach
- 6 x 340mm and 6 x 275mm ports, 20% oversized and double-cuffed, for several extraction and intake runs or insulated ducting
- Uplift irrigation bar and 4 irrigation ports keep feed lines flat on the floor so the reservoir can stand outside the tent
- Green night-vision viewing window to check plants during the dark period without opening a door
- 6 roof hanging bars with 12 silicone pads and 6 hanging straps cut vibration from fans and filters
- Canvas unzips completely for set-up, cleaning and dismantling, and packs into a heavy-duty carry bag
How to Use
- Assemble the frame where the tent will stand - the poles push and click into the metal corners without tools - then pull the canvas over from the top and fit the drip tray.
- Hang lights, the carbon filter and circulation fans from the six roof bars on rope ratchets so you can raise the lights as the plants grow.
- Lay the room out as two zones along the 3m length, each with its own lights, so the whole canopy gets an even spread.
- Extract through a 340mm or 275mm port high on the tent and draw fresh air in low through the passive vents or a lower port; pull both cuffs tight around the ducting.
- Run irrigation and drain lines through the irrigation ports under the uplift bar, keeping cables in the 100mm ports away from the water.
Technical Specifications

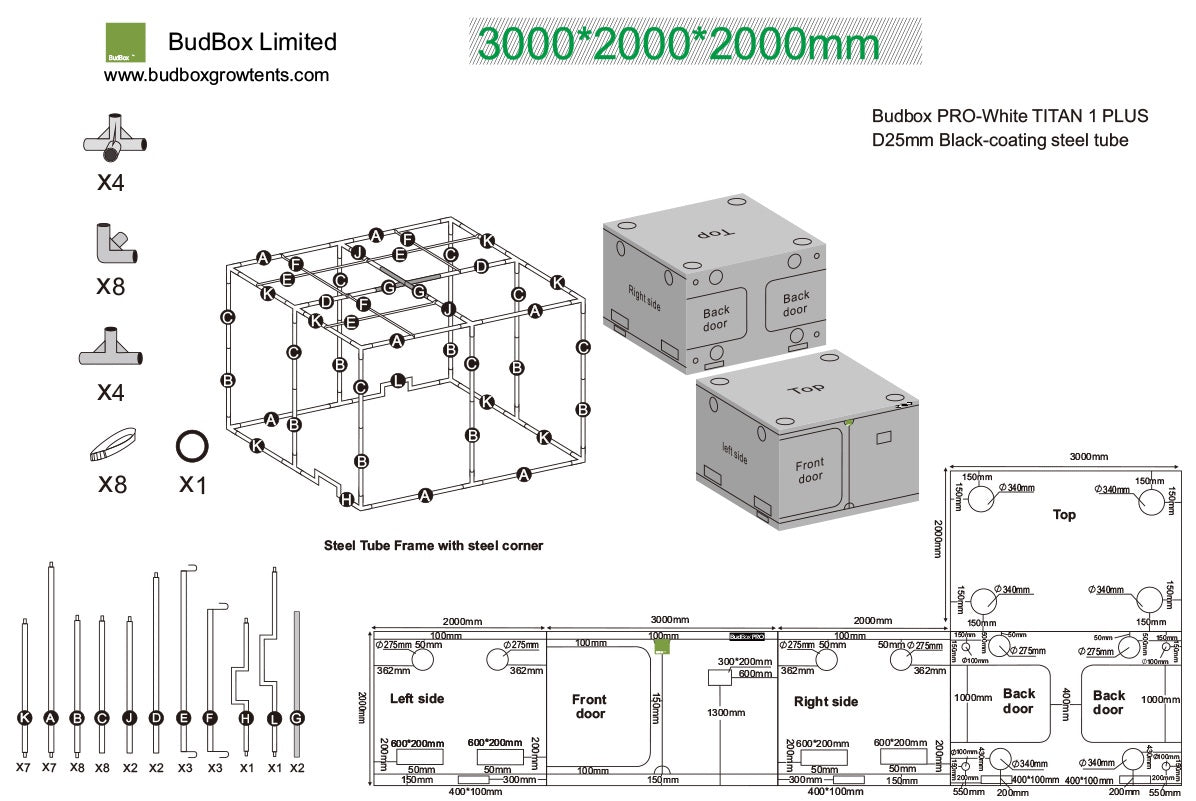

- Dimensions (cm): 200 x 300 x 200
- Frame: 25mm steel poles, metal push/click corners
- Fabric: Canvas, double-stitched seams
- Lining: Mylar (silver)
- Model: BudBox Pro Titan 1 Plus (standard height)
- External dimensions: 200cm x 300cm x 200cm (6'6" x 10' x 6'6")
- Footprint: 6.0m²
- Doors: 2 x front main doors, 1 x front access door, 4 x side access doors, 1 x rear access door
- Ports: 6 x 340mm, 6 x 275mm, 4 x 100mm cable ports, 4 x irrigation ports - all double-cuffed, vents 20% oversized
- Passive vents: 4 x micro-mesh screened
- Roof: 6 hanging bars, 12 silicone pads, 6 hanging straps
- Fittings: green night-vision viewing window, uplift irrigation bar, drip tray, main door clips
- Assembly: tool-free push/click frame; canvas unzips fully on three sides
Frequently Asked Questions
How does this differ from the 200x300x220cm Titan 1 Plus HL?
The doors, ports, frame and fittings are the same. The HL (HighLine) model is 220cm tall for extra clearance above the lights; this one is 200cm, so it fits rooms with a lower ceiling and leaves space above for ducting.
Does the silver Mylar lining run warmer than BudBox PRO White?
Yes. BudBox state that Mylar reflects more heat energy and runs around 6-8°C warmer than their PRO White lining, so size the extraction for the heat of your lights. This listing is the silver Mylar version.
How many grow lights will it take?
The 6.0m² floor is commonly set up with four 600W-class fixtures, or an equivalent spread of LED bars, hung from the six roof bars along the full 3m length.
What size extraction fan does a 200x300x200cm tent need?
The tent holds 12m³ of air, so changing it once a minute takes about 720m³/h before any allowance for light heat, carbon filter resistance or ducting length. In practice a 250mm (10-inch) or 315mm (12-inch) fan and filter, run through the 275mm or 340mm ports, gives the headroom to control temperature and humidity.
