Description
A 5.76m² Titan Square Room With Extra Headroom

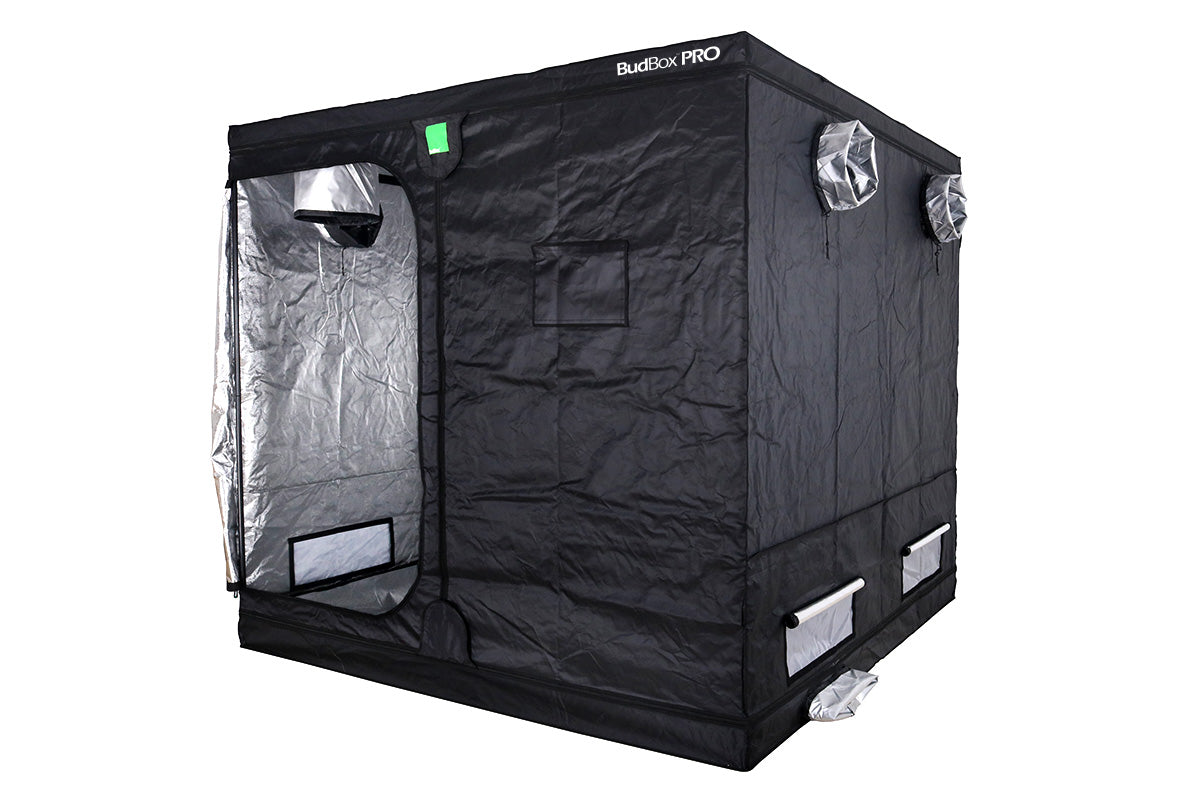

The BudBox Pro Tent (240cm x 240cm x 220cm) gives you the same 5.76m² square footprint as BudBox's standard Titan Plus tent, with an extra 20cm of headroom for taller fixtures and reflectors over a large canopy. The black powder-coated 25mm tempered steel frame with full metal push-and-click connectors is built for a heavy multi-light, multi-fan install, and five doors — two front main, one front access and two rear — give you working access to the whole room without crossing the canopy. It comes with a choice of silver Mylar or BudBox's PRO White lining: the flat white reflects more PAR light and avoids hot spots, while BudBox say Mylar reflects more heat energy and runs around 6-8°C warmer, so White is the cooler option under powerful lights.
Key Benefits
- Load-bearing 25mm steel frame rated for a heavy multi-light, multi-fan install

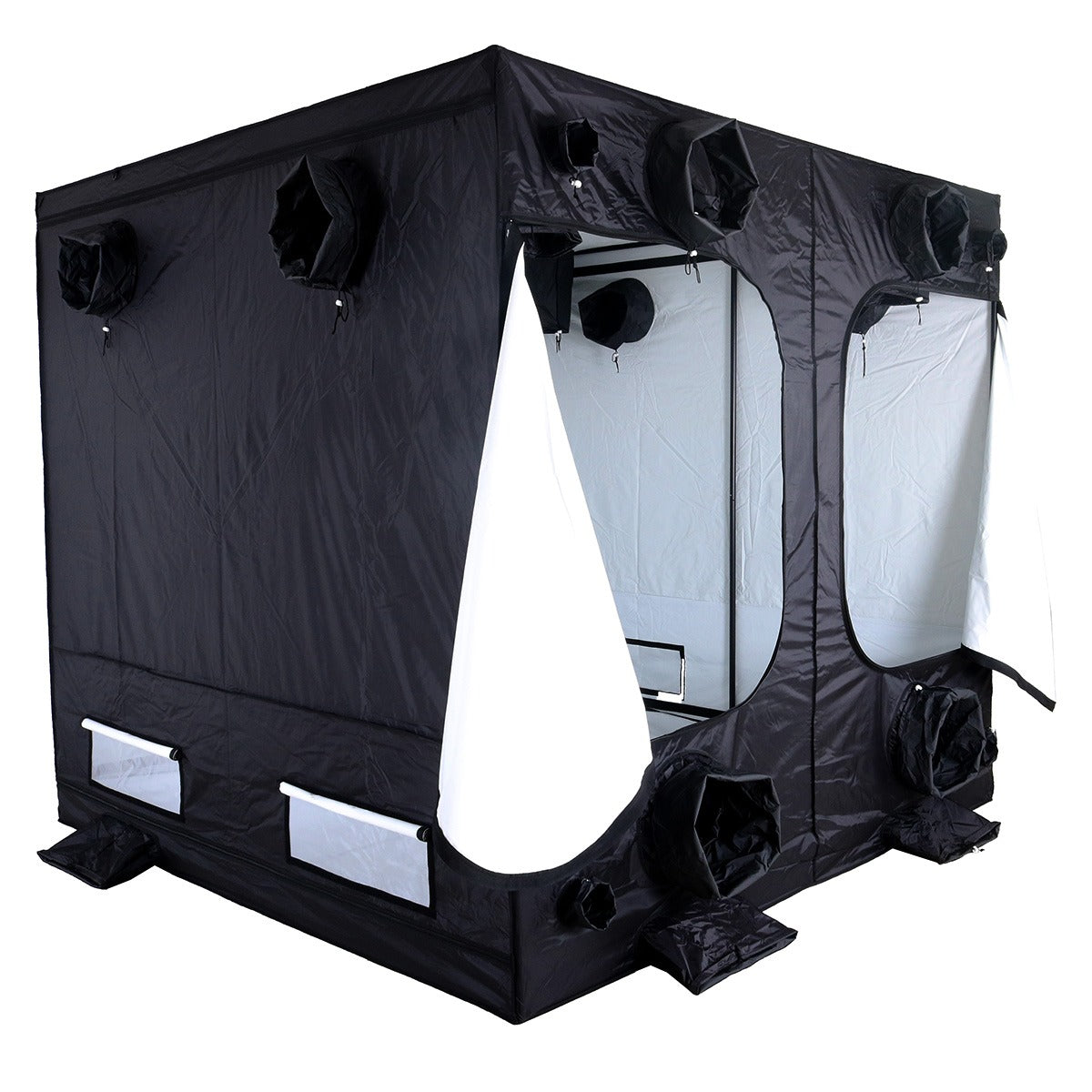

- 5 doors (2 front main, 1 front access, 2 rear access) for working access from front and rear

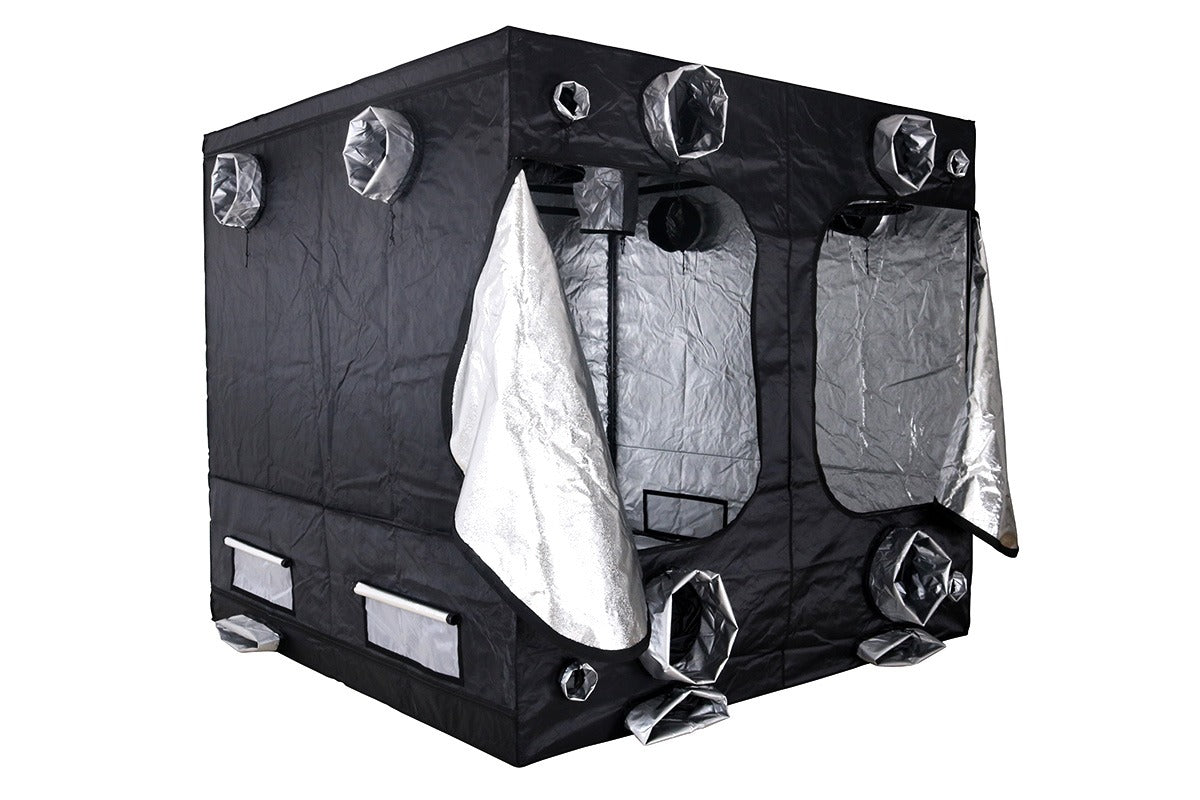

- Oversized reducible vents — 6 x 340mm and 6 x 275mm — support multiple extraction and intake points
- Uplift irrigation bar and 4 irrigation ports for a clean recirculating or run-to-waste setup at scale
- 4 x 100mm cable ports keep power, sensor and controller leads light-tight
- Fully waterproof inner plus spill tray contains runoff across the full 5.76m² floor
How to Use
- Assemble the frame with the push-and-click poles and metal corner connectors, then fit the waterproof inner and spill tray.
- Space multiple lights evenly across the square canopy, using the extra height for reflector and ducting clearance.
- Run ducting through the 340mm or 275mm vents, sizing extraction to the room's full 12.7m³ volume.
- Route irrigation through the dedicated ports and uplift bar to keep all five doors clear.

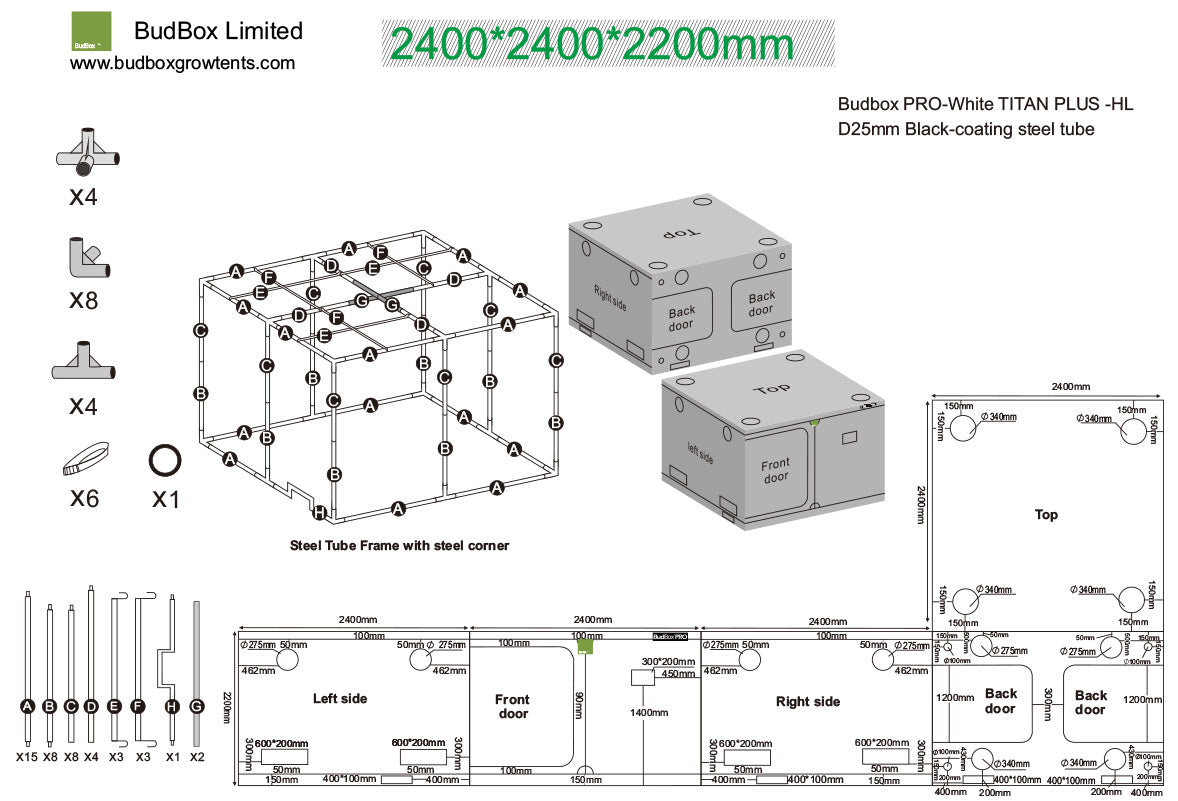

Technical Specifications
- Dimensions (cm): 240 x 240 x 220
- Frame: 25mm steel poles, metal push/click corners
- Fabric: Canvas, double-stitched seams

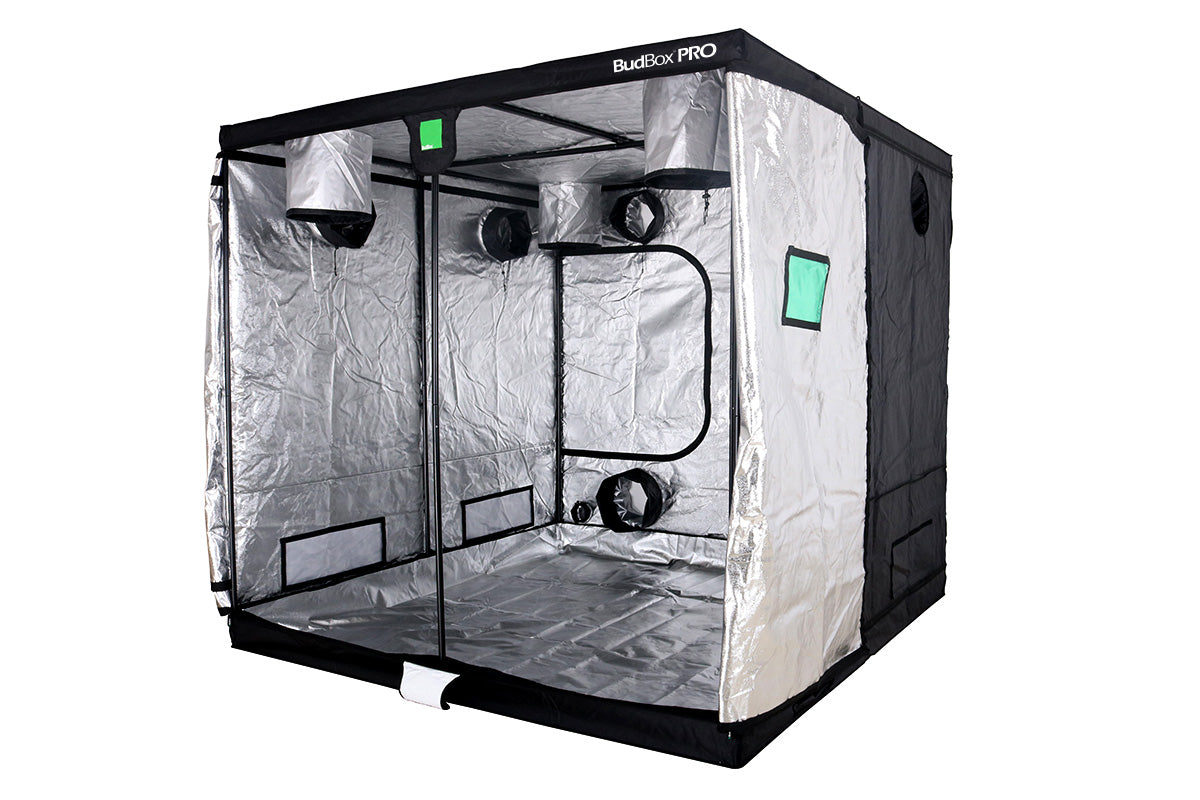

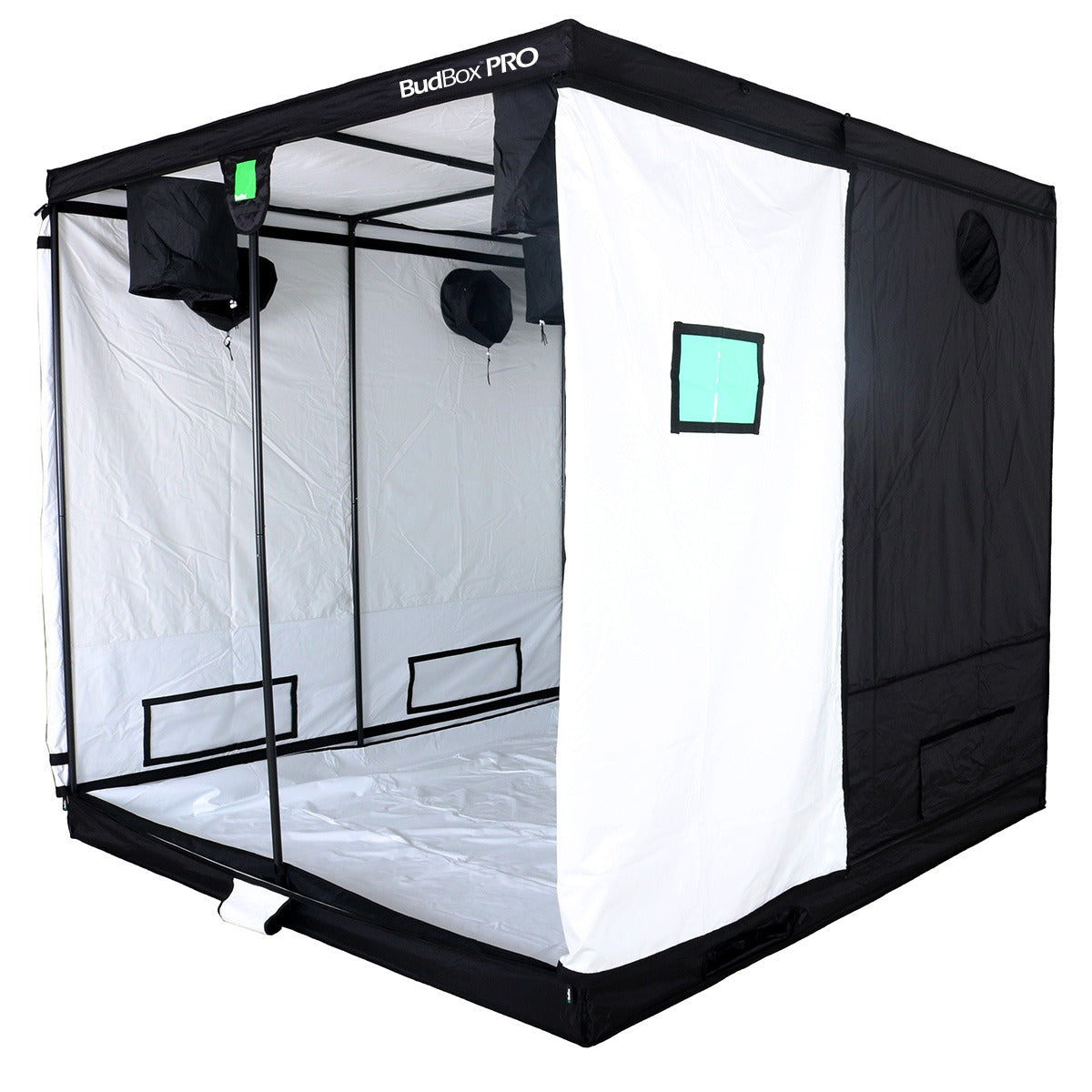

- Lining: Silver Mylar / White
- External dimensions: 240cm x 240cm x 220cm (2.4m x 2.4m footprint, 2.2m tall)
- Footprint: 5.76m²
- Doors: 2 x front main doors, 1 x front access door, 2 x rear access doors
- Vents: 6 x 340mm, 6 x 275mm, 4 x 100mm reducible ports, 4 x irrigation ports, 1 uplift irrigation bar
- Fittings: 6 roof hanging bars, 6 hanging straps, 1 night-vision viewing window, 4 micro-mesh screened passive vents, waterproof inner with removable spill tray
- Assembly: tool-free push-and-click poles with metal corner connectors
Frequently Asked Questions
How does this differ from the 240x240x200cm Titan Plus?
The doors, ports and frame are the same. This HL (HighLine) model is 20cm taller at 220cm, giving more clearance above the canopy for large reflectors and ducting runs; the 200cm Titan Plus suits rooms with a lower ceiling.
What size extraction fan does a 240x240x220cm tent need?
The tent holds about 12.7m³ of air, so one change a minute is roughly 760m³/h before any allowance for a carbon filter, ducting and the heat of several lights. A 250mm (10in) fan and filter is the usual minimum and a 315mm (12in) gives headroom, run through the 340mm or 275mm ports.
Silver Mylar or PRO White — which lining should I choose?
BudBox's flat PRO White lining reflects more PAR light than Mylar and spreads it without hot spots; BudBox say Mylar reflects more heat and runs around 6-8°C warmer. Across a multi-light room that difference adds up, so White is the cooler choice; Silver costs less.
