Description
Quiet, Even White Light From Seedling to Flowering

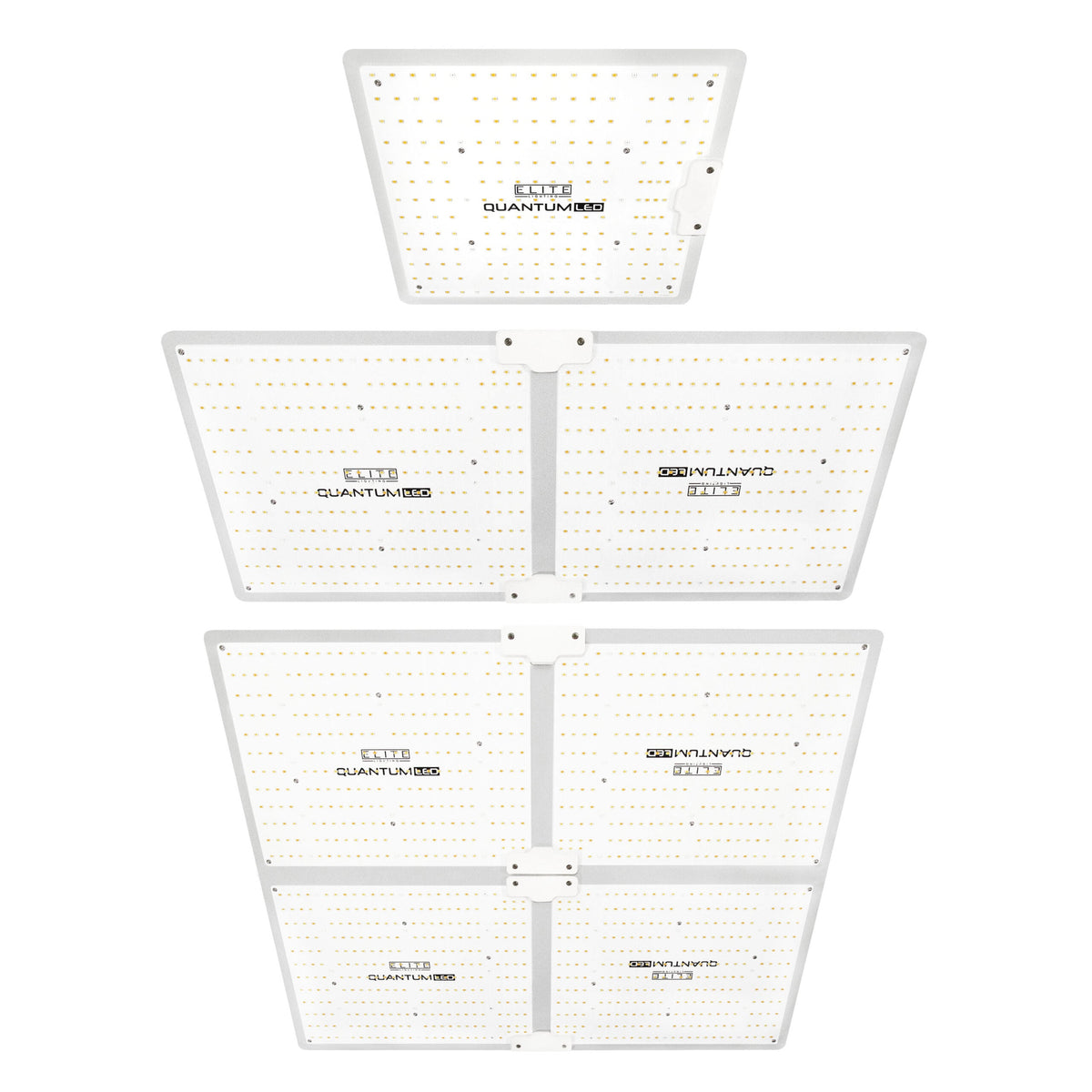

The Elite Quantum LED Grow Light Panel is a passively cooled quantum board built on Samsung LM281B+ diodes. Its white, full spectrum light carries plants from seedlings through vegetative growth and flowering, and shows leaves in their true colour, so problems are easy to spot. Three models cover the common tent sizes: the single-board EQ1000 (100W) for a 60 x 60cm flowering area, the twin-board EQ2000 (240W) for 60 x 120cm, and the four-board EQ4000 (420W) for 120 x 120cm. Every panel has a dimmer knob and a connection function for linking panels together.
Key Benefits

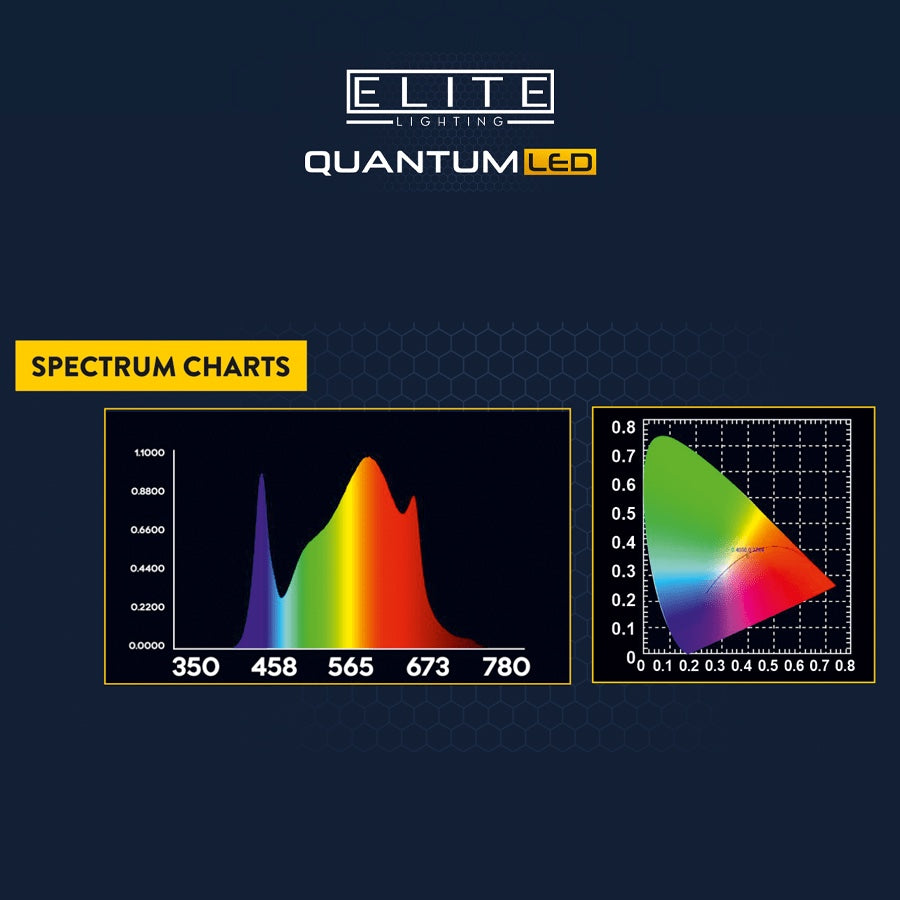

- Samsung LM281B+ white diodes – a broad, sun-like spectrum for every stage of growth and natural viewing.
- Up to 2.7 µmol/J – 254, 641 or 1121 µmol/s depending on the model.
- Large, diffuse board – light spreads across a wide area for even canopy penetration rather than a single hot spot.
- Dimmable 0–100% – the knob turns output down for seedlings and cuttings and up for flowering.
- Passive cooling – no fans, so it runs silently with nothing to wear out.
- Slim 6.5cm profile – from 2.4kg for the EQ1000 to 7.5kg for the EQ4000, easy to hang in a tent.
Too Much Heat and Noise in a Small Tent?
In a compact grow tent, a hot lamp and the fans needed to cool it soon dominate the space: temperature climbs, humidity falls, and young plants stretch towards a single bright point while the corners stay dim. A quantum board spreads its diodes over a wide, flat panel, so the canopy receives even light at a modest temperature, and passive cooling means no fan noise from the light itself. That makes humidity and airflow far easier to manage, and gives seedlings and cuttings a gentle start.
How to Use
- Choose the model by flowering area: EQ1000 for 60 x 60cm, EQ2000 for 60 x 120cm, EQ4000 for 120 x 120cm (larger areas in vegetative growth – see the specifications).

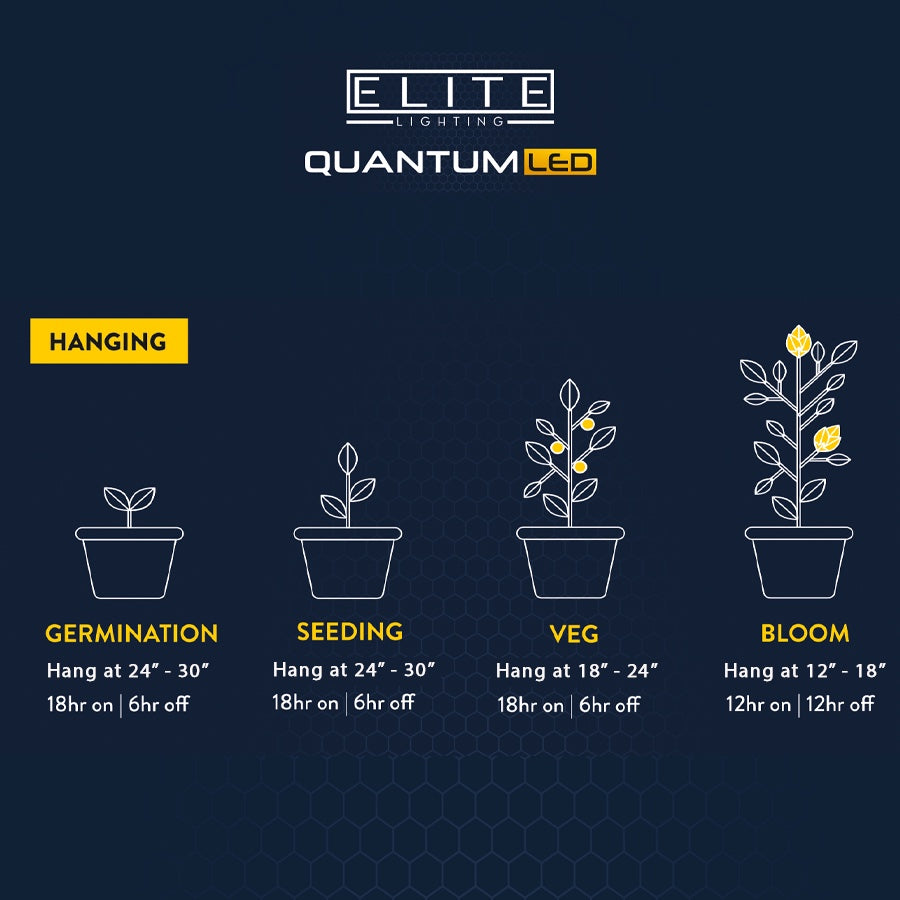

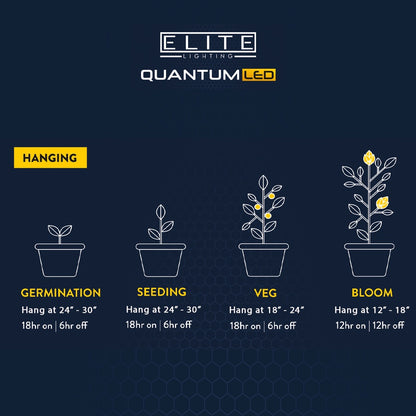

- Germination and seedlings: hang at 61–76cm (24–30in) above the plants, 18 hours on, 6 off.
- Vegetative growth: lower to 46–61cm (18–24in), 18 hours on, 6 off.
- Flowering: lower to 30–46cm (12–18in) and switch to 12 hours on, 12 off.
- Use the dimmer knob to ease young plants in, and raise the panel or turn it down if the top leaves bleach.
Technical Specifications
- Power draw: 100W (EQ1000) / 240W (EQ2000) / 420W (EQ4000)
- PPF: 254 µmol/s (EQ1000) / 641 µmol/s (EQ2000) / 1,121 µmol/s (EQ4000)
- Efficacy: 2.6 µmol/J (EQ1000) / 2.7 µmol/J (EQ2000) / 2.7 µmol/J (EQ4000)
- Fixture size: 30 x 26.6 x 6.5 cm (EQ1000) / 60 x 26.6 x 6.5 cm (EQ2000) / 64.5 x 53.2 x 6.5 cm (EQ4000)
- Brand: Elite Lighting
- Diodes: Samsung LM281B+ white, full spectrum

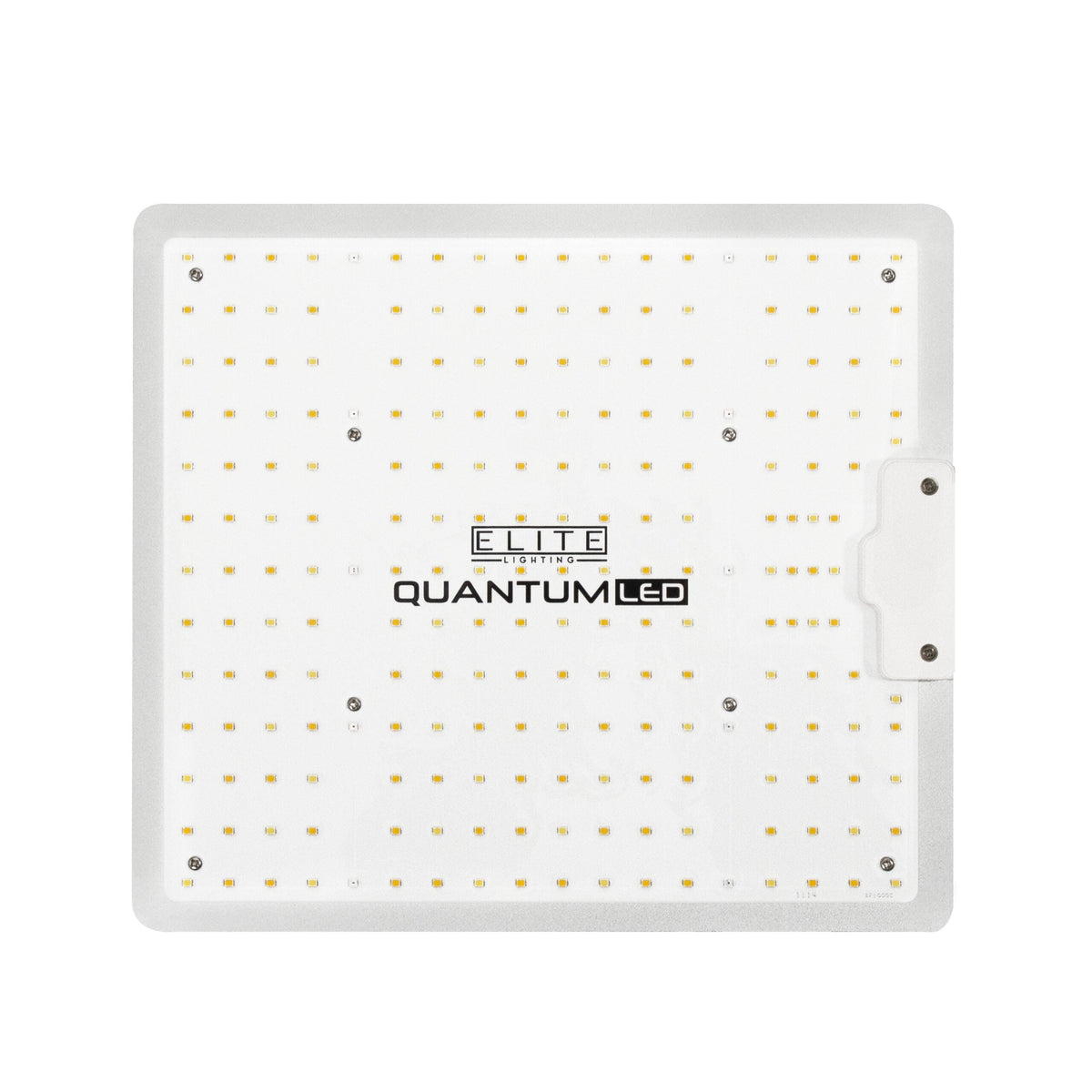

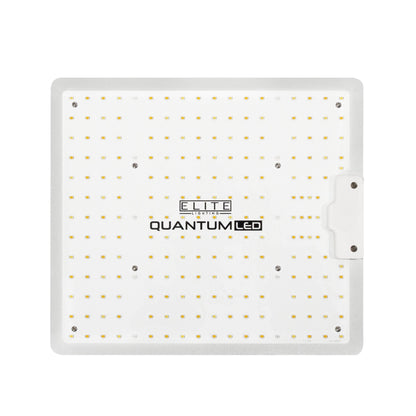

- EQ1000: 100W · 254 µmol/s · 2.6 µmol/J · 30 x 26.6 x 6.5cm · 2.4kg
- EQ1000 coverage: 76 x 76cm (2.5 x 2.5ft) vegetative, 61 x 61cm (2 x 2ft) flowering

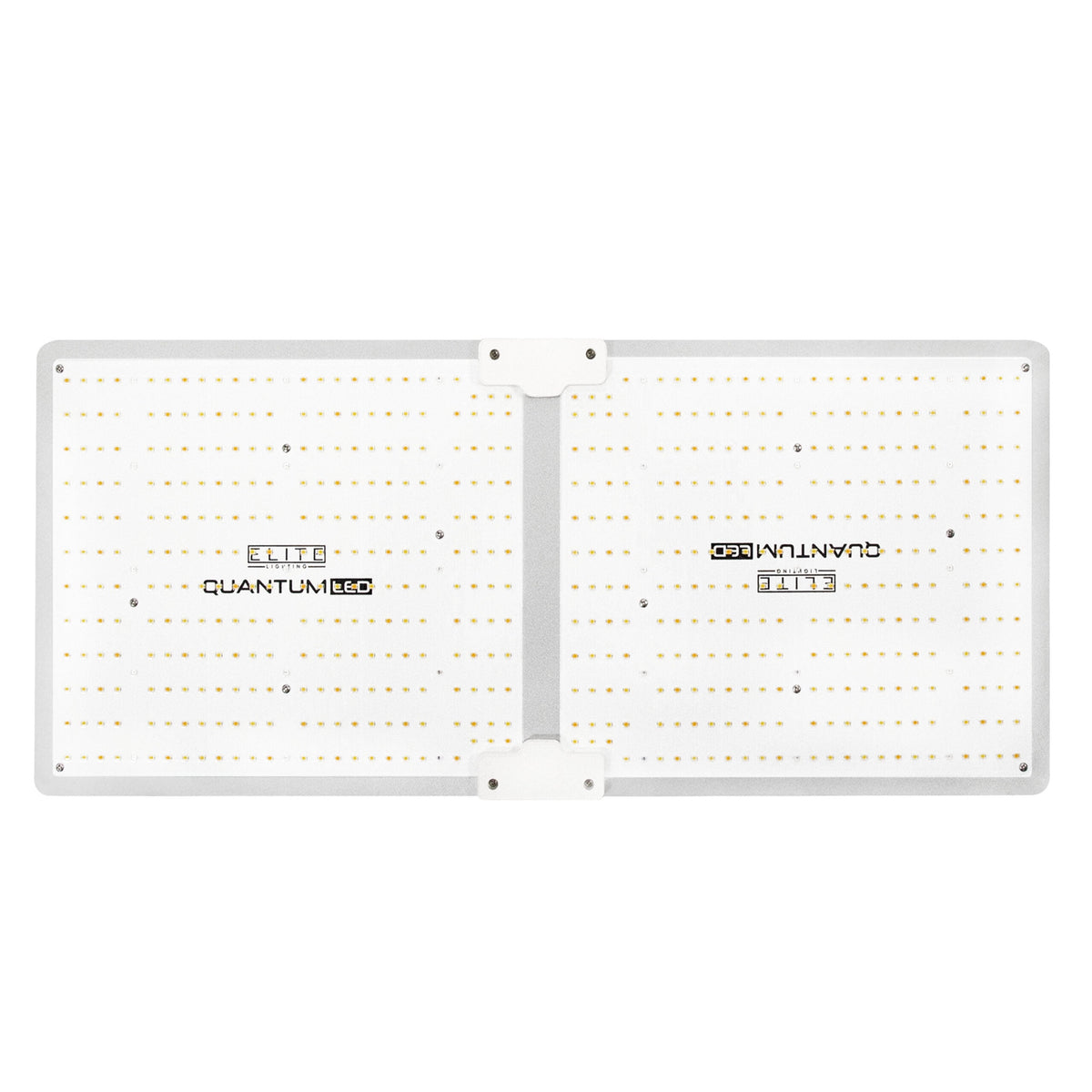

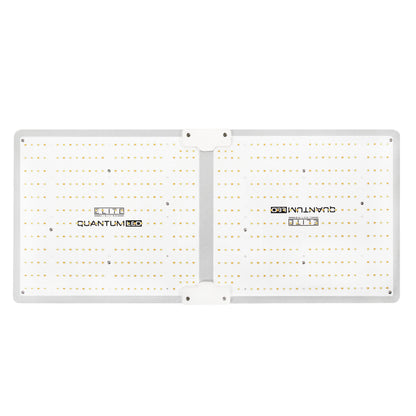

- EQ2000: 240W · 641 µmol/s · 2.7 µmol/J · 60 x 26.6 x 6.5cm · 4.2kg
- EQ2000 coverage: 91 x 122cm (3 x 4ft) vegetative, 61 x 122cm (2 x 4ft) flowering

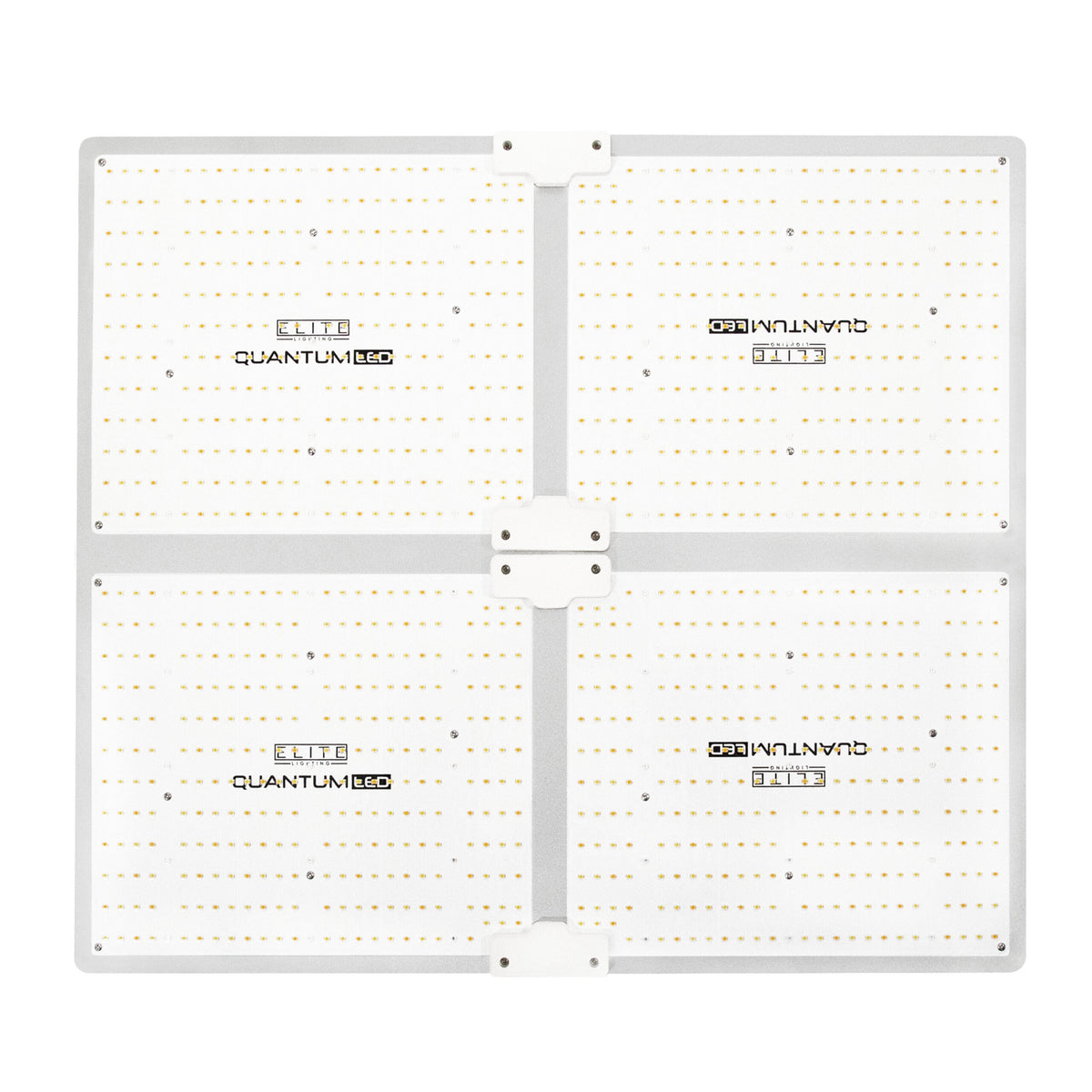

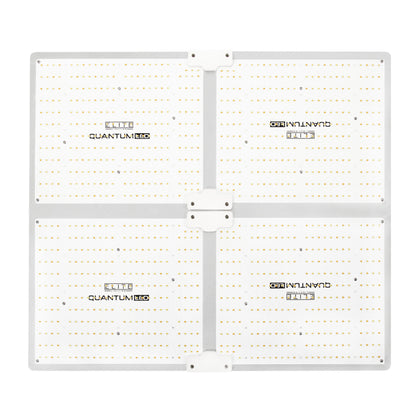

- EQ4000: 420W · 1121 µmol/s · 2.7 µmol/J · 64.5 x 53.2 x 6.5cm · 7.5kg
- EQ4000 coverage: 152 x 152cm (5 x 5ft) vegetative, 122 x 122cm (4 x 4ft) flowering
- Dimming: 0–100% via dimmer knob
- Linking: Connection function for running panels together
- Cooling: Passive, fanless
Frequently Asked Questions
Which model do I need for my tent?
Go by the flowering area: the EQ1000 covers 61 x 61cm, the EQ2000 61 x 122cm and the EQ4000 122 x 122cm. Each covers a larger area during vegetative growth.
Can one panel take plants from seed to flowering?
Yes. The white full spectrum suits every stage; hang it higher for seedlings and lower for flowering, and change the day length from 18 hours to 12 hours when you want plants to flower.
Do the panels make any noise?
No. They are passively cooled with no fans, so they run silently.
Can I dim the light or run more than one panel?
Yes. The dimmer knob adjusts output from 0 to 100%, and the connection function lets you run panels together.
