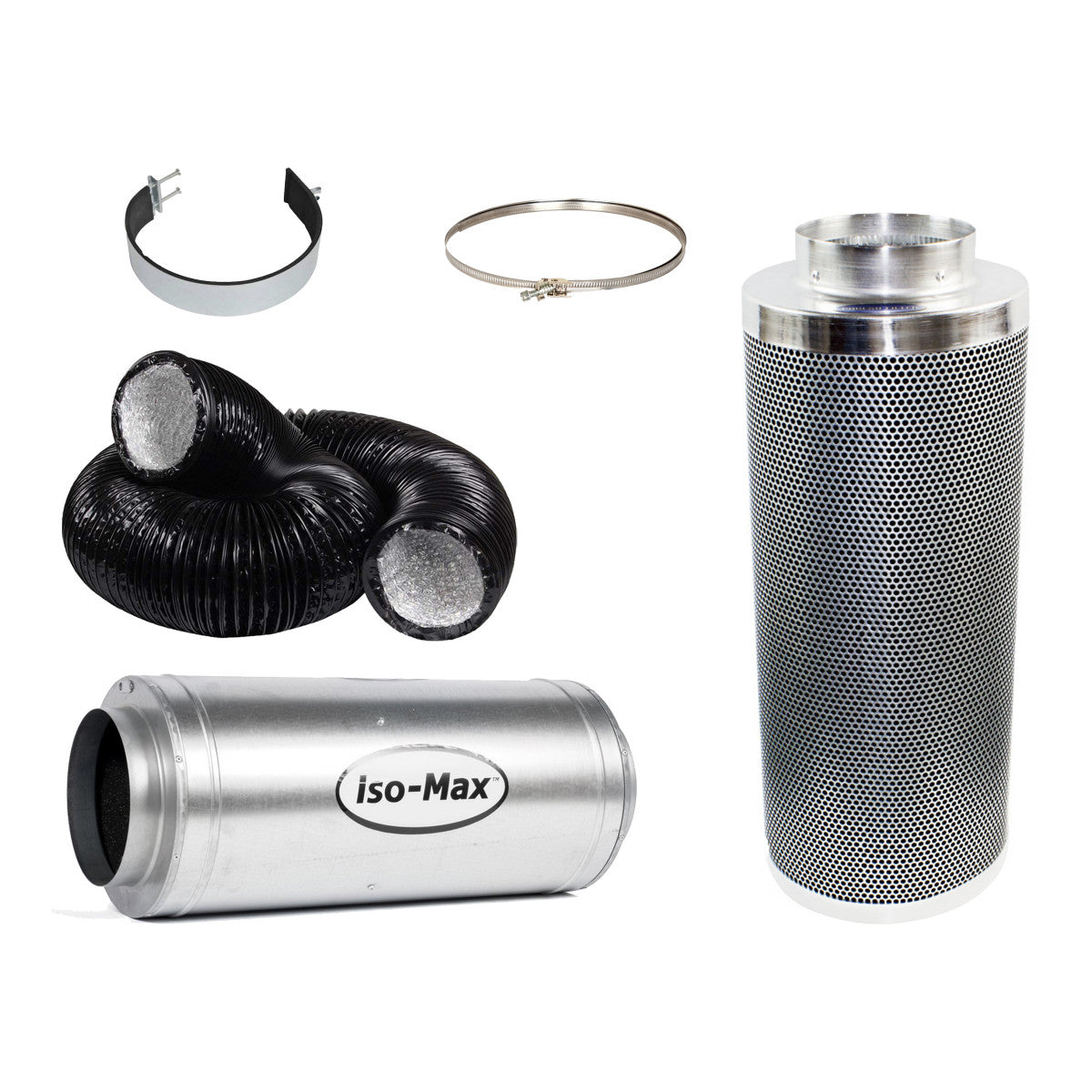

A complete quiet-running extraction setup in one box
The Isomax Extraction Kit bundles everything needed to pull warm, humid, odorous air out of a tent or grow room and keep the whole run whisper-quiet. Rather than buying a fan, filter, ducting and fittings separately and hoping they match, this kit is sized together from the start so the Can-Fan Iso-Max acoustic fan, the Can-Lite carbon filter and the ducting all share the same diameter and airflow rating. The Iso-Max's sound-insulated ETALINE housing keeps it markedly quieter than a bare inline fan, while the kit still moves up to 3,260 m3/h on the largest size.
What's Included

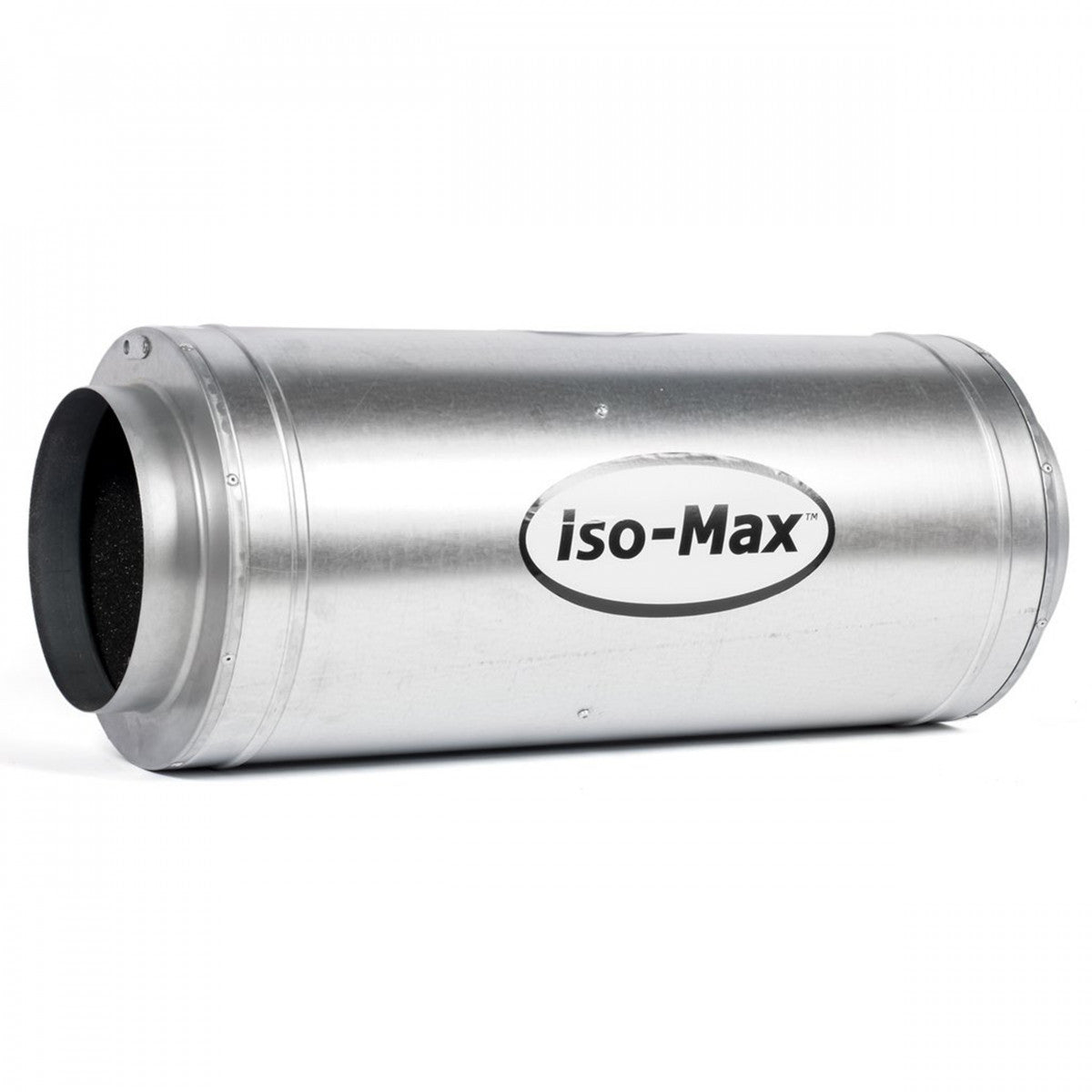

- Isomax Acoustic Fan in the size that matches your tent or room

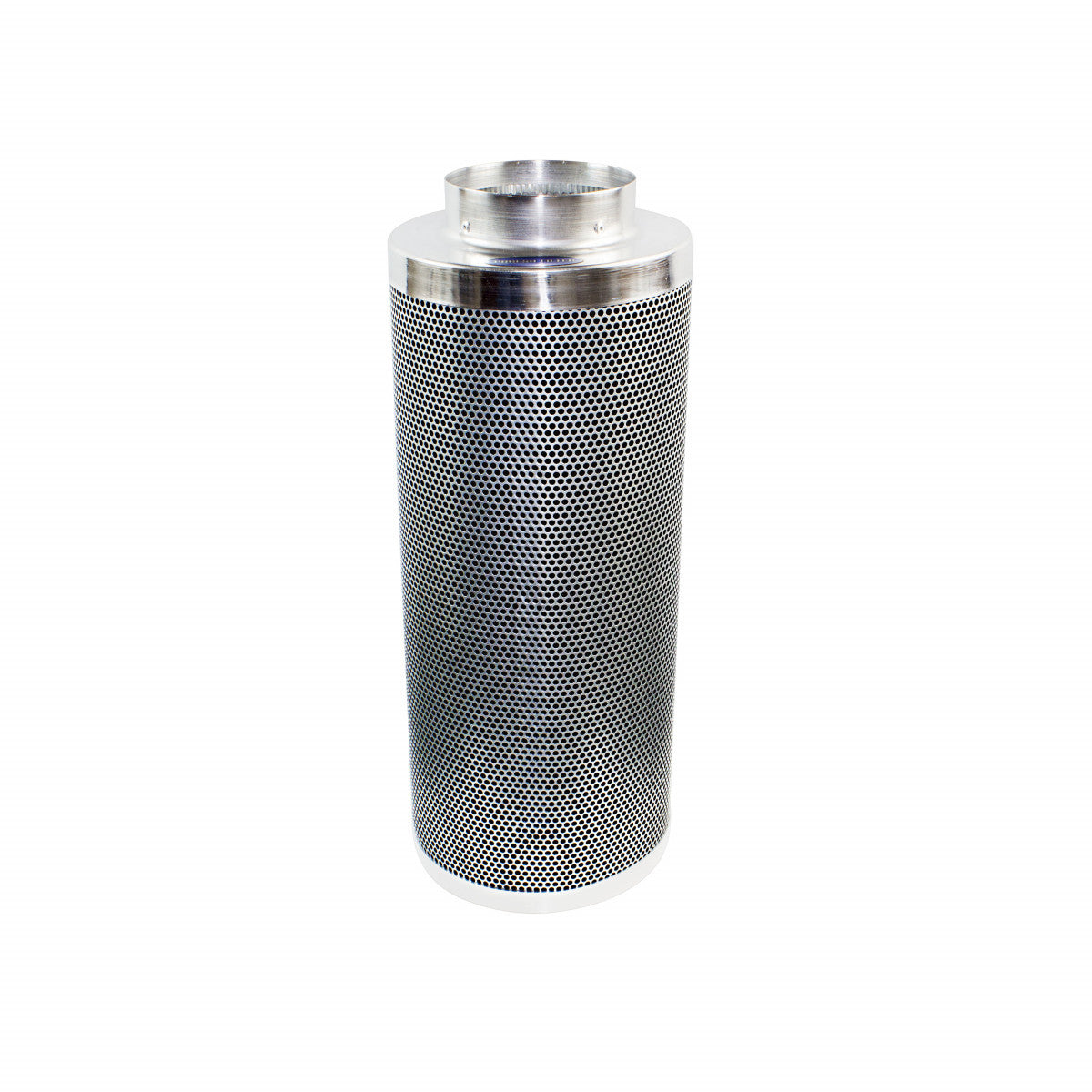

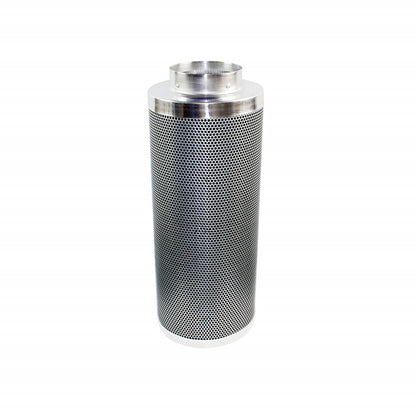

- Can-Lite Carbon Filter sized to the fan for odour control

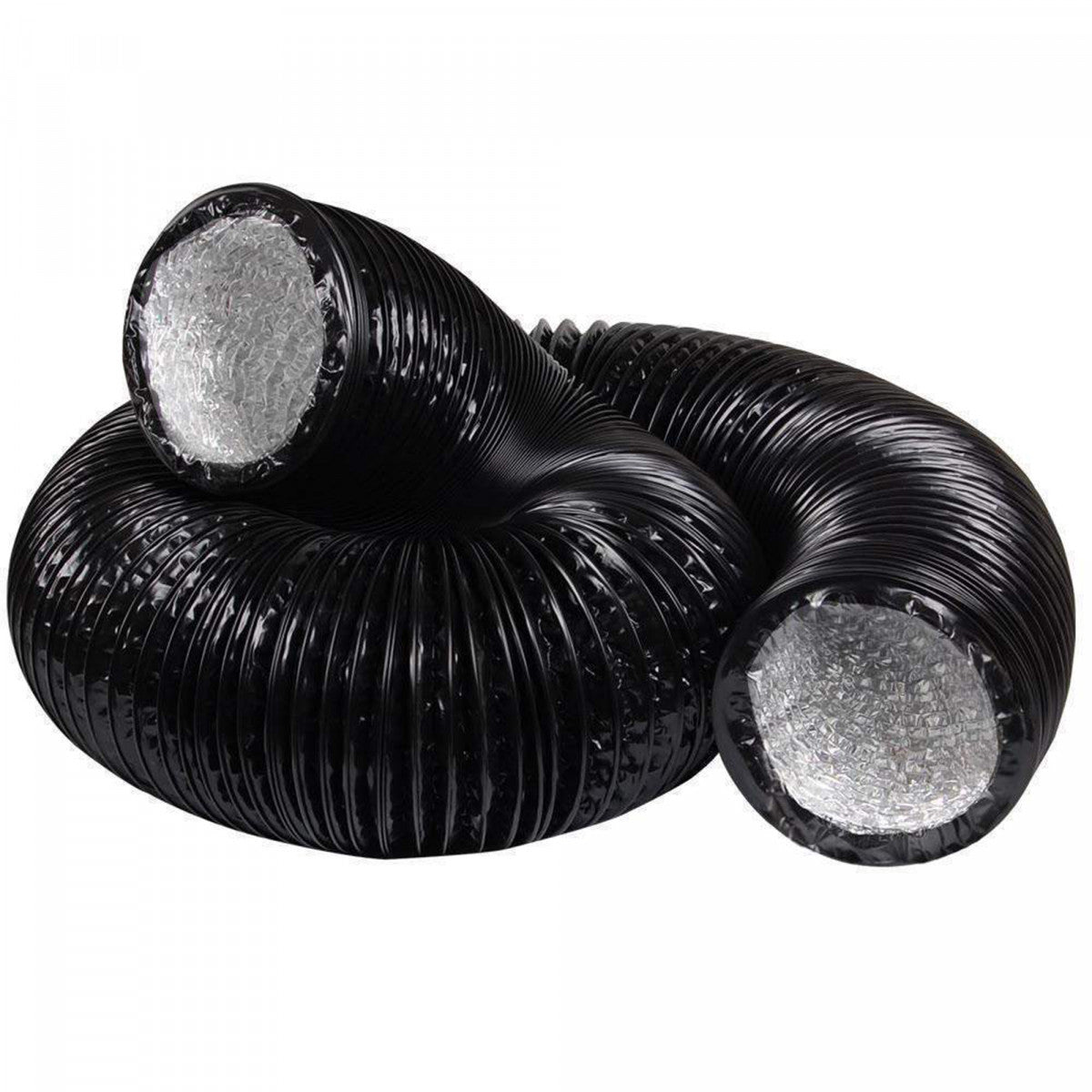

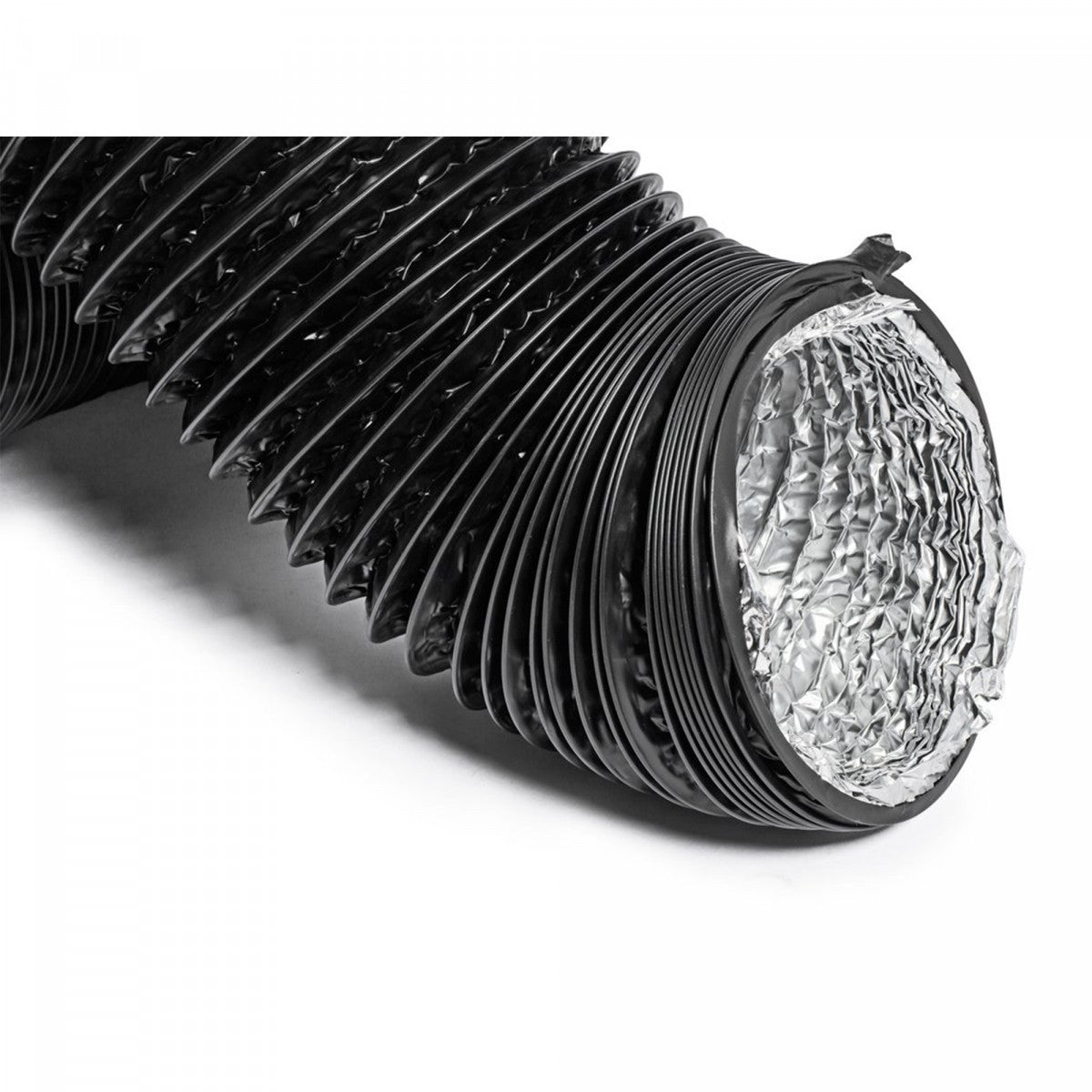

- 10m Combi Ducting to connect fan, filter and vent

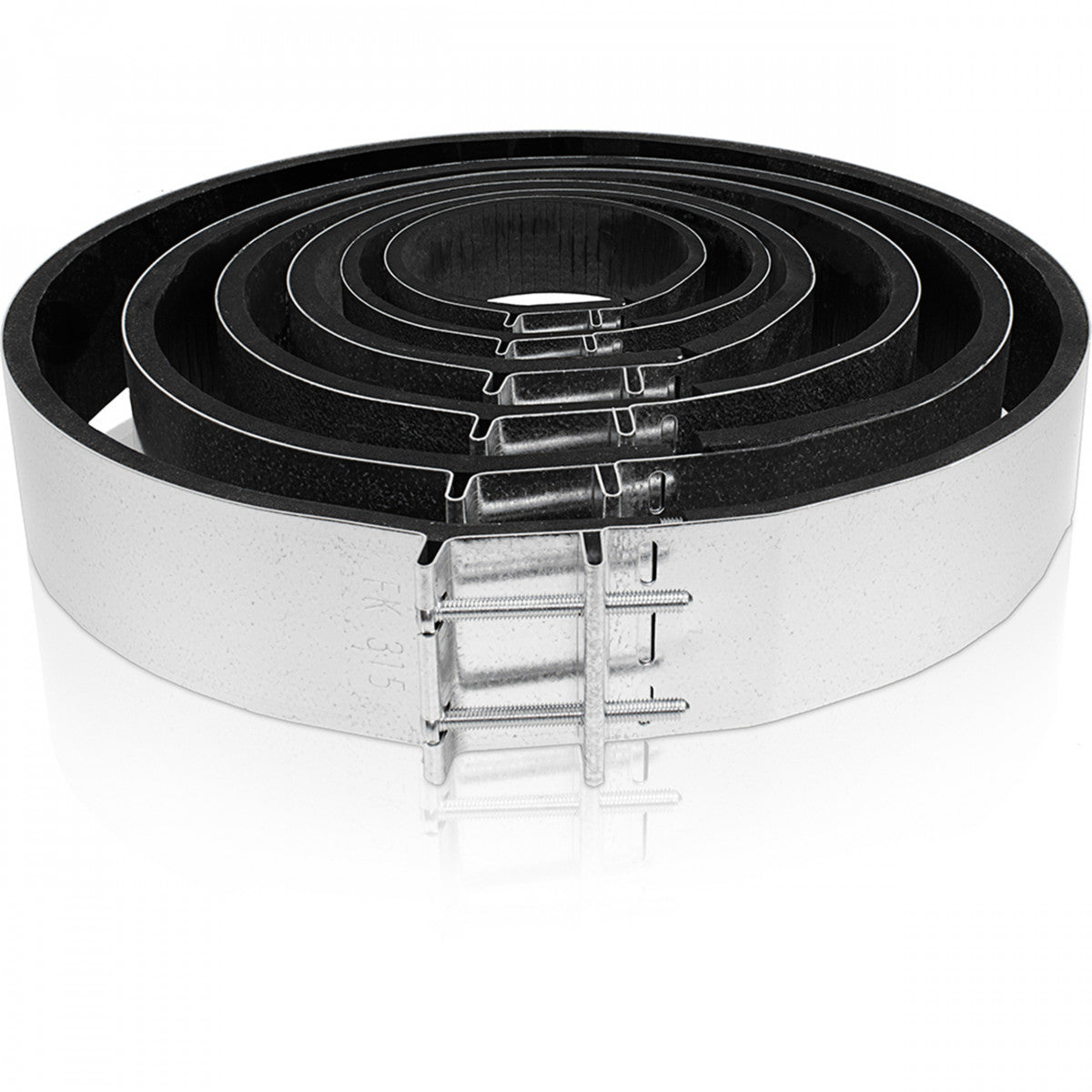

- Padded Fast Clamp for a secure, vibration-damped seal

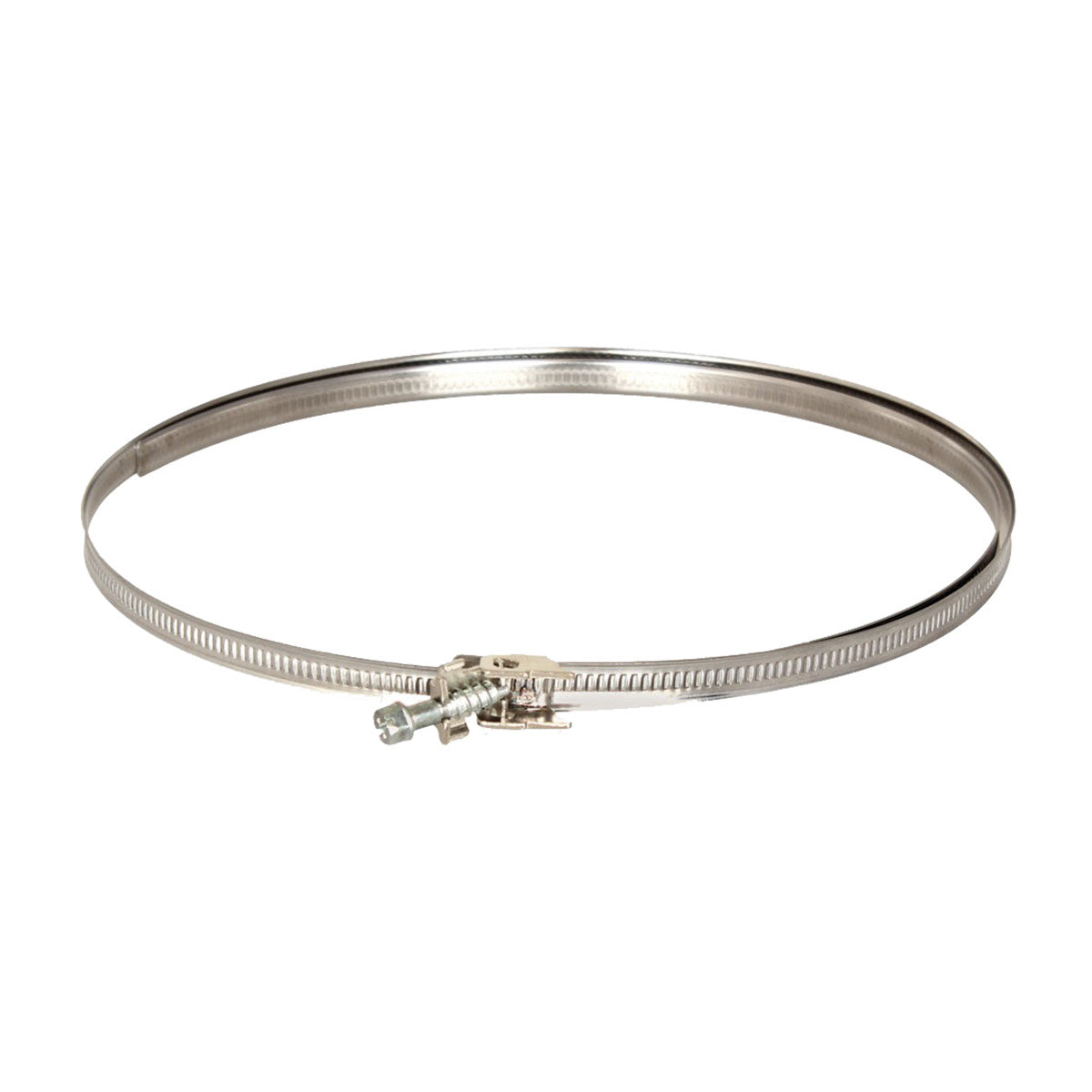

- Adjustable Jubilee Clip for the final duct connection
Key Benefits
- Matched components so fan output, filter size and duct diameter all line up correctly.
- Quiet running from the Iso-Max's sound-insulated ETALINE housing.
- Odour control from the Can-Lite carbon filter, sized to suit the fan.
- Airtight run with padded fast clamp and jubilee clip keeping extraction efficiency high.
- One order, one delivery instead of sourcing five separate parts.
Tackling heat, smell and stale air in one go
A tent that runs too warm, feels humid and sticky, or smells of the crop is almost always an airflow problem, not a light or nutrient one. This kit fixes all three at once - the fan moves the volume the space needs, the filter strips odour before air leaves the room, and the sealed ducting stops you losing extraction through gaps and joins.
How to Use
- Size it: choose the fan size to suit your tent or room volume and target air changes.
- Join filter to fan: connect the carbon filter to the fan with combi ducting, sealing the joint with the padded fast clamp.
- Run the exhaust: duct from the filter out through your vent or wall plate, finishing with the adjustable jubilee clip.
- Mount securely: suspend or bracket the fan to cut transmitted vibration and noise.
Technical Specifications
- Type: fan, carbon filter and ducting kit
- Fan: Can-Fan Iso-Max acoustic inline fan
- Fan housing: galvanised metal, sound-insulated
- Motor protection: integrated thermal switch
- Motor insulation: class F
- Fan mounting: hanging brackets included
- Fan supply: 230 V, 50 Hz
- Carbon filter: Can-Lite, sized to the fan
- Ducting: 10 m combi ducting
- Fittings: padded fast clamp, adjustable jubilee clip
- Brand: Can-Fan
| By size | 6" - 410m3/h | 8" - 870m3/h | 10" - 1480m3/h |
|---|---|---|---|
| Fan | Iso-Max 150/410 | Iso-Max 200/870 | Iso-Max 250/1480 |
| Fan airflow | 410 m³/h | 870 m³/h | 1,480 m³/h |
| Fan power | 51 W | 121 W | 150 W |
| Fan current | 0.2 A | 0.5 A | 0.9 A |
| Speed control | 3-speed switch on fan | 3-speed switch on fan | 1-speed; via Satellite 4A |
| Fan length | 68 cm | 60 cm | 68 cm |
| Fan body Ø | – | – | 31.3 cm |
| Fan weight | 6 kg | 8 kg | 9.9 kg |
| By size | 10" - 2310m3/h | 12" - 2310m3/h | 12" - 3260m3/h |
|---|---|---|---|
| Fan | Iso-Max 250/2310 | – | Iso-Max 315/3260 |
| Fan airflow | 2,310 m³/h | – | 3,260 m³/h |
| Fan power | 273 W | – | 512 W |
| Fan current | 1.7 A | – | 3.2 A |
| Speed control | 1-speed; via Satellite 4A | – | 1-speed; via Satellite 4A |
| Fan length | 68 cm | – | 68 cm |
| Fan body Ø | 35.4 cm | – | 35.4 cm |
| Fan weight | 13.4 kg | – | 19.2 kg |
