Description
A flexible rubber joint for rigid or semi-rigid ducting

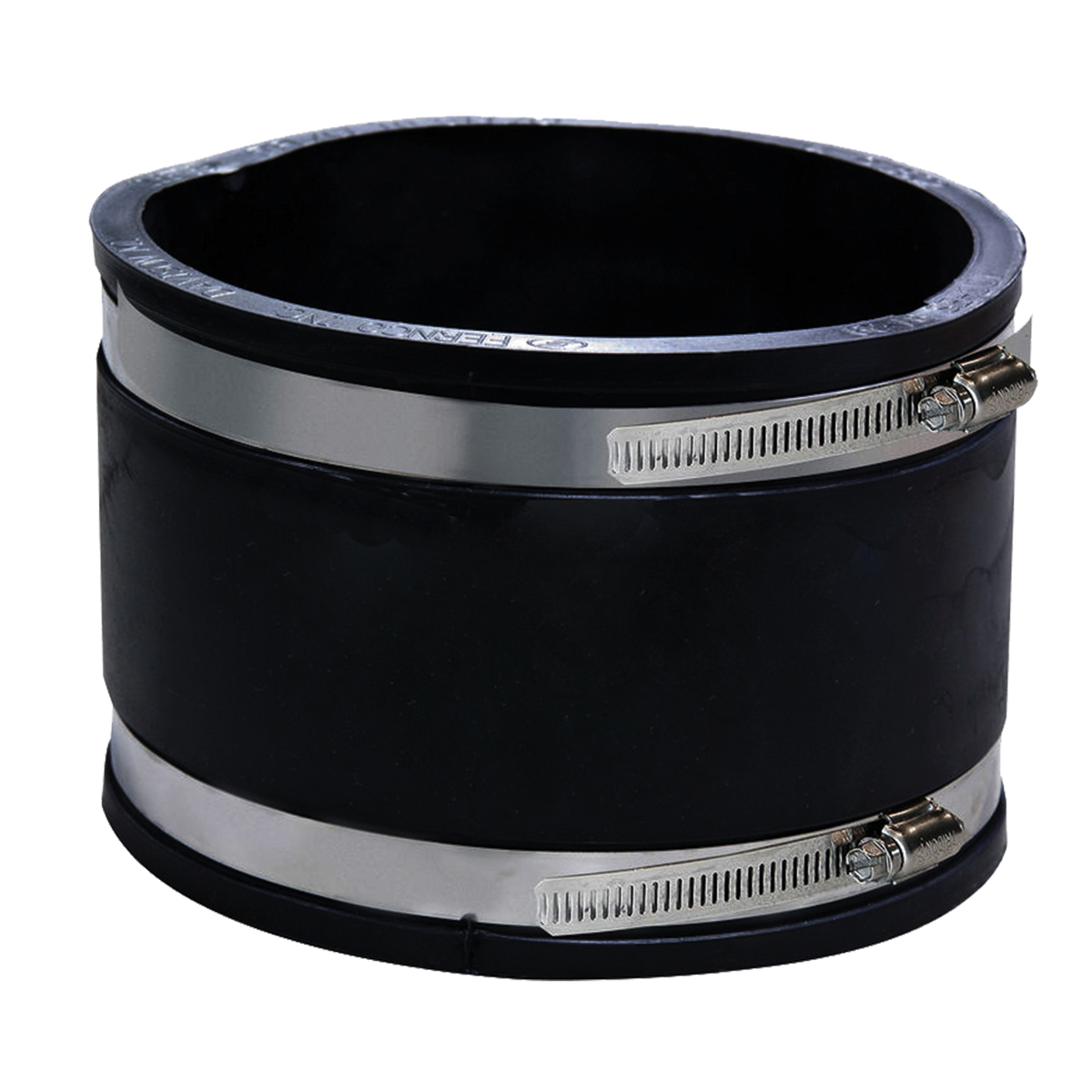

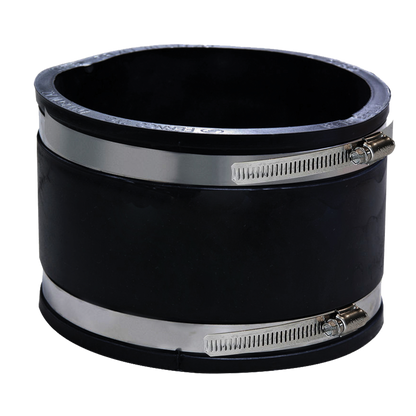

The Secret Jardin rubber duct coupling joins two lengths of rigid or semi-rigid ducting with a flexible rubber sleeve and stainless steel jubilee clips, taking up any slight misalignment that a rigid connector can't and cutting vibration transfer between fan and ducting.
Key Benefits
- Flexible rubber sleeve - absorbs minor misalignment between duct sections
- Stainless steel jubilee clips - a secure, adjustable, reusable seal on both ends
- Cuts vibration transfer - isolates fan vibration from rigid ducting runs
- Two diameters - matched to common ducting and fan sizes
A rigid duct-to-duct joint transmits every bit of fan vibration and hum straight down the ducting, and any slight misalignment between sections puts strain on the joint. A flexible rubber coupling absorbs both, for a quieter, more forgiving connection.
How to Use
- Slide the coupling over the ends of the two duct sections to be joined
- Tighten the jubilee clips on each side to seal the connection

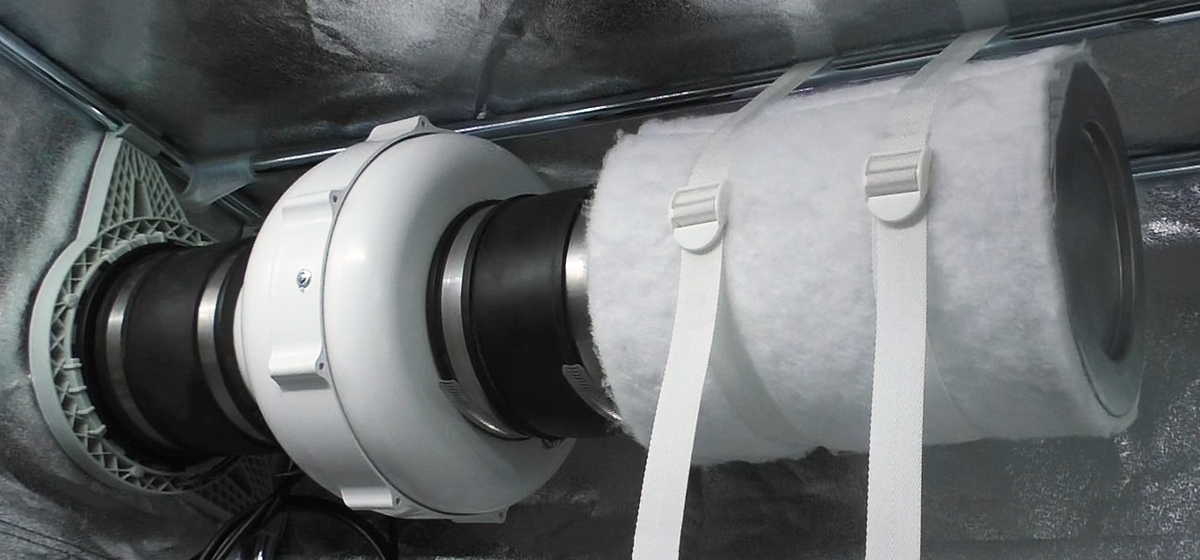

- Use at the fan connection to cut vibration transfer into the wider ducting run
Technical Specifications
- Type: flexible rubber duct coupling
- Material: flexible rubber sleeve
- Length: 150 mm
- Clips: jubilee clips fitted, both ends
- Use: joins ducts, connectors and flanges
| By size | 200mm | 250mm |
|---|---|---|
| Fits duct Ø | 200 to 225 mm | 255 to 280 mm |
| Inner Ø | 205 mm | 255 mm |
| Dimensions | Ø22 x 15cm | Ø27.5 x 15cm |
| Weight | 0.95kg | 1.75kg |
