Description
Fan and Filter, Matched and Ready to Fit
The VIVOSUN AeroZesh Extraction Kit pairs an EC-motor inline fan with a properly sized activated carbon filter, ducting and a digital controller, so you can pull out warm, humid air and control odour without matching separate components yourself. It solves the two biggest problems with poorly specced extraction: sticky humid air hanging in the canopy and smells drifting beyond the grow room, because the fan and filter are sized to work as a pair.

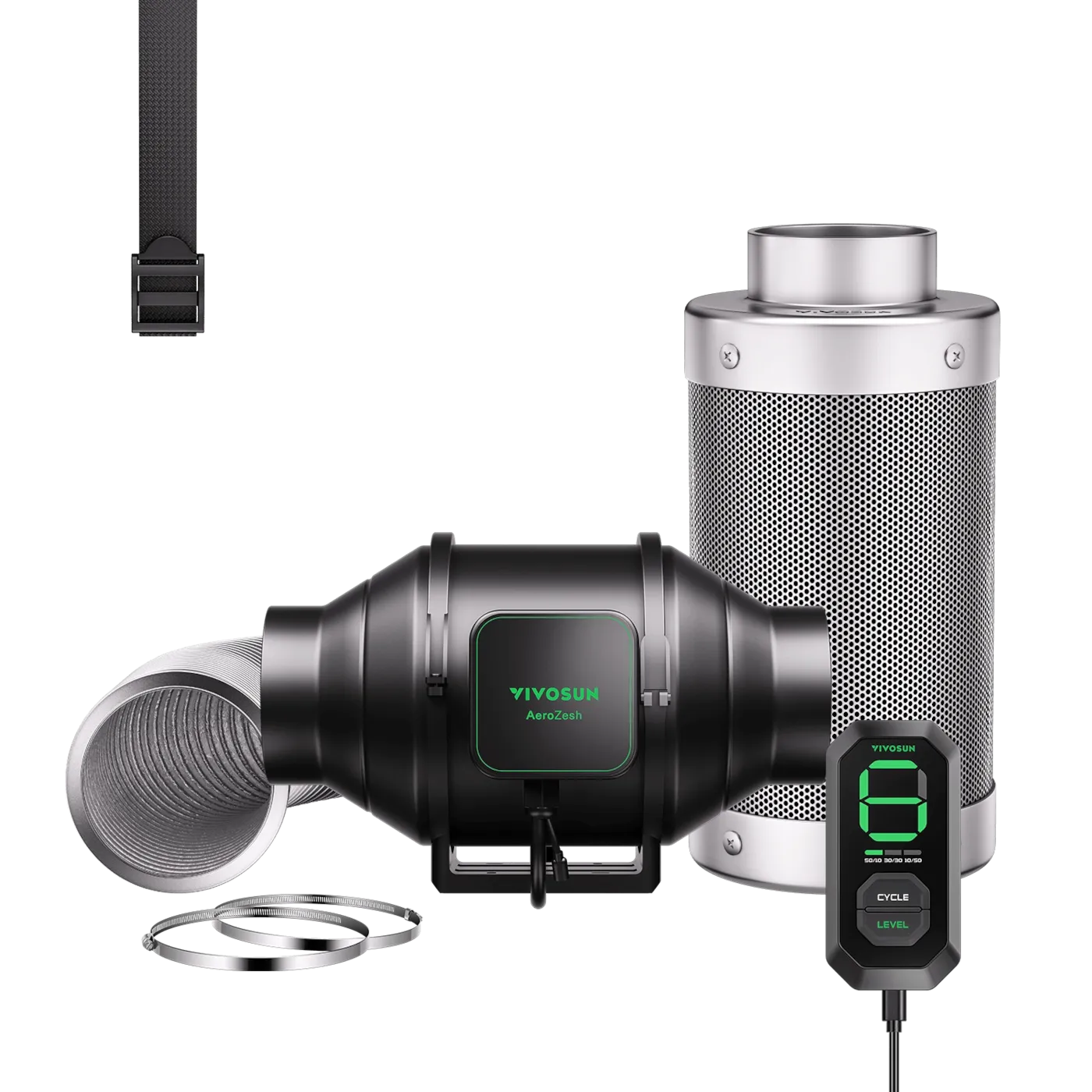

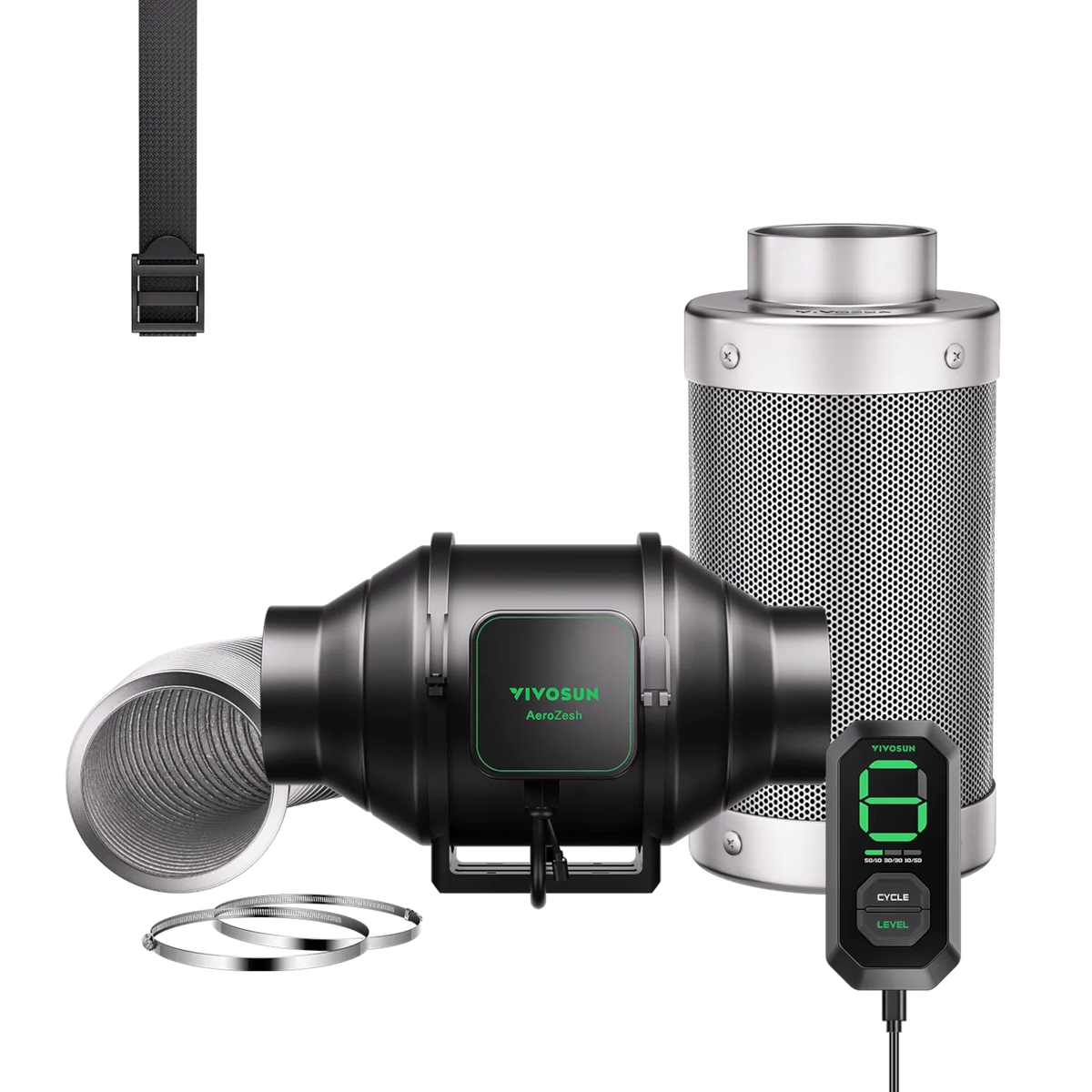

What's Included
- VIVOSUN AeroZesh inline fan with energy-efficient EC motor
- VIVOSUN E12 controller with speed levels and three on/off cycle settings
- Premium activated carbon filter with pre-filter sleeve
- Flexible aluminium ducting and clamps
- UK mains plug for straight-out-the-box running
Key Benefits
- Matched fan and filter sized together, so airflow and odour control are handled as one system
- EC motor for quieter, more efficient running than an AC fan at the same airflow
- Simple speed and cycle control: the E12 sets fan speed and runs 50/10, 30/30 or 10/50 minute on/off cycles
- Thorough odour control from activated carbon media with a washable pre-filter sleeve
- Choice of fan sizes (4in / 6in / 8in) to suit tent volume
Fixing humidity build-up and smell escaping the grow space
Undersized or mismatched extraction is a common cause of high humidity in the canopy and odour leaking out of the room. Because the AeroZesh fan and filter are matched, air is drawn through the carbon before it exhausts, keeping smell down while the EC fan shifts enough volume to hold temperature and humidity in range.
How to Use
- Mount the carbon filter inside the tent and connect it to the fan with the supplied ducting and clamps
- Exhaust the fan outside the grow space; run it continuously so all air passes through the carbon first
- Set the fan speed on the E12 controller, or choose one of its on/off cycles
- Replace the carbon filter roughly every 12-18 months of regular use as its absorbing capacity depletes
Technical Specifications
- Type: inline fan and carbon filter kit
- Fan motor: EC, mixed-flow, dual ball bearing
- Controller: VIVOSUN E12: speed levels and 3 on/off cycles
- Input: 110-240 V, 50/60 Hz
- Protection: IP44
- Filter: activated carbon with pre-filter sleeve
- Included: fan, E12 controller, filter, ducting, clamps, UK plug
- Warranty: 2 years (VIVOSUN)
| By size | S4 100mm 4" | S6 150mm 6" | S8 200mm 8" |
|---|---|---|---|
| Fan model | AeroZesh S4 (VSV-AZS4) | AeroZesh S6 (VSV-AZS6) | AeroZesh S8 (VSV-AZS8) |
| Fan airflow | 353 m³/h (208 CFM) | 688 m³/h (405 CFM) | 1,376 m³/h (810 CFM) |
| Noise | 39 dB(A) | 45 dB(A) | 50 dB(A) |
| Power | 20 W | 35 W | 70 W |
| Fan speed | 3,000 RPM | 3,100 RPM | 2,700 RPM |
| Carbon filter | Ø17.5 x 30 cm | Ø22.6 x 39.9 cm | – |
| Ducting | 2.44 m (8 ft) | 2.44 m (8 ft) | – |
| Dimensions | 30.2 x 22 x 19.2cm | 31 x 24.9 x 21.5cm | 30.4 x 27.2 x 23.4cm |
