Description
3,604 µmol/s From One Fixture, With the Spectrum in Your Hands

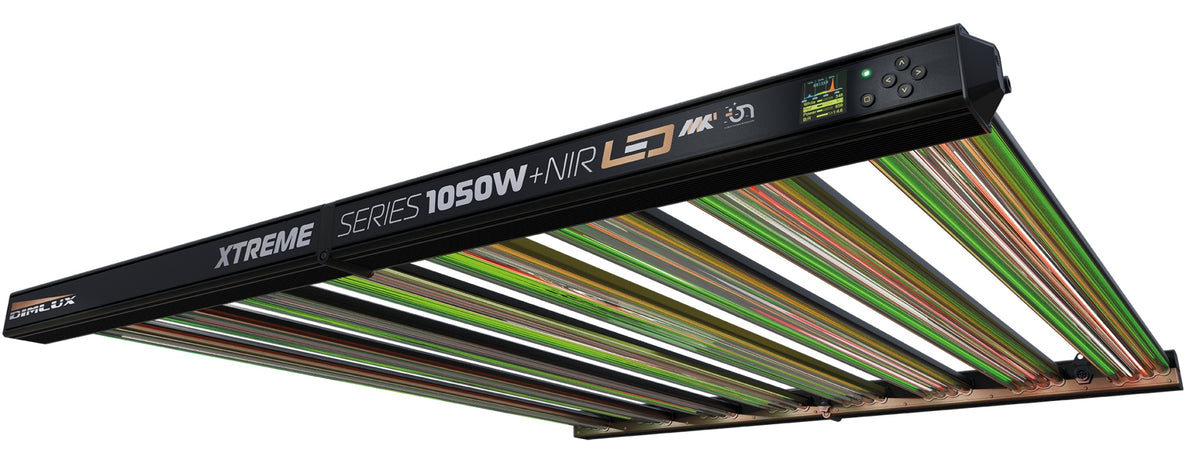

The Dimlux Xtreme Series 1050W LED +NIR MKII ION is the top model in Dimlux's second-generation Xtreme range. From 1050W it produces 3,604 µmol/s in the 400–700 nm band at 3.3 µmol/J, rising to 3,822 µmol/s at 3.5 µmol/J across 350–800 nm, spread evenly over a 1.62 x 1.62 m growing area. Its PhytoVegSpec® spectrum is adjustable from the fixture's own colour display, the +NIR version adds far-red that works with red light to lift photosynthesis, and a patented negative ioniser with cold plasma built into the light neutralises airborne pathogens without detectable ozone. Designed and engineered in the Netherlands, it is passively cooled, rated IP65 and covered by a 5-year warranty.
Key Benefits
- 3,604 µmol/s at 3.3 µmol/J (400–700 nm), with 3,822 µmol/s and 3.5 µmol/J across 350–800 nm

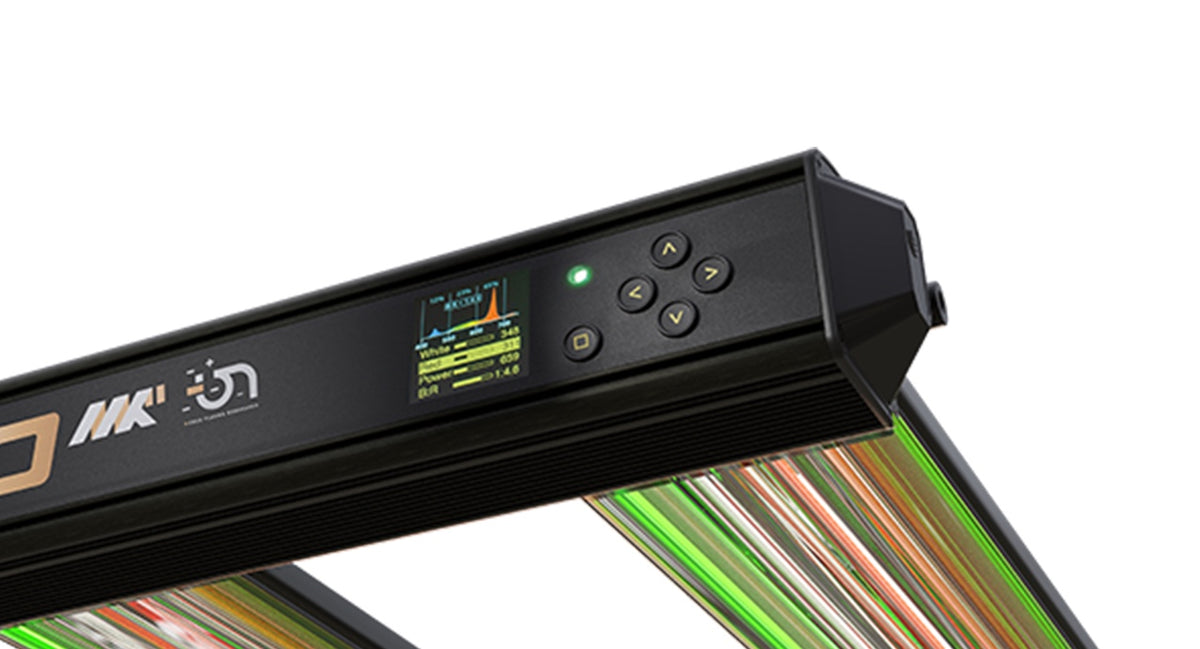

- Adjustable PhytoVegSpec® spectrum, set for each growth stage on the 1.54-inch colour display
- +NIR far-red for a more complete spectrum, more photosynthesis and greater photon absorption

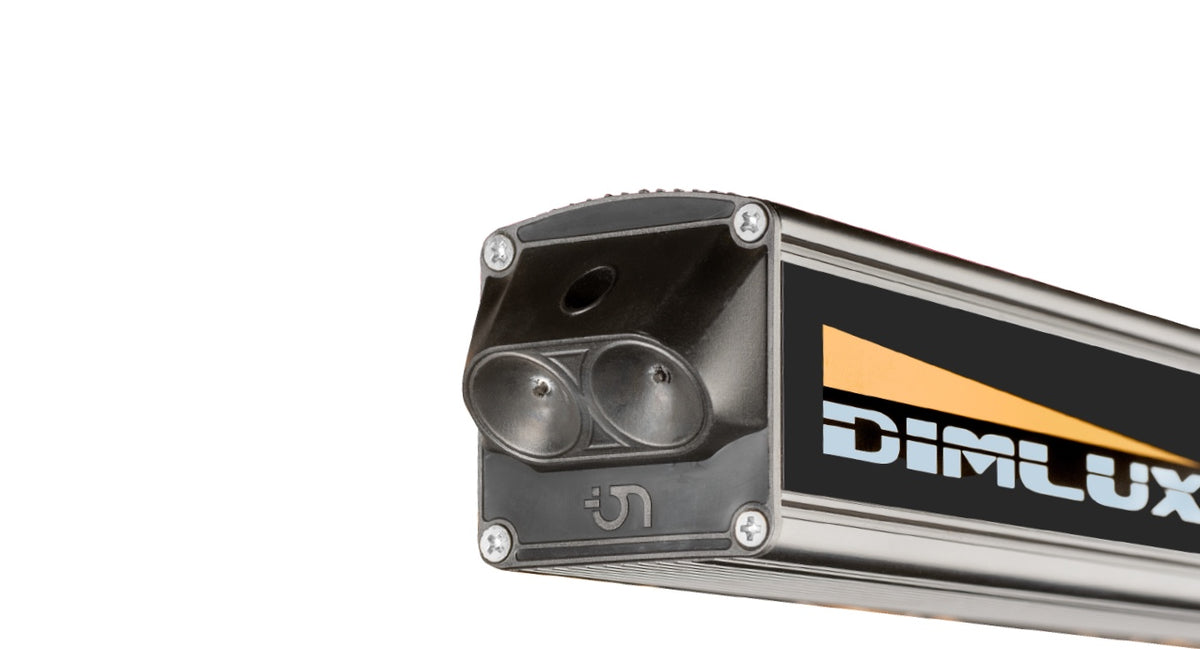

- Integrated ioniser and cold plasma generator to cut disease pressure, with ozone not detectable
- Three Smartports for Interlink, a plant temperature sensor and a light sensor
- Control it your way – Smart Remote, Dimlux Maxi Controller or the onboard controller
- Passive cooling and IP65, with an L90 lifetime of more than 50,000 hours
Disease Pressure and Stretch in High-Intensity Rooms
Dense, high-output grow rooms are where airborne fungal spores and pathogens spread fastest, and where the spectrum decides how plants stretch. The Xtreme MKII's ioniser treats the air at the light itself, reducing disease pressure to protect plant health and crop quality. The +NIR spectrum adds far-red alongside red: plants grow a little taller than under the standard version, in exchange for increased photosynthesis and photon absorption and a plant shape that Dimlux link to higher yields. Growers who want the most compact plants choose the standard model; growers chasing maximum output choose +NIR.
How to Use
- Hang at least 70 cm above the canopy, centred over a 1.62 x 1.62 m area
- Keep the room below 35°C – the fixture is passively cooled and rated to that ambient maximum
- Set spectrum and output on the display, or link to a Maxi Controller or Smart Remote through the Interlink Smartport
- Plug a plant temperature sensor into its Smartport so output can follow leaf temperature
- Power: accepts 208–400V AC, 50/60 Hz
Technical Specifications
- Power draw: 1,092W AC input
- PPF: 3,604 µmol/s (400–700 nm)
- Efficacy: 3.3 µmol/J PAR (400–700 nm) at 230–240V AC
- Fixture size: 119.3 x 112.4 x 5.7 cm
- Light source: 1050W LED
- Spectrum: adjustable PhytoVegSpec® indoor + NIR
- Total PPF (350–800 nm): 3,822 µmol/s
- Total efficacy (350–800 nm): 3.5 µmol/J at 230–240V AC
- Input voltage: 208–400V AC, 50/60 Hz
- Coverage: 1.62 x 1.62 m
- Beam angle: 90° x 120°
- Minimum height above canopy: 70 cm
- Optics: patented deep-penetration, ultra-high-transmittance lens
- Ioniser: patented negative ions and cold plasma; ozone not detectable
- Proximity sensor: Doppler radar
- Cooling: passive
- Max ambient temperature: 35°C
- Control: Smart Remote, Dimlux Maxi Controller or internal controller
- Smartports: 3 – Interlink, plant temperature sensor, light sensor
- Display: 1.54-inch 65k-colour IPS
- Lifetime: L90 over 50,000 hours
- IP rating: IP65
- Certifications: CE, UL 8800, UL 1598 Wet Location, DLC
- Weight: 20.8 kg
- Warranty: 5 years
Frequently Asked Questions
What is the difference between the standard and the +NIR version?
The +NIR fixture adds far-red, used together with red, for a more complete spectrum, more photosynthesis and higher photon absorption. Plants stretch a little more than under the standard version, so Dimlux suggest the standard model for growers who want the most compact plants. This listing is the +NIR version.
Can I run it from a Dimlux Maxi Controller?
Yes. The fixture can be controlled by the Dimlux Smart Remote, a Dimlux Maxi Controller or its own internal controller, linked through the Interlink Smartport.
Does the ioniser produce ozone?
No detectable ozone, according to Dimlux. The patented system uses negative ions and cold plasma to neutralise airborne pathogens and reduce disease pressure.
Does it need fans or extra cooling?
No. It is passively cooled with no fans, rated IP65, and works in rooms up to 35°C ambient.
How many fixtures do I need for my room?
Dimlux rate one fixture for an evenly lit 1.62 x 1.62 m area, hung at least 70 cm above the canopy, so divide your canopy into squares of that size.
