Description
Everything Between the Tank and the Brain
The IWS FlexiTank Pump & Pipework Kit - the kitbox - is the tank end of an IWS flood and drain system: the long-lead tank pump that sends solution to the brain, and the fill and drain pipework and tank connectors that plumb the reservoir in. Use it to replace a worn or damaged kit, or to connect an IWS FlexiTank or another reservoir to an IWS system. The Standard kit carries a NEWA Maxi-Jet MJ1000 and suits 16mm IWS Standard and Standard Remote systems; the Pro kit carries a NEWA Jet NJ3000 with the blue IWS connector and suits 25mm Pro Remote and Trident systems. Both are made for current IWS tanks with a single drain connection, and IWS make a kit for each FlexiTank size, so choose the size of the tank it will sit in. A pump that fades or a split fill line shows up quickly as slow, uneven floods, so keeping a genuine kit to hand avoids lost feeds.
What's Included

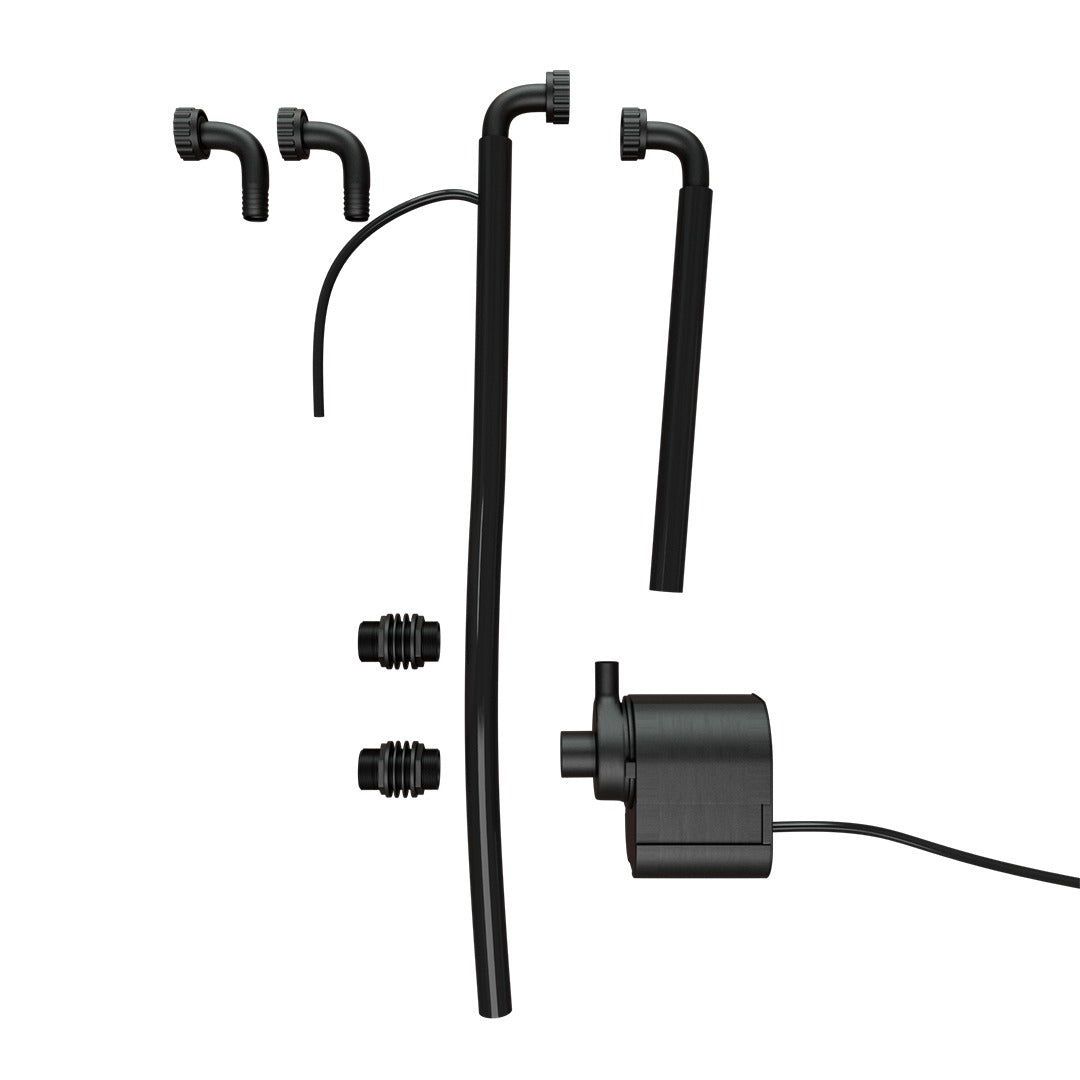

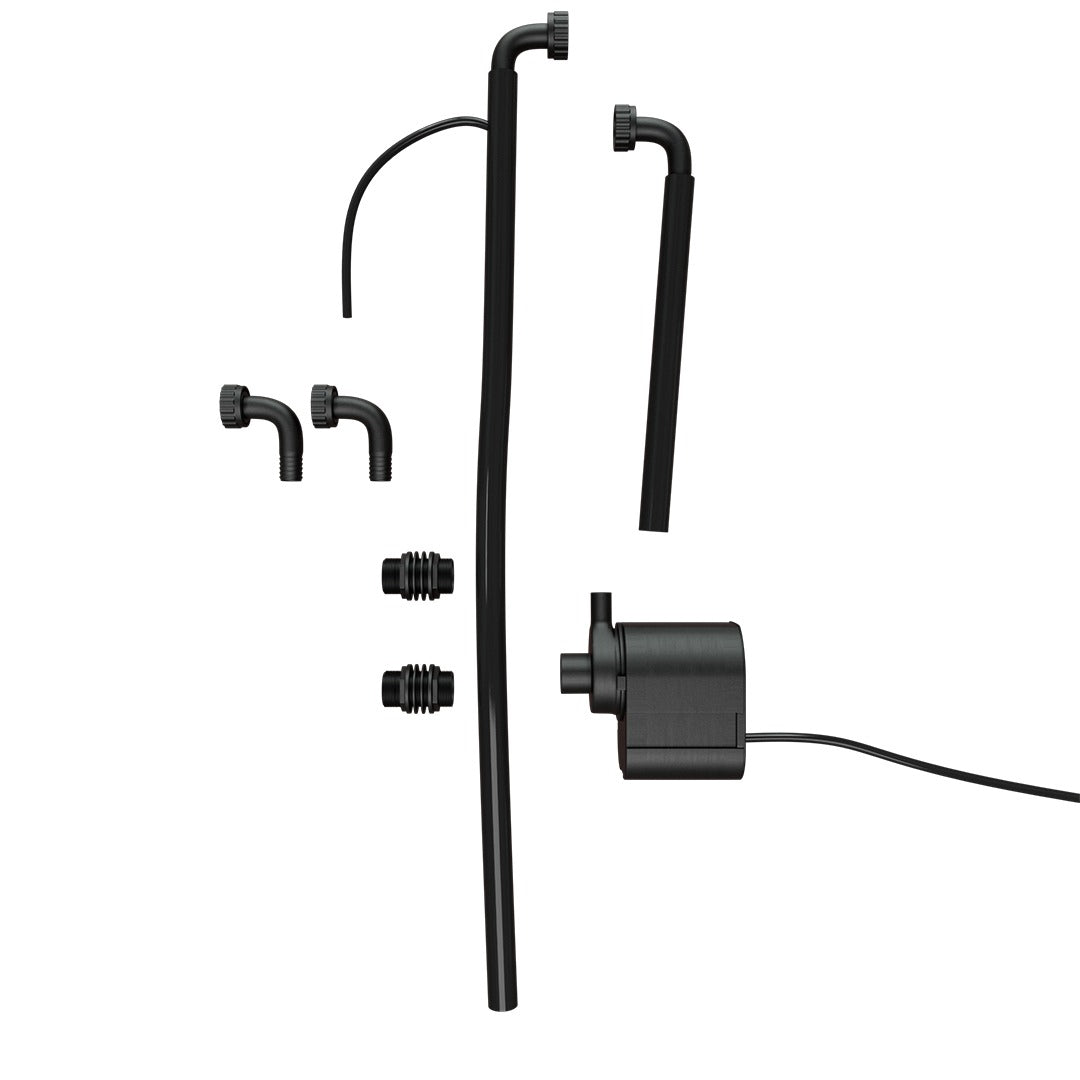

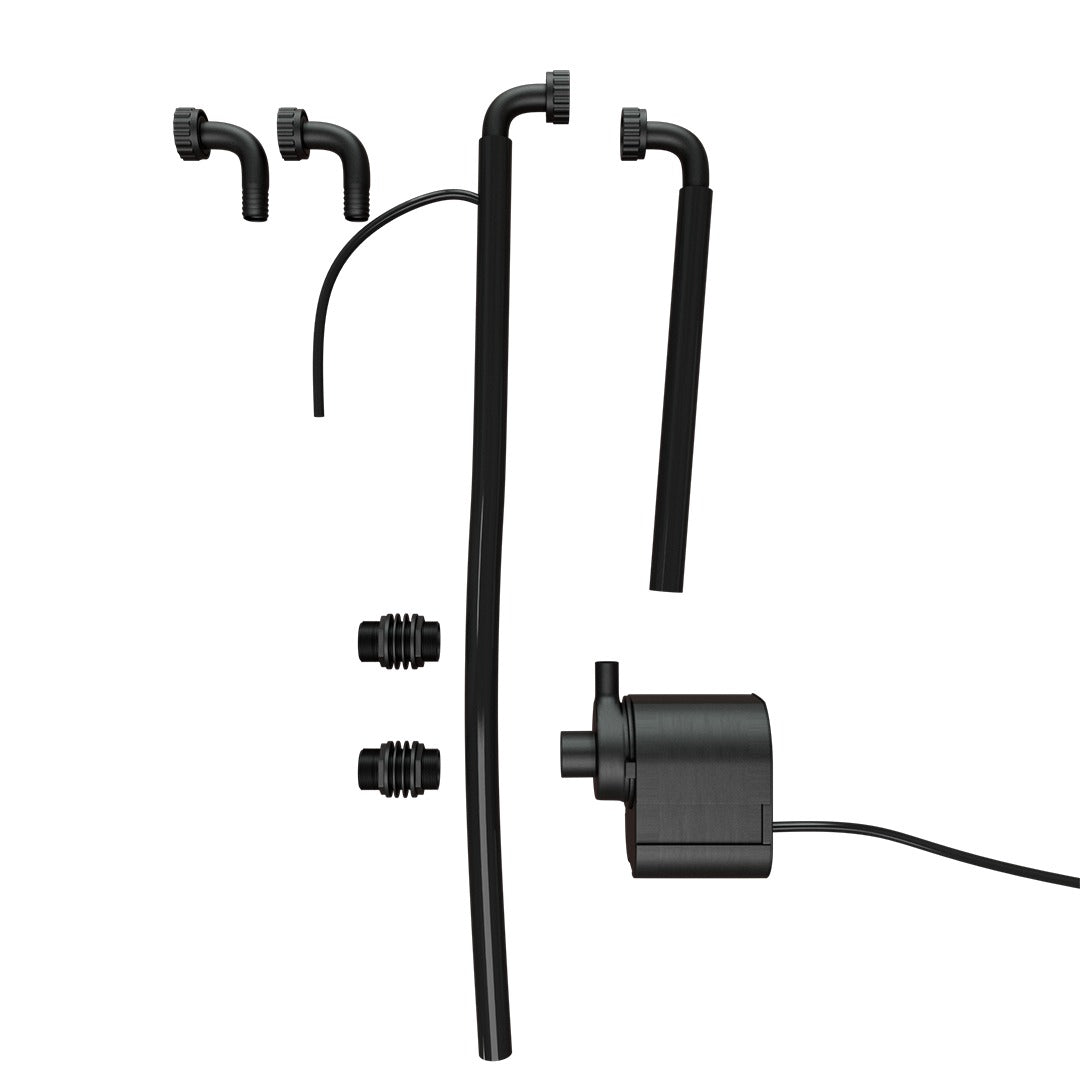

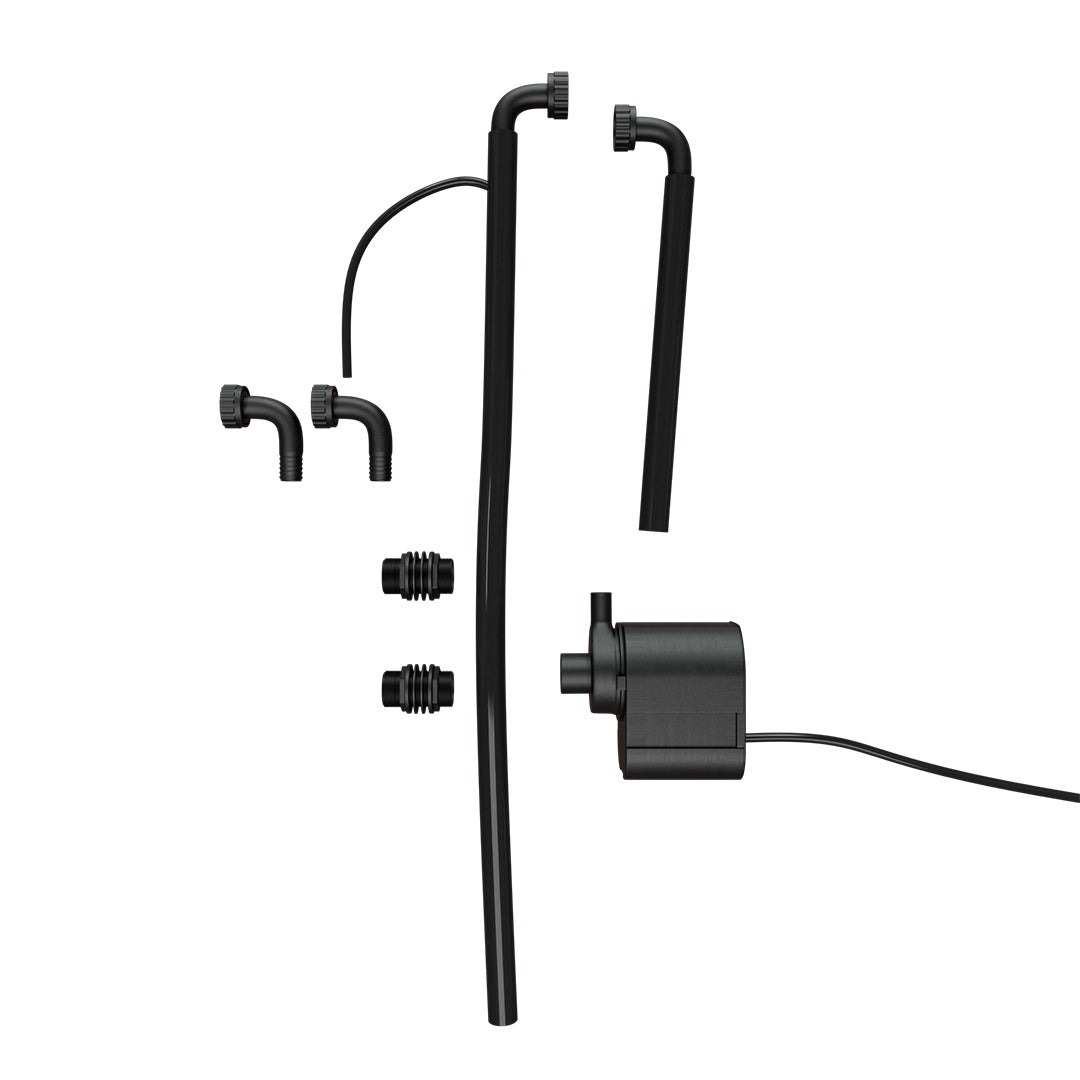

- Standard 16mm kit: long-lead MJ1000 pump with fill pipe, anti-syphon tube and grommet; long fill pipe; long and short drain pipes; two threaded connectors; four washers

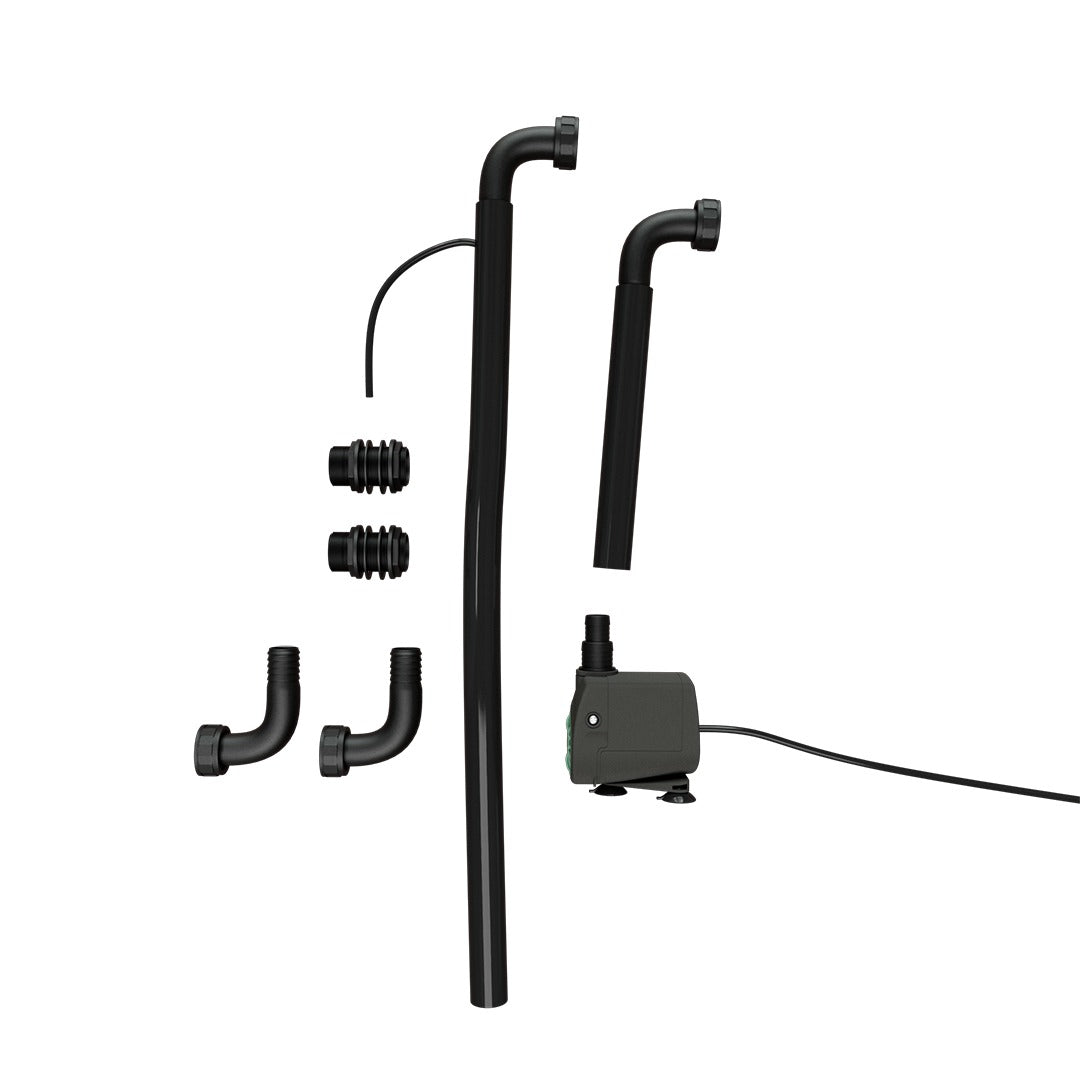

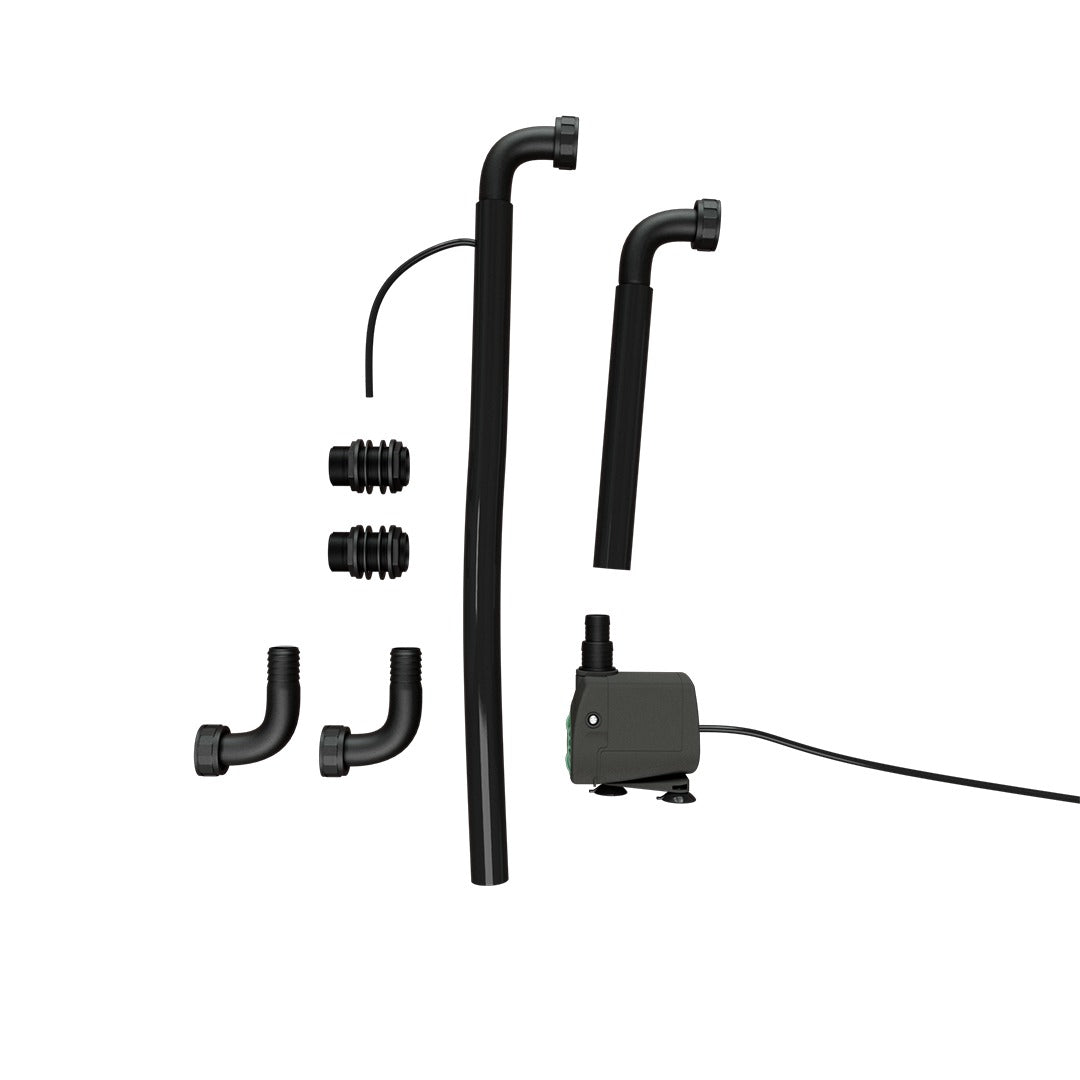

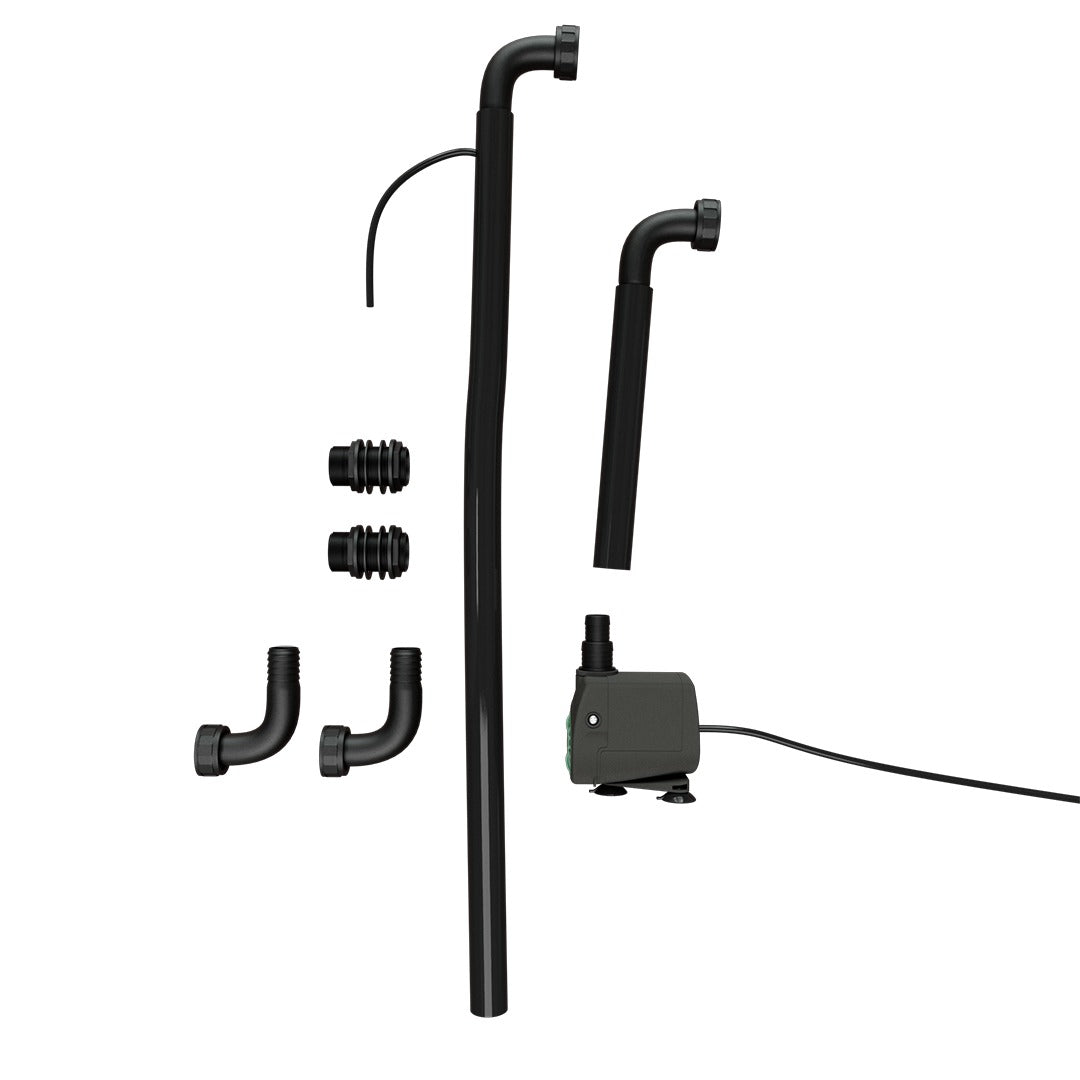

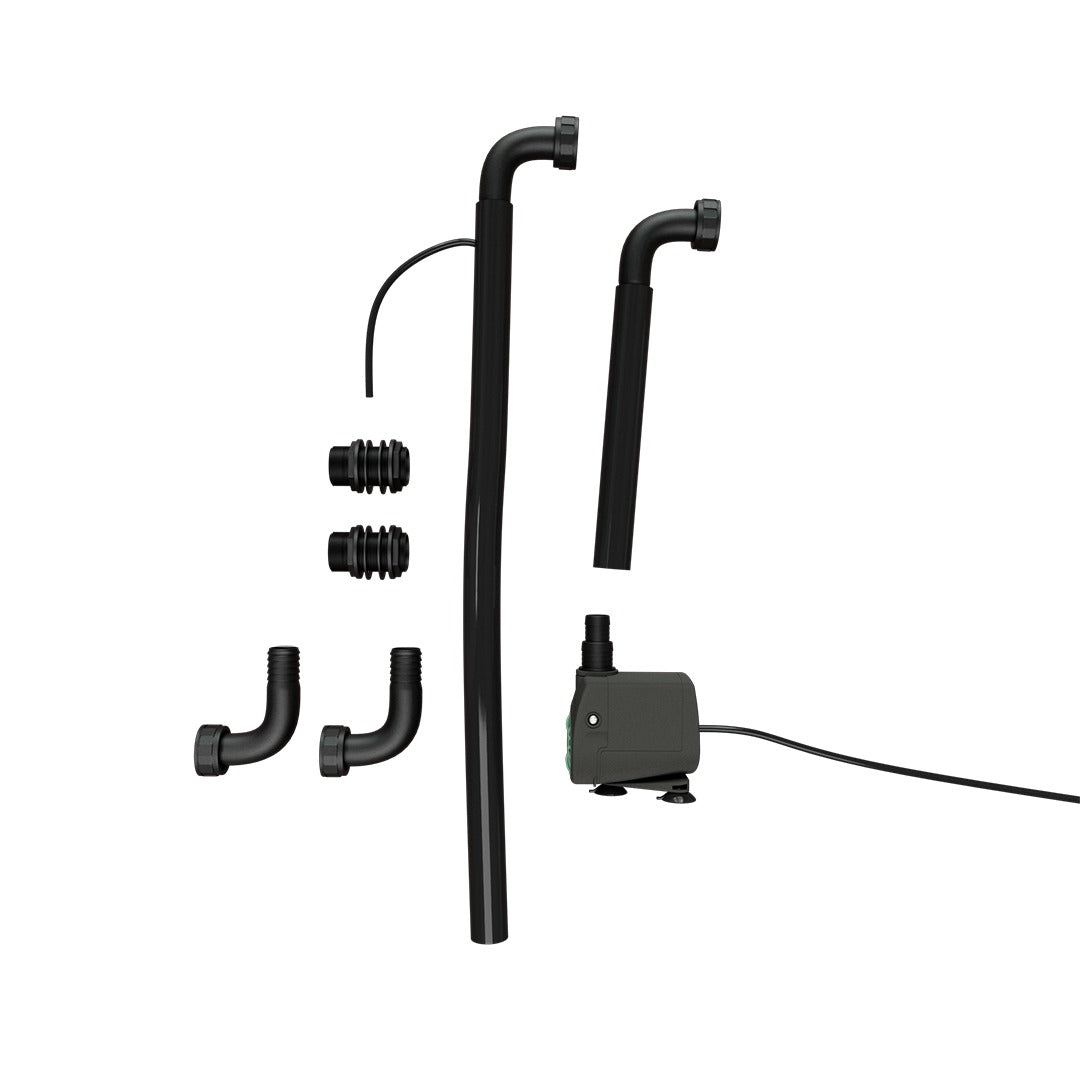

- Pro 25mm kit: long-lead NJ3000 pump with blue IWS connector; anti-syphon fill pipe; long fill pipe; long and short drain pipes; two threaded connectors; four washers
- FlexiTank not included
Key Benefits
- Genuine IWS parts, matched to the IWS brain and FlexiTank
- Plug-in power: the pump connects straight to the IWS brain
- Anti-syphon fill pipe stops the tank siphoning back between floods
- Two pump sizes: 1,000 L/h for Standard systems, up to 3,000 L/h for Pro and Trident
- Kit per tank size from 100L to 750L
How to Use
- Fit the threaded connectors through the tank with a washer either side; hand-tighten, then nip up gently
- Connect the fill and drain pipes from the tank to the brain
- Stand the pump on the tank floor and plug its lead into the brain
- Fill the tank with water and run a test flood and drain before adding nutrients
Technical Specifications
- Brand: IWS (Global Air Supplies)
- Type: tank pump and pipework kit to connect a FlexiTank to an IWS system

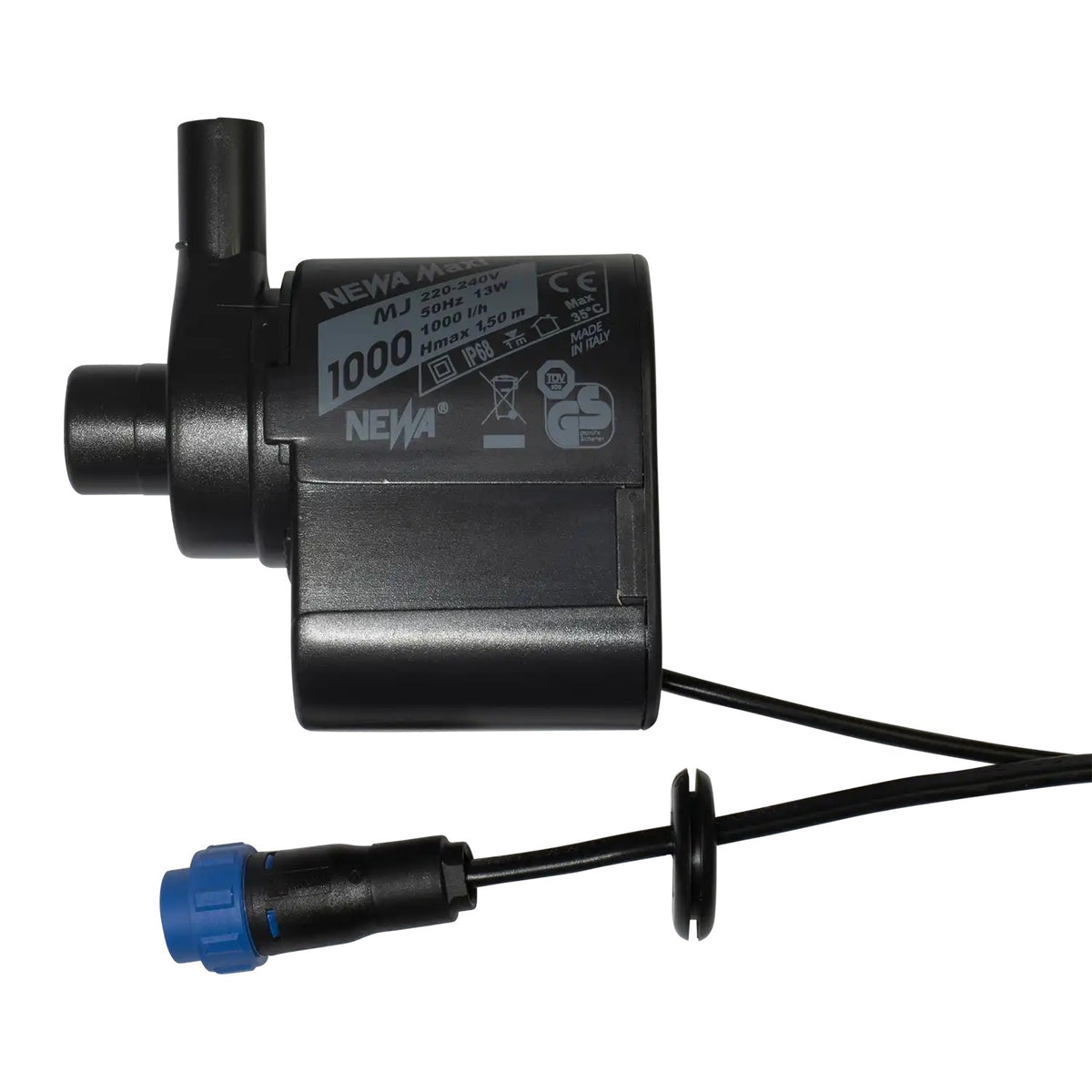

- Pump connection: long-lead assembly with Bulgin connector and grommet, plugs into the IWS control unit
- Supply: 230 V, 50 Hz
- Compatible with: Standard kits: IWS Flood & Drain Standard and Standard Remote; Pro kits: Flood & Drain Pro Remote and Trident
- Not included: FlexiTank
| By size | Standard 16mm / 100L | Standard 16mm / 250L | Standard 16mm / 400L |
|---|---|---|---|
| Pump | NEWA Maxi MJ1000 | ||
| Flow | 1,000 L/h | ||
| Max head | 1.5 m | ||
| Pipework | 16 mm | ||
| For tank | 100 L FlexiTank | 250 L FlexiTank | 400 L FlexiTank |
| By size | Standard 16mm / 750L | Pro 25mm / 100L | Pro 25mm / 250L |
|---|---|---|---|
| Pump | NEWA Maxi MJ1000 | NEWA Jet NJ3000 | NEWA Jet NJ3000 |
| Flow | 1,000 L/h | 1,200-3,000 L/h | 1,200-3,000 L/h |
| Power | – | 55 W | 55 W |
| Max head | 1.5 m | 2.9 m | 2.9 m |
| Pipework | 16 mm | 25 mm | 25 mm |
| For tank | 750 L FlexiTank | 100 L FlexiTank | 250 L FlexiTank |
| By size | Pro 25mm / 400L | Pro 25mm / 750L |
|---|---|---|
| Pump | NEWA Jet NJ3000 | |
| Flow | 1,200-3,000 L/h | |
| Power | 55 W | |
| Max head | 2.9 m | |
| Pipework | 25 mm | |
| For tank | 400 L FlexiTank | 750 L FlexiTank |
Frequently Asked Questions
Standard or Pro kit?
Match the pipework of your system: the Standard kit for 16mm Standard and Standard Remote systems, the Pro kit for 25mm Pro Remote and Trident systems.
Why is the kit sold by tank size?
IWS make a kit for each FlexiTank size, so pick the one that matches your tank. The price is the same for every size.
Will it fit an older IWS tank with two drain holes?
These kits are for the current single-drain IWS tanks. Older two-hole tanks were made for the earlier Pro brains with two drain pumps.
