Description
Flood and Drain You Can Set to the Minute

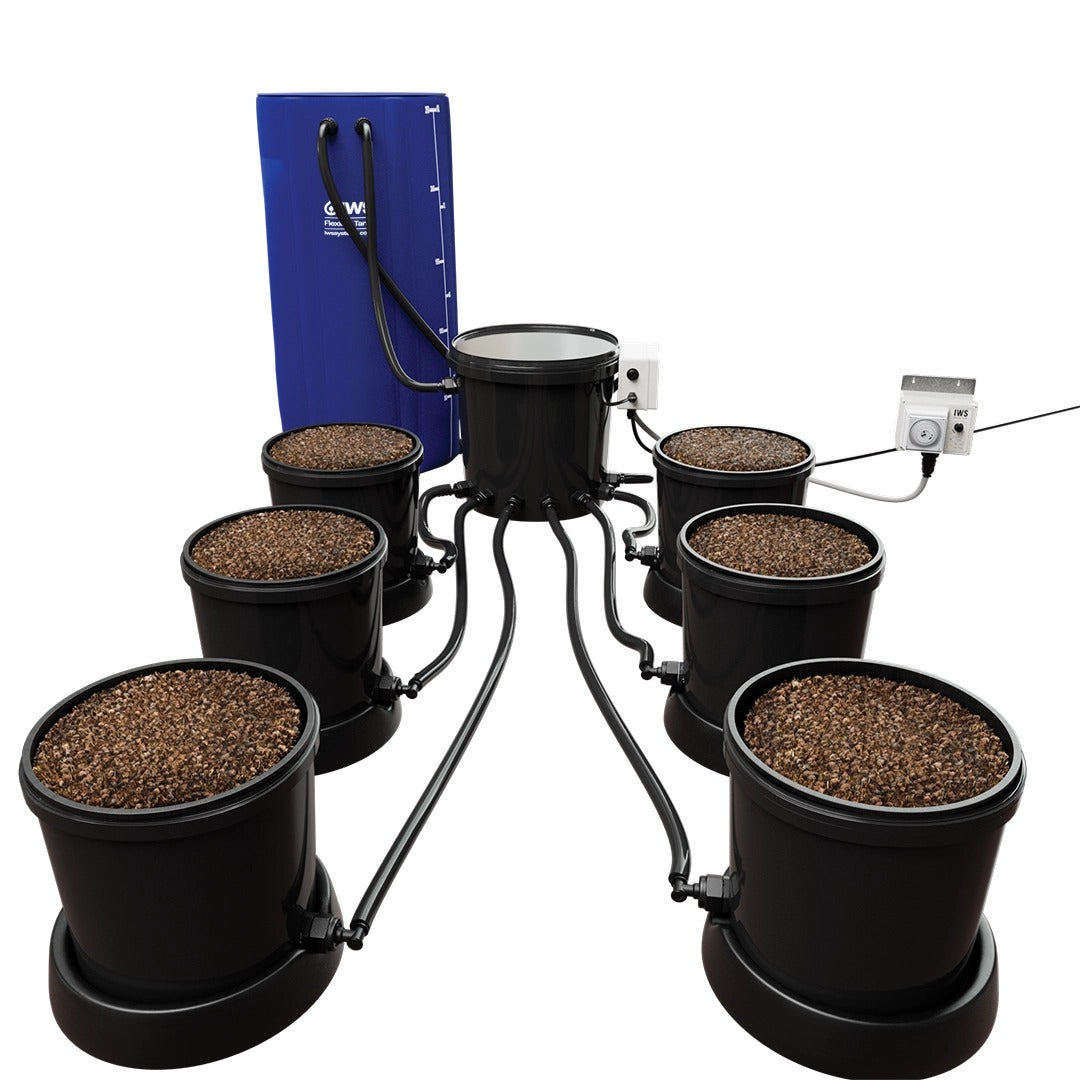

The IWS Flood and Drain Standard Remote 16mm runs the proven IWS flood and drain cycle with a separate remote minute timer, so you decide exactly how long the root zone sits flooded - anywhere from 1 to 60 minutes - and you can change it from outside the grow room. At each feed, solution is pumped from the IWS FlexiTank into the control unit, or brain, and the pots joined to it by 16mm pipework fill until a float in the brain stops the flow at pot height. When the timed feed ends, everything drains back to the tank. Each flood forces stale air out of the medium and each drain draws fresh air in, so roots stay oxygenated, take up nutrients readily and avoid the root rot and slow growth that come from a medium left saturated. This kit also adds pot stands, which lift every pot for extra drainage from the root zone, and copper discs for root control, in kits of 6 to 48 pots fed from one tank.
What's Included
- IWS Remote control unit (brain) with its remote 1 minute timer and connection cable

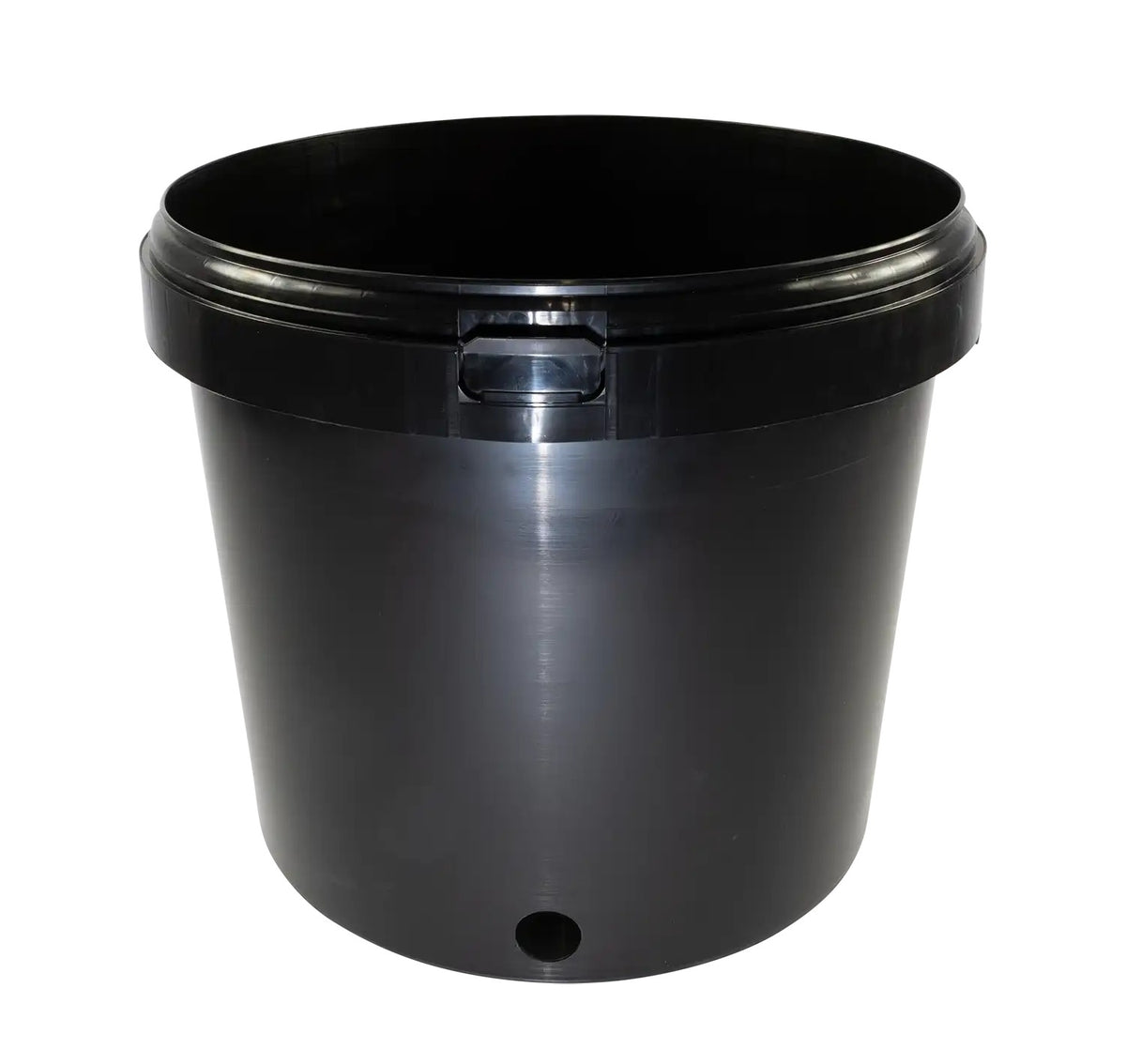

- IWS 10 litre outer pots, one per plant

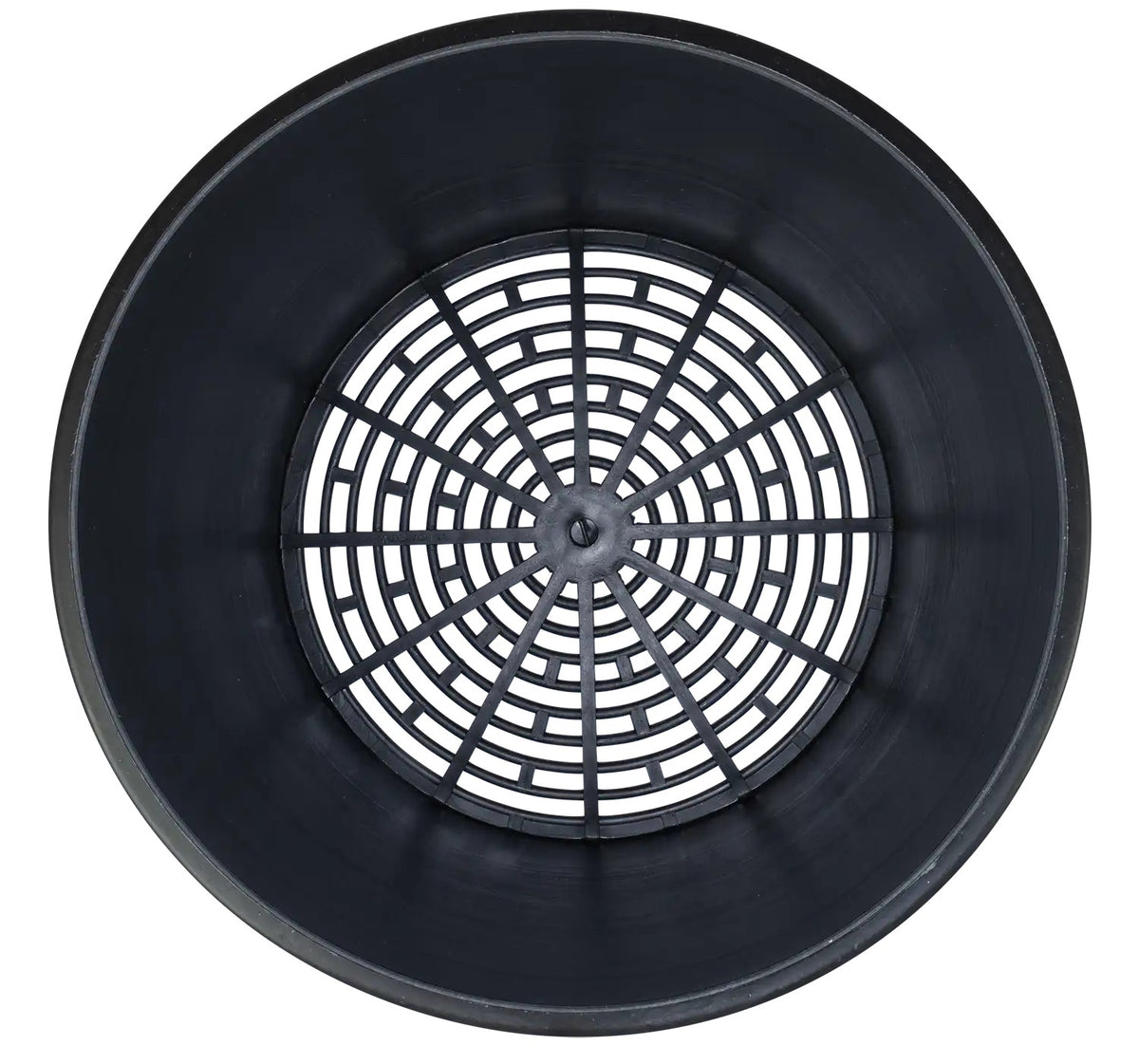

- IWS 9.5 litre punched inner pots, one per plant

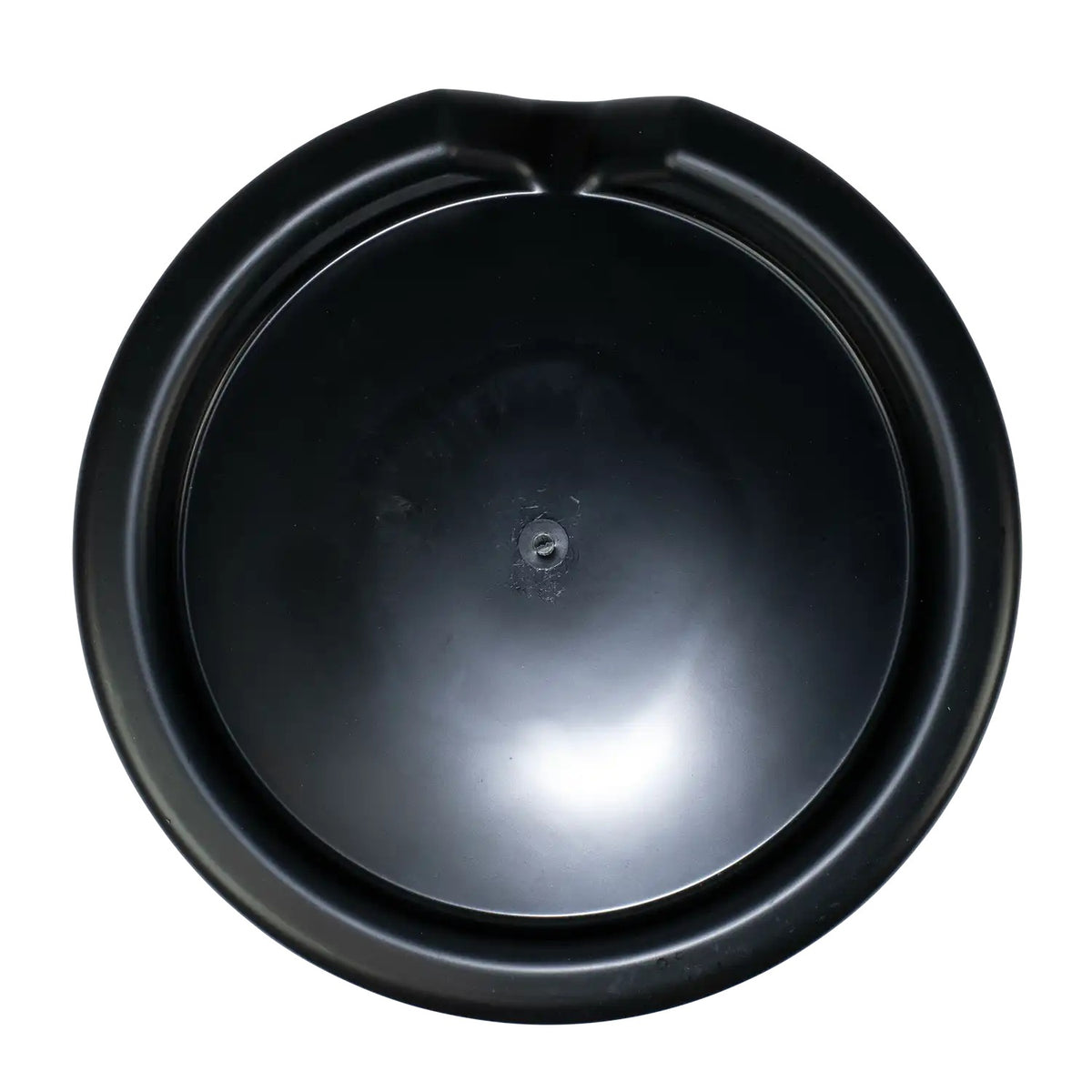

- Pot stands, one per pot

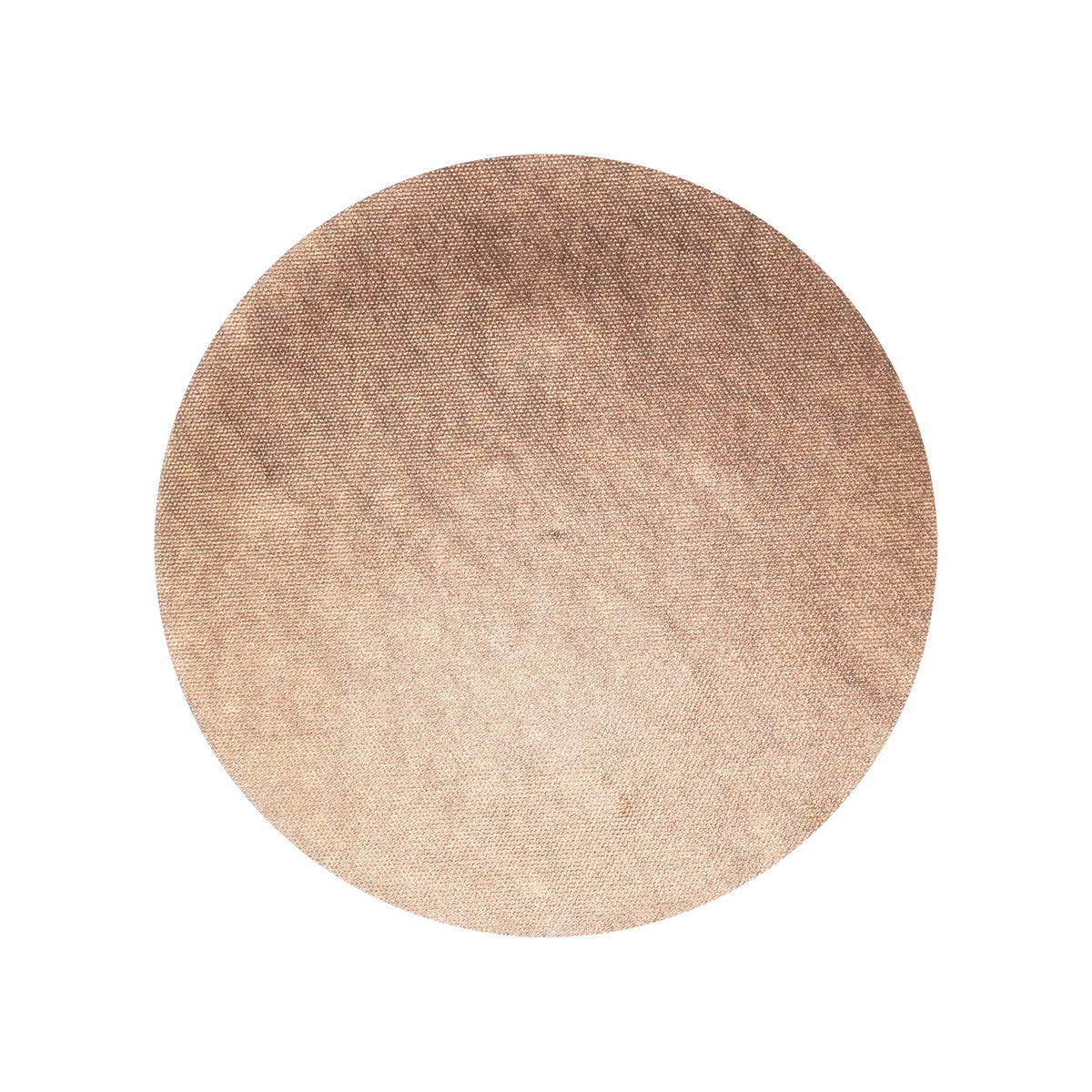

- Copper discs for root control

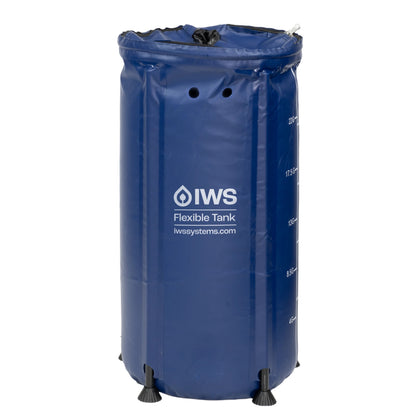

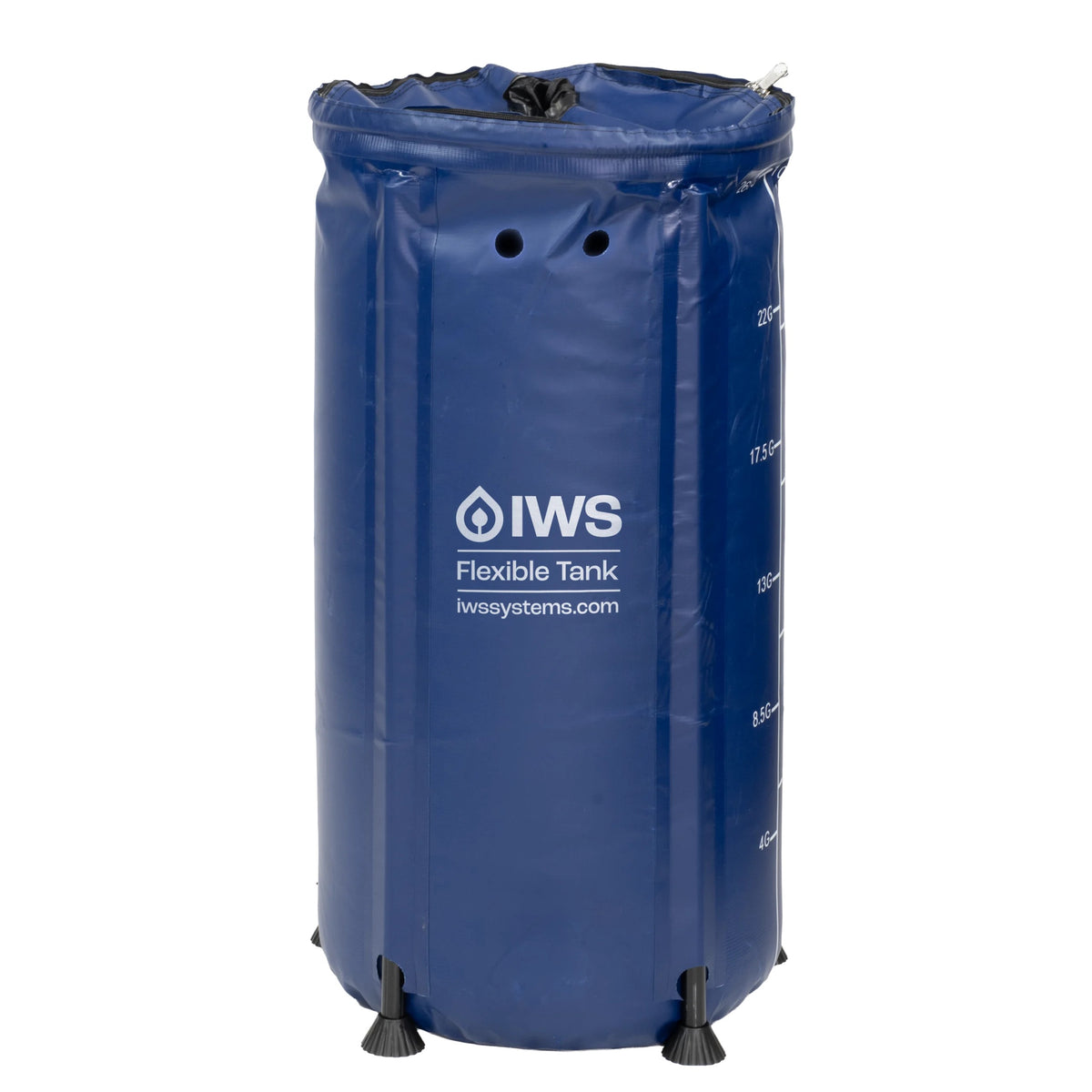

- IWS FlexiTank sized to the kit, with its tank pump and fill and drain pipework

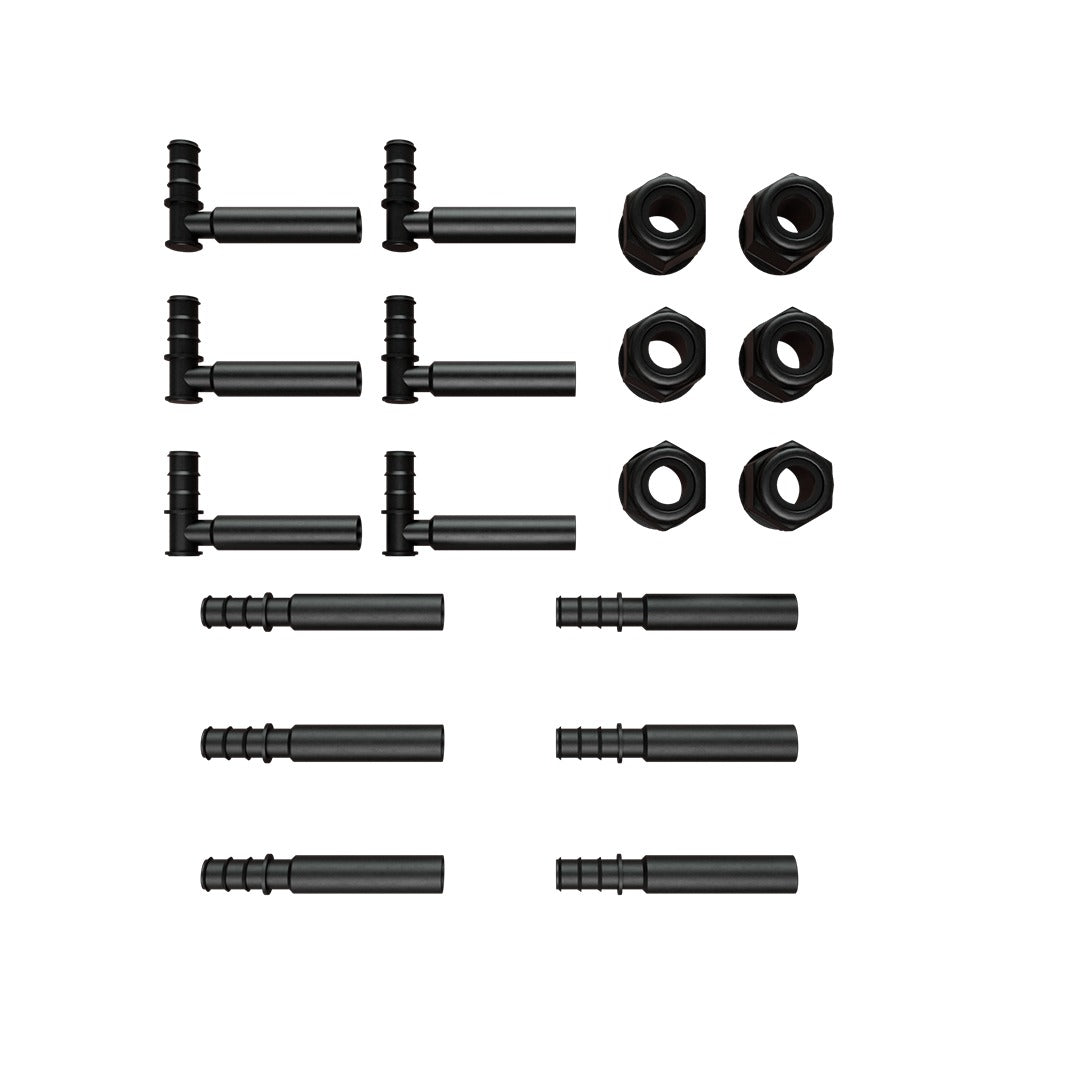

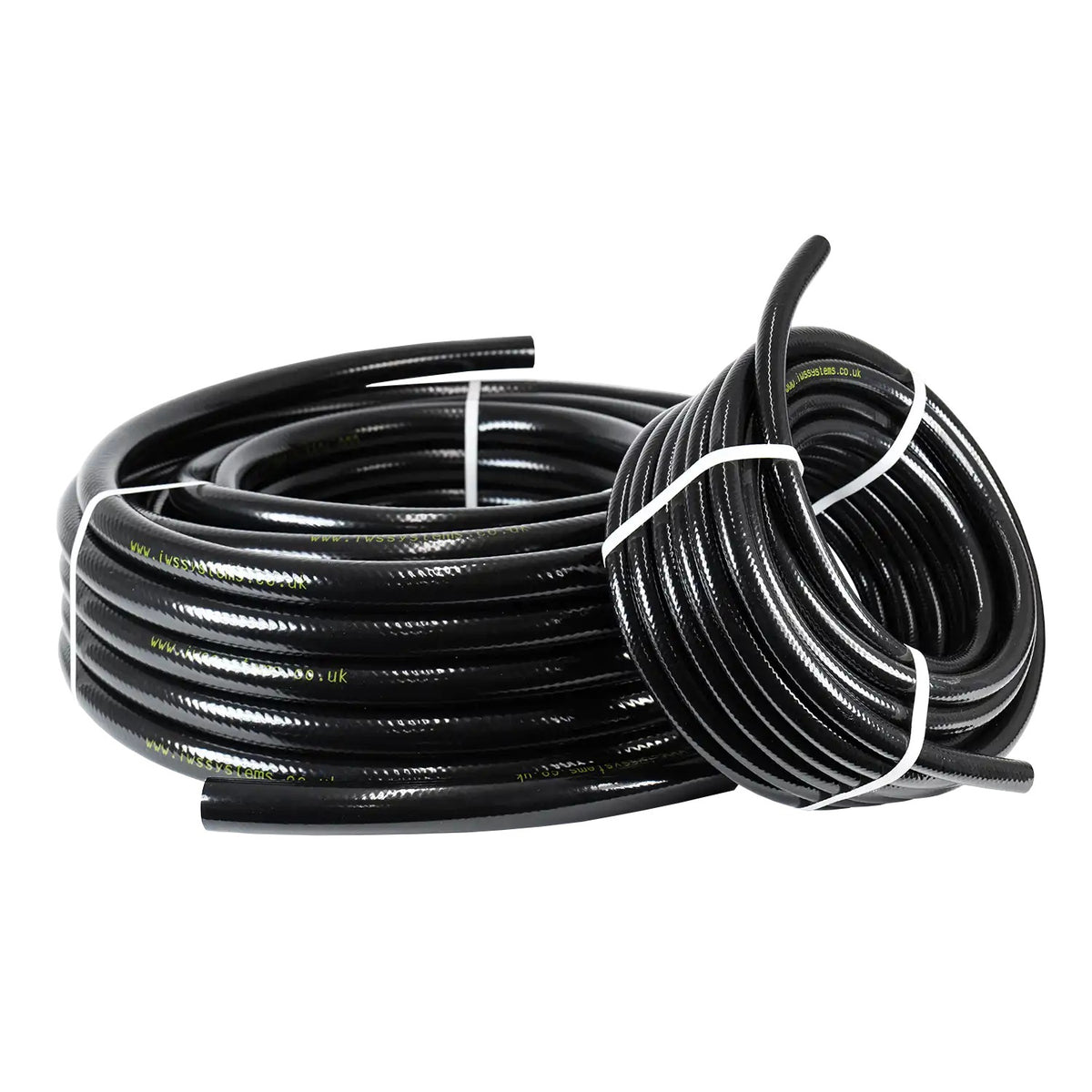

- 16mm pipe and fittings to connect every pot
Key Benefits
- Flood times from 1 to 60 minutes, set on a dial and cancellable at any moment
- Timer outside the room: adjust feeds without opening the tent or disturbing the lights
- Status at a glance: power, feed pump and drain LEDs on the timer
- Pot stands raise each pot for better drainage from the root zone
- Copper discs help keep roots in check inside the pots
- Automatic flood height from the brain's float, and one tank for every pot
How to Use
- Stand the pots on their stands and the brain on the same level floor, then connect each pot with the 16mm pipe and fittings
- Set up the FlexiTank and its pump, and run the timer cable from the brain to where you want the timer
- Fill the punched inner pots with clay pebbles, or a pebble and coco mix if you want to flood less often
- Turn the dial to the flood duration you want, from 1 to 60 minutes
- Use 'O' to hold feeds off, the centre position to follow the timer and 'I' to run permanently on
- Check pH and EC in the tank at each top-up and flush the system with clean water between crops
Pallet Delivery
This is a large system and ships on a pallet. A £40.00 pallet delivery surcharge applies to UK mainland orders, and £49.95 to Northern Ireland. The surcharge is added at checkout, and free delivery over £60 does not apply to pallet items.
Technical Specifications
- Brand: IWS
- System type: Recirculating flood and drain (ebb and flow), Standard Remote
- Control: IWS Remote control unit (brain) with remote 1 minute timer
- Timer: Feed duration dial 1 to 60 minutes; power, feed pump and drain LEDs; O / timer / I override
- Pipework: 16mm (13mm internal diameter)
- Outer pots: 10 litre, on pot stands
- Inner pots: 9.5 litre punched pots (6.5 litre Aqua and Culture inner pots sold separately)
- Root control: Copper discs
- 6 pot: 100L FlexiTank
- 12, 18 and 24 pot: 250L FlexiTank
- 36 and 48 pot: 400L FlexiTank
- FlexiTank size, assembled: 100L 43cm diameter x 78cm high; 400L 68cm diameter x 111cm high
- Tank pump: IWS MJ1000 long-lead assembly, 1,000 L/h
- Recommended for: 6 to 24 pots (IWS); kits run to 48 pots
- Suitable media: Clay pebbles, or clay pebbles mixed with coco
- Delivery: Ships on a pallet, £40.00 surcharge applies
Frequently Asked Questions
How is this different from the Standard system?
The Standard has a 15-minute segmental timer built into the brain. The Standard Remote has a separate minute timer for precise flood duration, which can sit outside the grow room, and it adds pot stands and copper discs. Pots, pipework and FlexiTank are the same.
Why use pot stands?
The stands raise each pot off the floor, which lets the root zone drain more completely between floods.
What do the copper discs do?
Roots that touch copper stop growing at that point, so the discs help keep roots from matting at the base of the pot and around the outlet.
Should I choose the Pro Remote for a large room?
IWS recommend the Standard Remote for 6 to 24 pots. The Pro Remote has the same remote timer with 25mm pipework and a 3,000 L/h pump, so larger systems fill and drain faster.
