Description
Complete SANlight EVO Lighting Sets, Matched to Your Tent

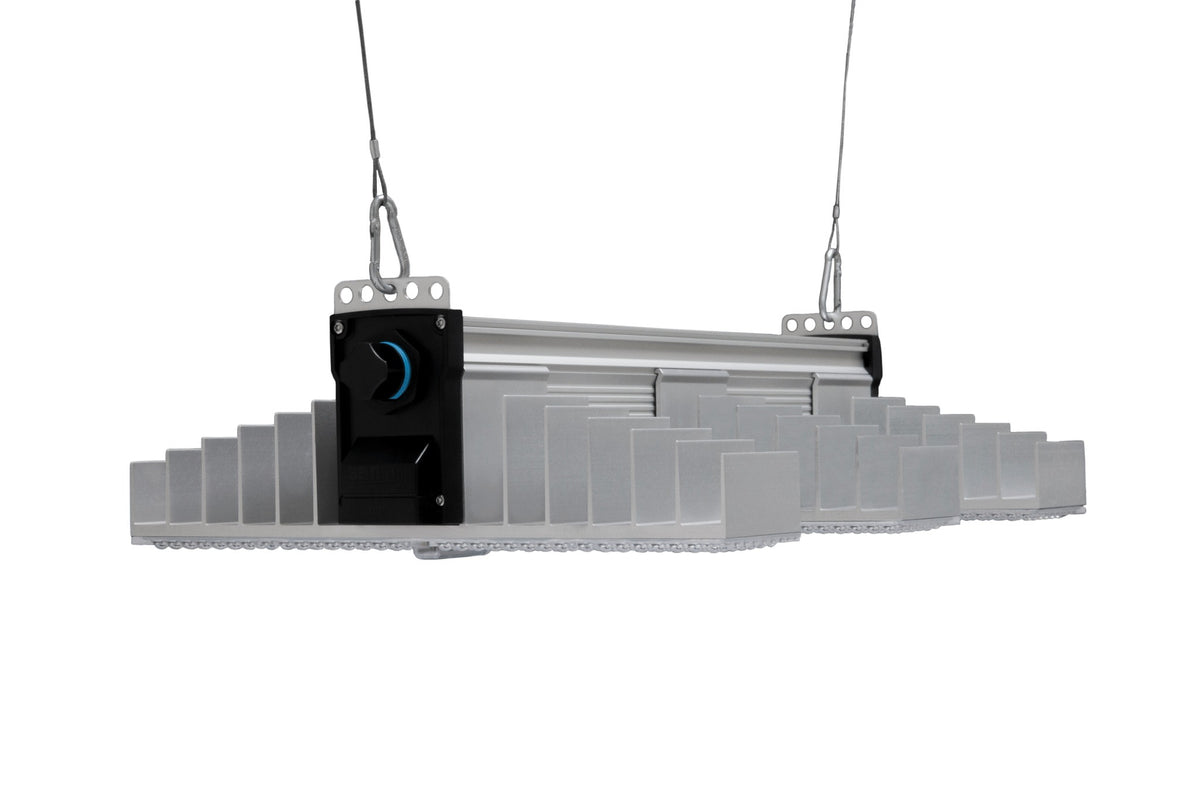

The Sanlight EVO Boxed Sets put SANlight's passively cooled, IP65-rated EVO LED fixtures in one box with the mains lead, hangers and SANlight M-Dimmer needed to light a given tent size – 60 x 60cm, 100 x 100cm, 120 x 120cm or 150 x 150cm. Each set follows SANlight's own recommendation for that footprint, so the number of fixtures, their length and their output are already worked out. The Sanlight EVO 3-60 Boxed Set bundles the compact EVO 3-60 LED fixture with the hardware needed to get it running in a 60 x 60cm tent, straight from the box. It's built around the same high-efficiency Austrian-made EVO 3 LED bars as the standalone fixture, on a passive aluminium heatsink with no fans. The larger sets use two fixtures each, hung either side of the tent so the centre stays free for ducting and a carbon filter.
What's Included

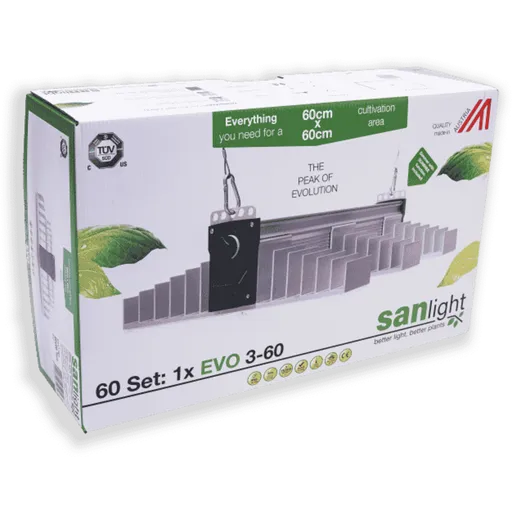

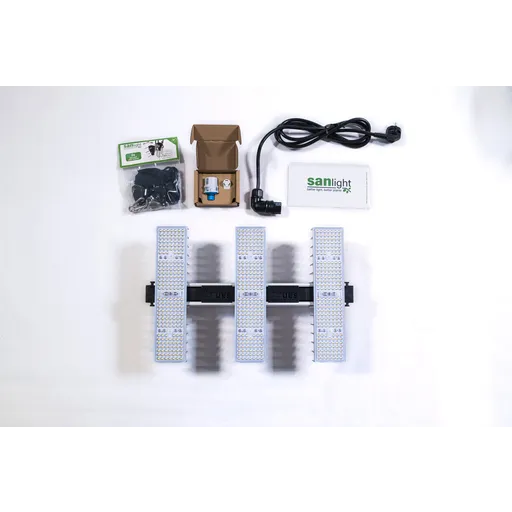

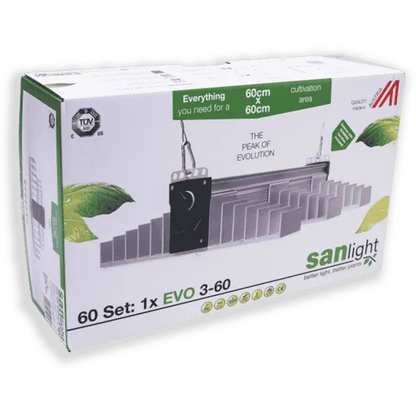

- 60 x 60cm set: 1 x SANlight EVO 3-60, 1 x mains power cord, 1 pair of SANlight hangers (34kg load capacity each), 1 x SANlight M-Dimmer

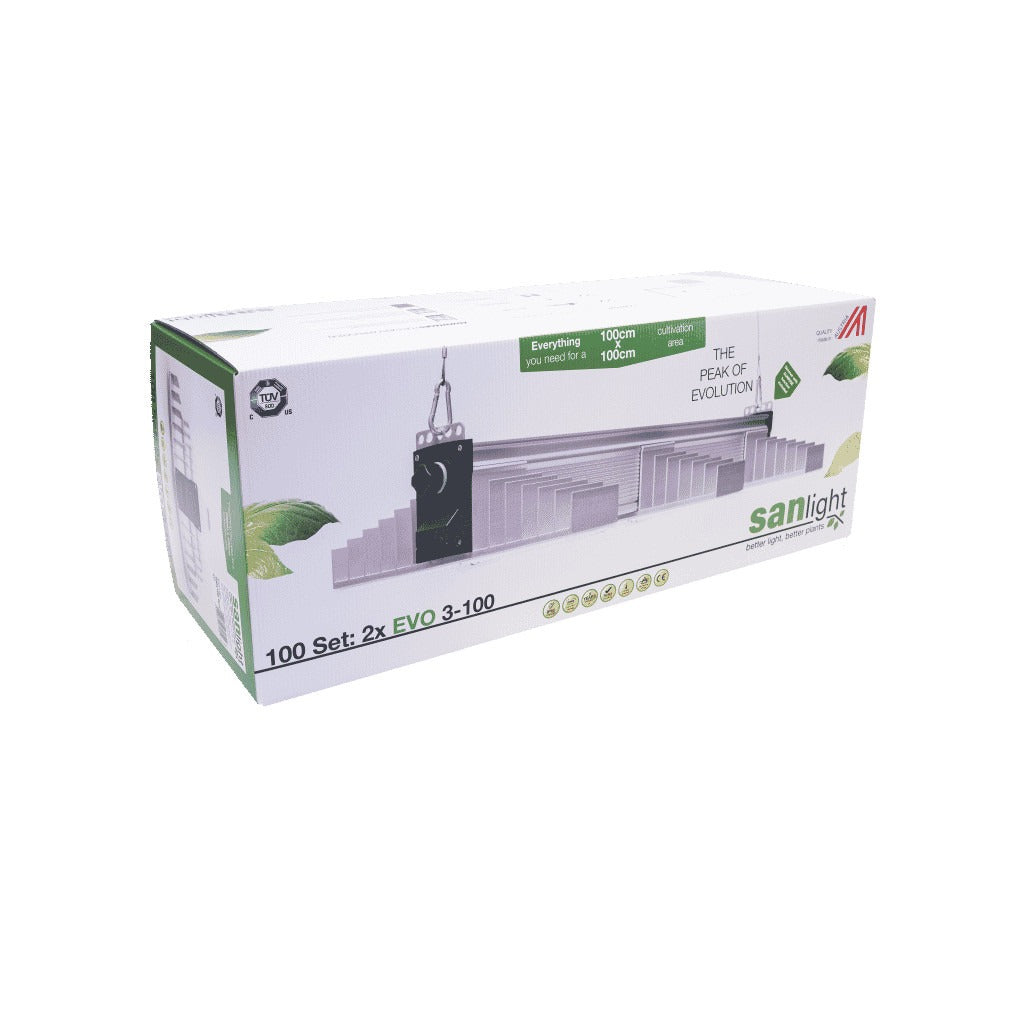

- 100 x 100cm set: 2 x SANlight EVO 3-100, 1 x Y-power cord (3.30m in total: 1.80m plug to splitter, 1.50m splitter to each fixture), 2 pairs of SANlight hangers, 2 x SANlight M-Dimmer

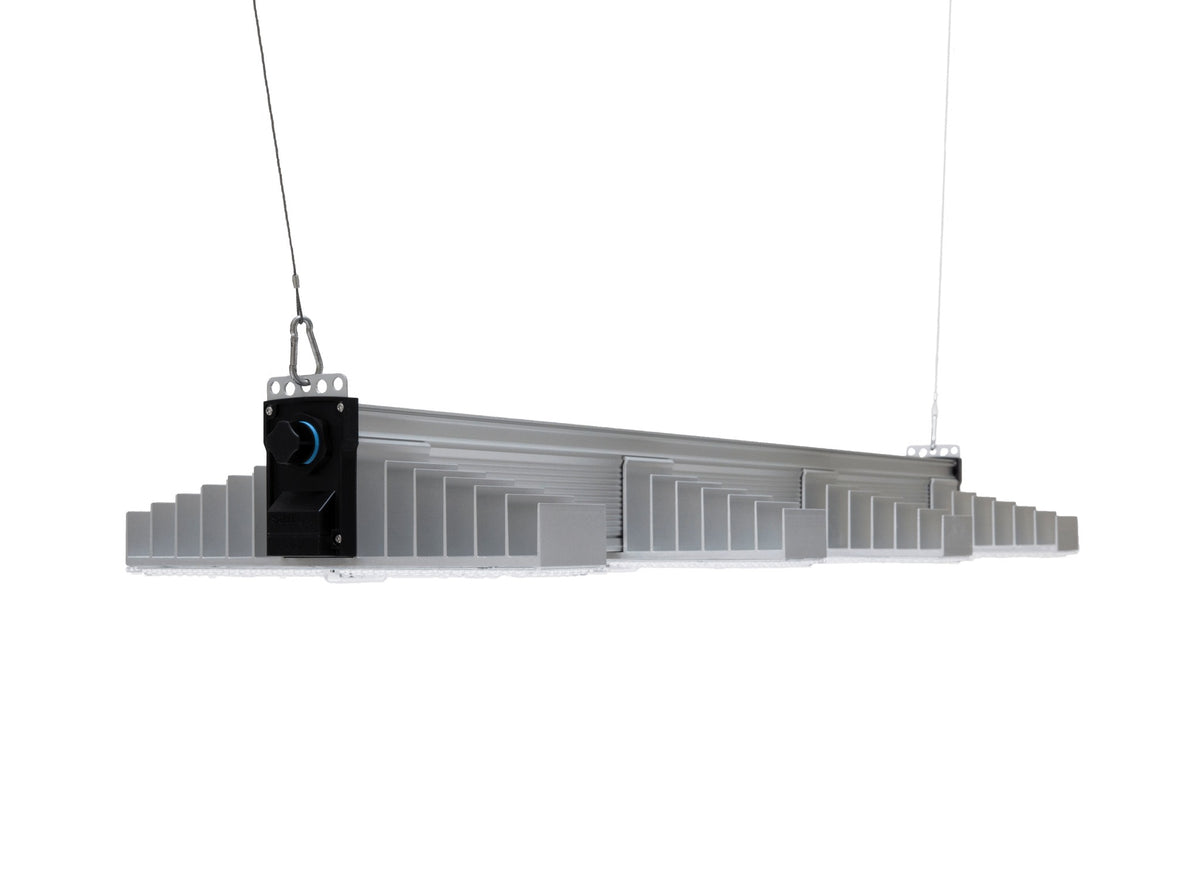

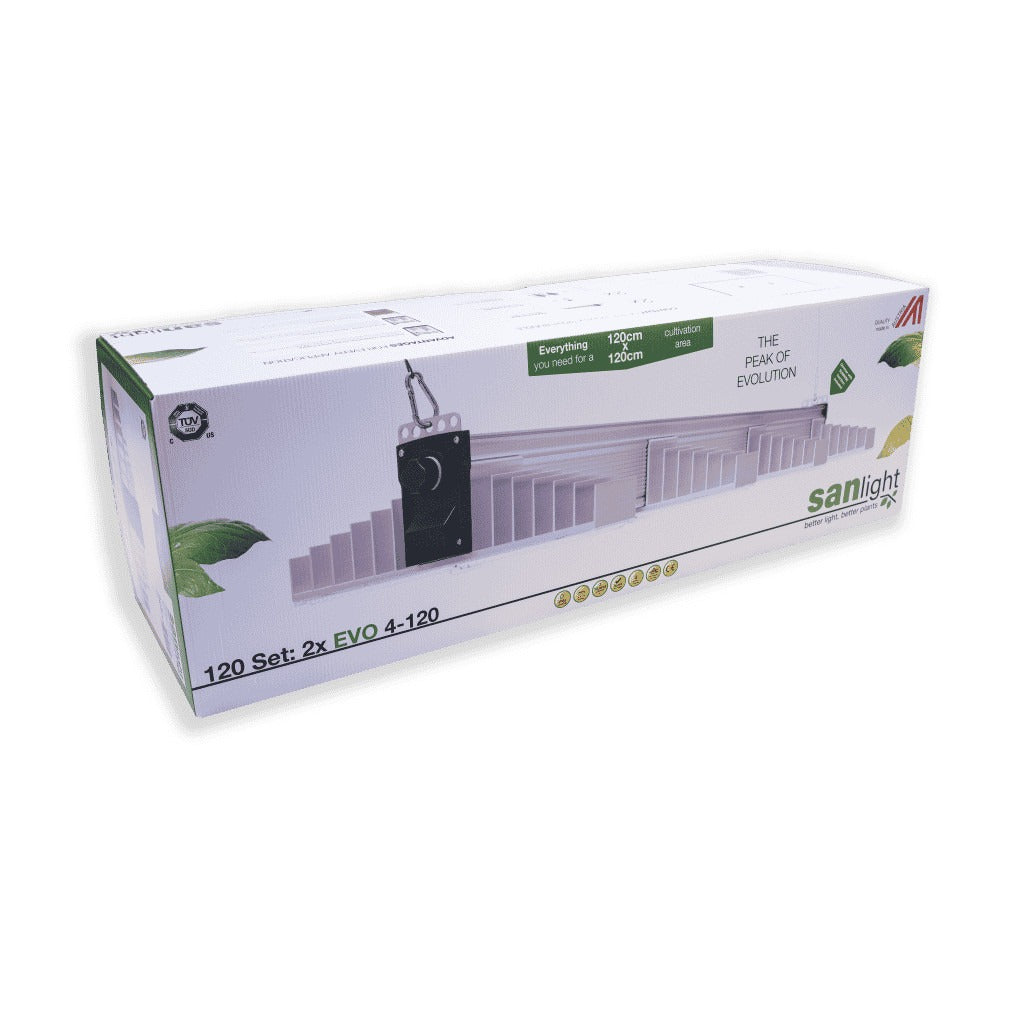

- 120 x 120cm set: 2 x SANlight EVO 4-120, 1 x Y-power cord (3.30m), 2 pairs of SANlight hangers, 2 x SANlight M-Dimmer

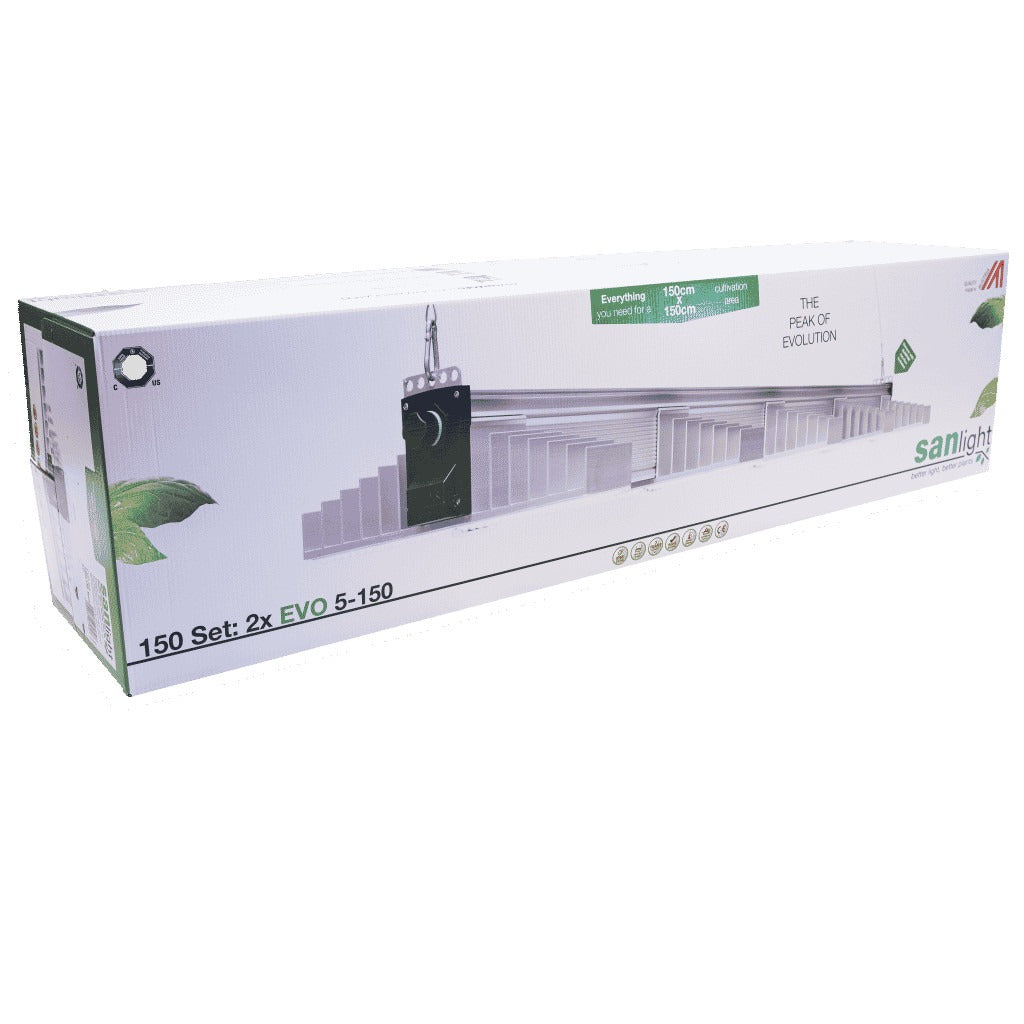

- 150 x 150cm set: 2 x SANlight EVO 5-150, 1 x Y-power cord (3.30m), 2 pairs of SANlight hangers, 2 x SANlight M-Dimmer
Key Benefits
- Complete 60x60cm set - fixture and hanging hardware in one box – and the same applies to every larger set, down to the Y-cord that feeds both fixtures from one socket
- High-efficiency LED bars - strong output for the power drawn: over 3 µmol/J at module level, with OSRAM red and Seoul Semiconductor white LEDs
- Passive cooling - aluminium heatsink, no fans to fail or add noise
- Compact EVO 3 footprint - matched to a 60 x 60cm growing area; the 100, 120 and 150 sets step up to longer EVO 3, EVO 4 and EVO 5 fixtures
- Ready to hang - straight onto tent poles or a light-mover
- IP65 sealed – water jets and dust cannot harm the fixtures, and each light module is hermetically sealed against cleaning and crop-protection products

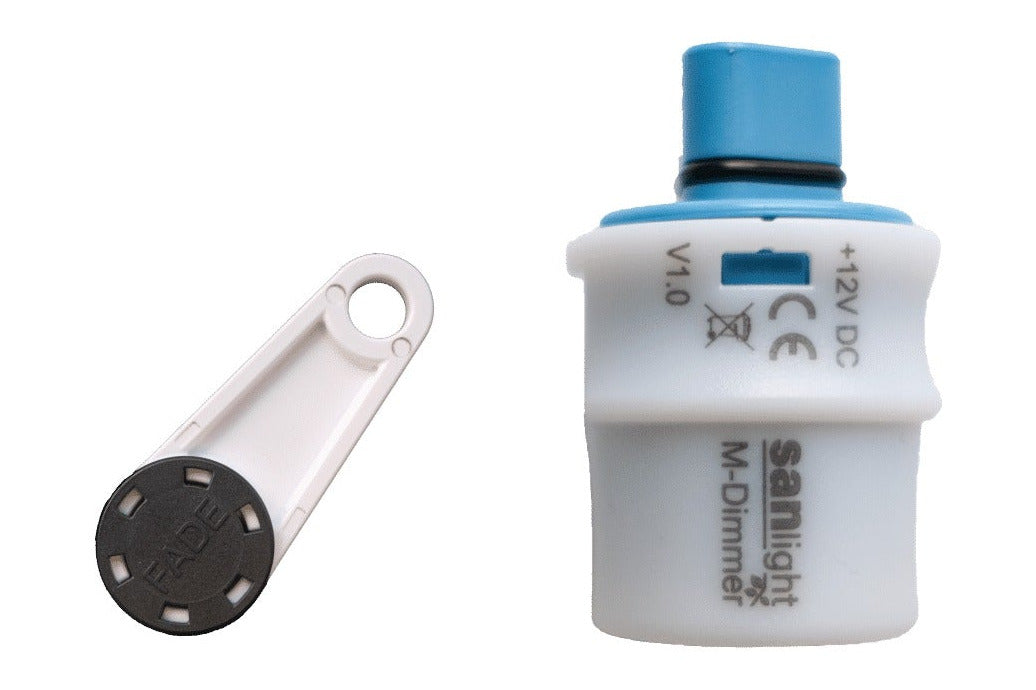

- Dimmer in every box – one magnetic M-Dimmer per fixture, plus a 0-10V input for external controllers
Buying a fixture and then sourcing the right hanging kit and cabling separately is easy to get wrong, and a mismatched cable or bracket holds up a first grow. A boxed set removes that step, with everything sized to the tent it's built for. It also avoids the commoner lighting mistake of an undersized fixture: SANlight measured an average of 895 µmol/m²/s across a 60 x 60cm tent with the EVO 3-60, 970 in 100 x 100cm with two EVO 3-100s, 880 in 120 x 120cm with two EVO 4-120s and 680 in 150 x 150cm with two EVO 5-150s – the last set is SANlight's replacement for a 1000W HPS lamp.
How to Use
- Hang centrally above the canopy, adjusting height as the crop grows – this is the set-up for the single-fixture 60 x 60cm set, which SANlight hang about 40cm above the plants
- Two-fixture sets hang either side of centre at an 11° tilt using the Easy-Tilting eyelets: 100 set at 30cm high, 60cm apart; 120 set at 30cm, 70cm apart; 150 set at 50cm, 90cm apart (SANlight's figures, without CO₂)
- Start further from the canopy with young plants and lower gradually as they establish
- Add a Sanlight EVO dimmer for stepless control through veg and flower – every set already includes the magnetic M-Dimmer for each fixture, and the Bluetooth dimmer or a 0-10V controller can replace it
- Clean the optics with a dry, dust-free cloth only, with the power off
Technical Specifications
- Spectrum: broadband 400–780nm – blue 14%, green 37%, red 45%, far red 4%
- Beam: asymmetric secondary optics, 90°/112°
- Input: 100–240/277V AC, 50/60Hz, power factor above 0.95
- Protection: IP65
- Operating range: 5–35°C, up to 99% relative humidity
- Dimming: 0-10V interface; SANlight M-Dimmer included per fixture
- Hangers: SANlight hangers, 34kg load capacity each
- Lifetime and warranty: over 90,000 hours to 90% output; 3 years
- Build: aluminium heatsink, passive cooling, no fans
- Manufacture: Sanlight, Austria
| By size | 60 x 60cm – 1 x EVO 3-60 | 100 x 100cm – 2 x EVO 3-100 |
|---|---|---|
| Input power | 200W | 200W |
| PPF | 545 µmol/s | 545 µmol/s |
| Efficacy | 2.7 µmol/J | 2.7 µmol/J |
| Coverage | 0.6 x 0.6m | 1.0 x 1.0m |
| Dimensions | 46.8 x 29.1 x 11.6cm | 81.8 x 29.1 x 11.6cm |
| Weight per light | 3.5kg | 4.1kg |
| By size | 120 x 120cm – 2 x EVO 4-120 | 150 x 150cm – 2 x EVO 5-150 |
|---|---|---|
| Input power | 265W | 340W |
| PPF | 725 µmol/s | 915 µmol/s |
| Efficacy | 2.7 µmol/J | 2.7 µmol/J |
| Coverage | 1.2 x 1.2m | 1.5 x 1.5m |
| Dimensions | 101.8 x 29.1 x 11.6cm | 131.8 x 29.1 x 11.6cm |
| Weight per light | 5.1kg | 6.4kg |
Frequently Asked Questions
Which set do I need?
Match the set to your tent floor: the 60 set for 60 x 60cm, the 100 set for 100 x 100cm, the 120 set for 120 x 120cm and the 150 set for 150 x 150cm. Each follows SANlight's own recommendation for that footprint.
Is anything else needed to run it?
No. The fixtures, mains lead (a Y-cord on the two-fixture sets), hangers and an M-Dimmer for each fixture are all in the box. A timer for the light cycle is the only extra most growers add.
Can I control the sets from a grow controller?
Yes. Every EVO fixture has a 0-10V dimming input. The included M-Dimmer is magnetic and plugs into that port; for a TrolMaster system use the SANlight RJ12 adapter cable instead.
Do I need CO₂ with these sets?
No. SANlight set these recommendations at the limit of the light plants can use without added CO₂ – an average of roughly 900 µmol/m²/s – so they work in an ordinary ventilated tent.
