Description
Light-Proof Dark Room Grow Tents, from 60cm to 3m

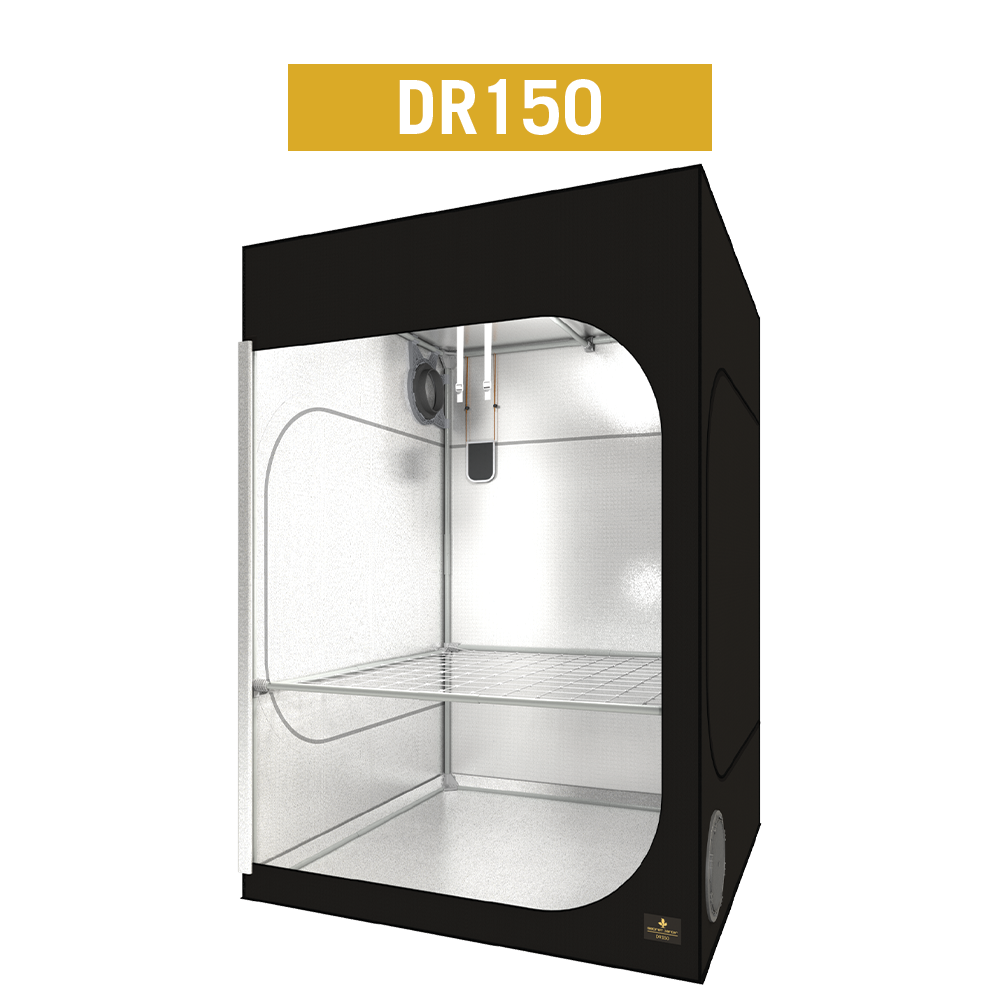

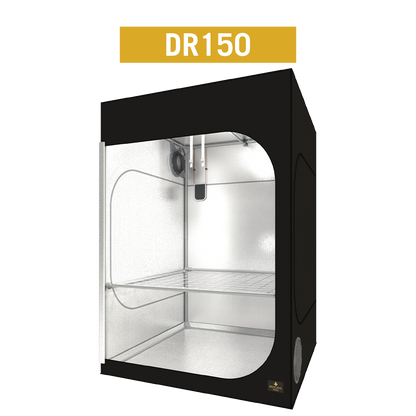

The Secret Jardin Dark Room is Secret Jardin's premium tent for medium and large growing spaces, built for plants from 50 to 150cm tall. The Secret Jardin Dark Room DR150 is a heavy-duty grow tent built around a steel pole frame and a reflective, light-proof canvas, giving a 150 x 150cm growing footprint with enough headroom for a full vegetative-to-flower cycle. Reflective interior lining keeps light on the canopy rather than lost to dark corners, and the light-proof exterior stops any leakage disrupting a dark period. A tent that lets light escape or leaks it in during the dark hours disrupts flowering, so a properly light-sealed build matters as much as the frame underneath it. The current R4.00 generation – DR150, DR240 and DR300 here – adds Ø25mm stainless steel poles, M400D Mylar canvas with a double-flap zip, 360° access and a full kit of fitted accessories; the earlier R3 sizes cover a 60cm cabinet-style tent, a narrow 150 x 90cm tent, a taller 235cm DR150, a 240cm-square DR240 and a 300 x 150cm DR300W.
Key Benefits
- Sturdy steel pole frame - holds lights, fans and filters; on R4 tents each handling bar is rated to 25kg, up to 75kg (DR150), 225kg (DR240) or 250kg (DR300) per tent
- Reflective interior lining - keeps light on the canopy instead of the corners
- Light-proof black canvas - protects the dark period from light leaks; R4 tents close with a double-flap zip
- 150 x 150cm footprint - a mid-size growing area with good headroom, on the DR150 R3 and R4
- Multiple duct ports and cable sleeves - clean routing for extraction and cabling
- Fully pre-equipped (R4) – web plant support, removable water tray, DF25 ducting flanges, cable flanges, filter straps, light hooks, cable clips, a tool pouch, space boosters and a repair patch are all in the bag
- Easy to clean (R4) – the 380g/m² fibred water-tray liner lifts out for washing
Which Dark Room Size?

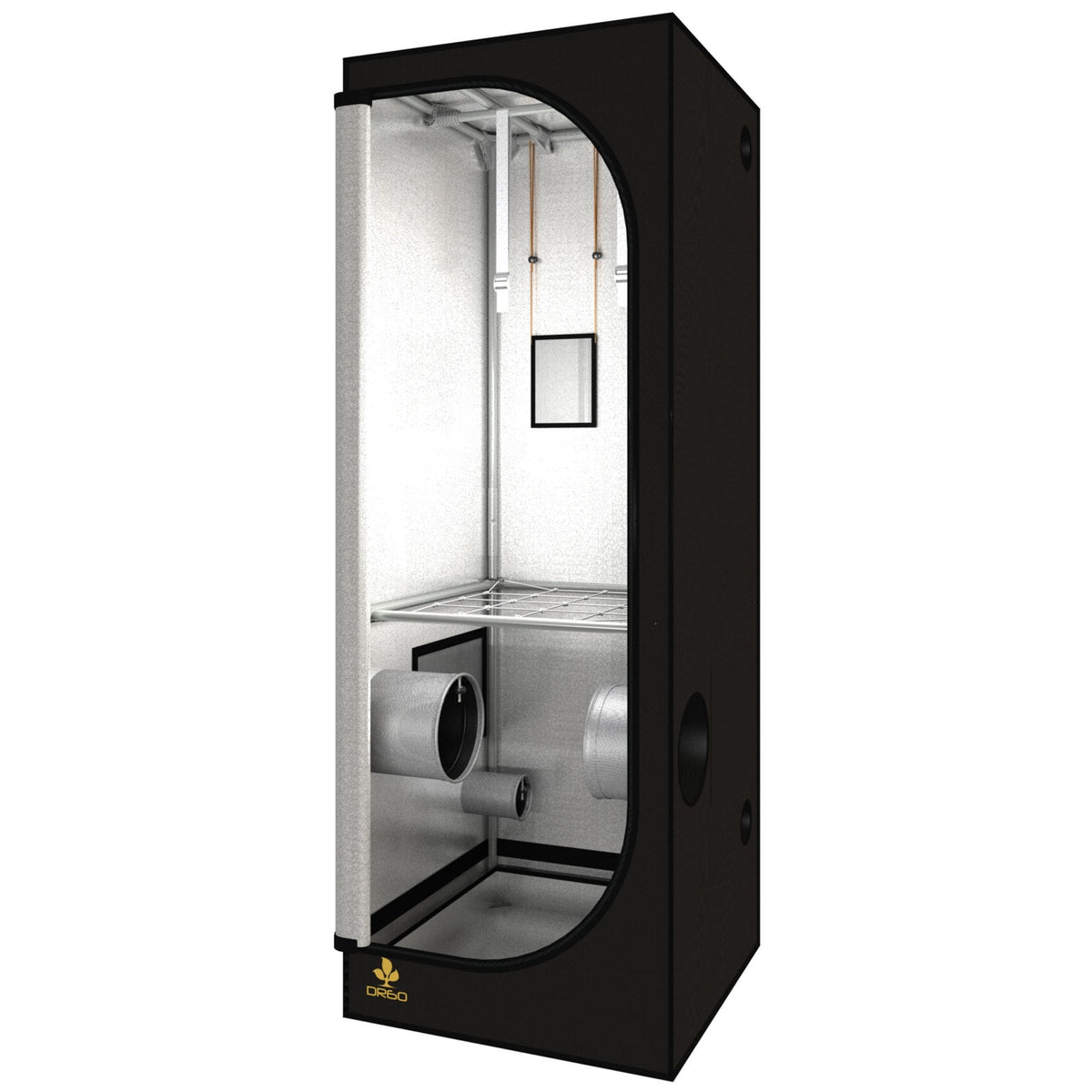

- DR60 R3 (60 x 60 x 170cm) – a compact cabinet-sized tent for a single plant, mother plant or a small light

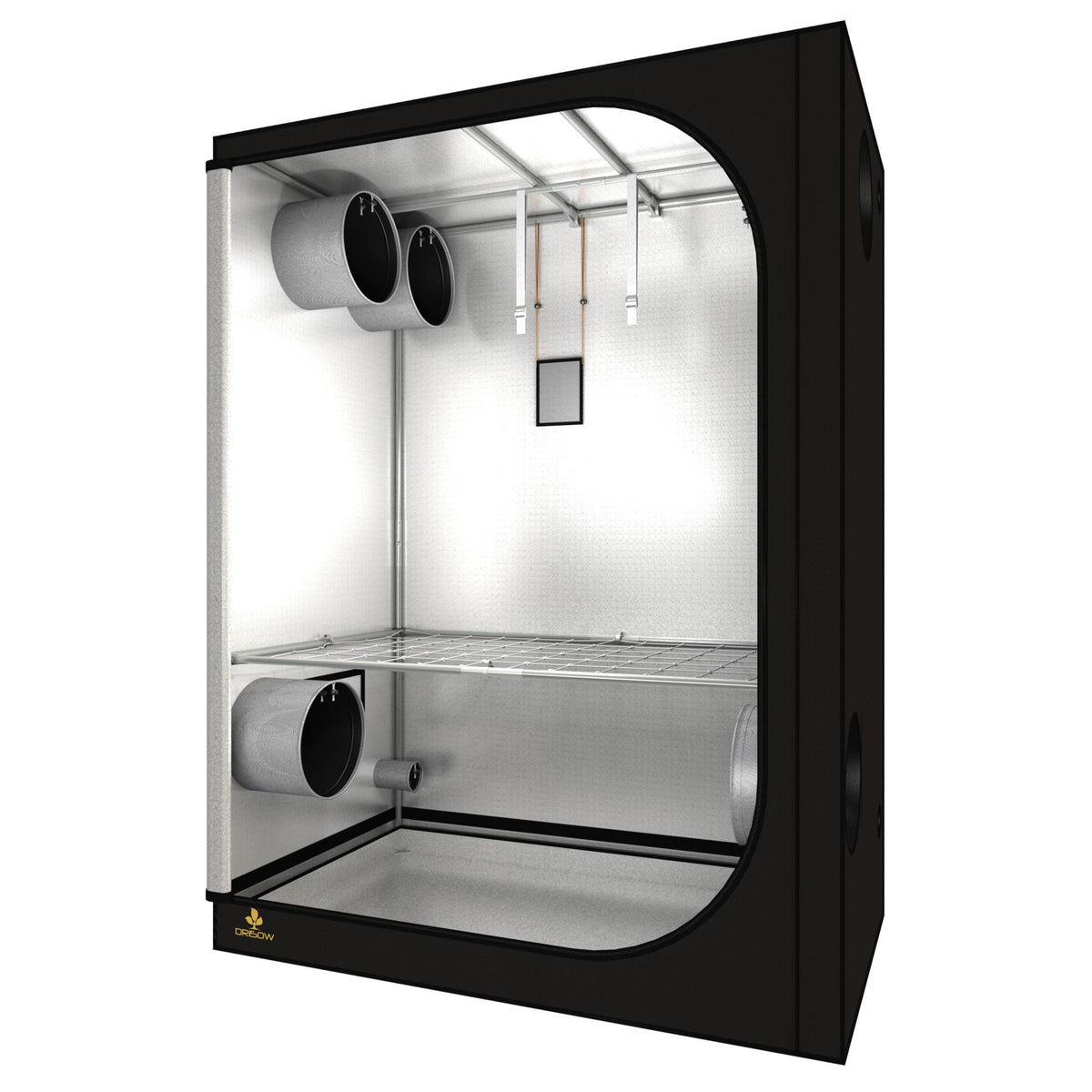

- DR150W R3 (150 x 90 x 200cm) – a long, narrow footprint for a box-room wall or a row of pots

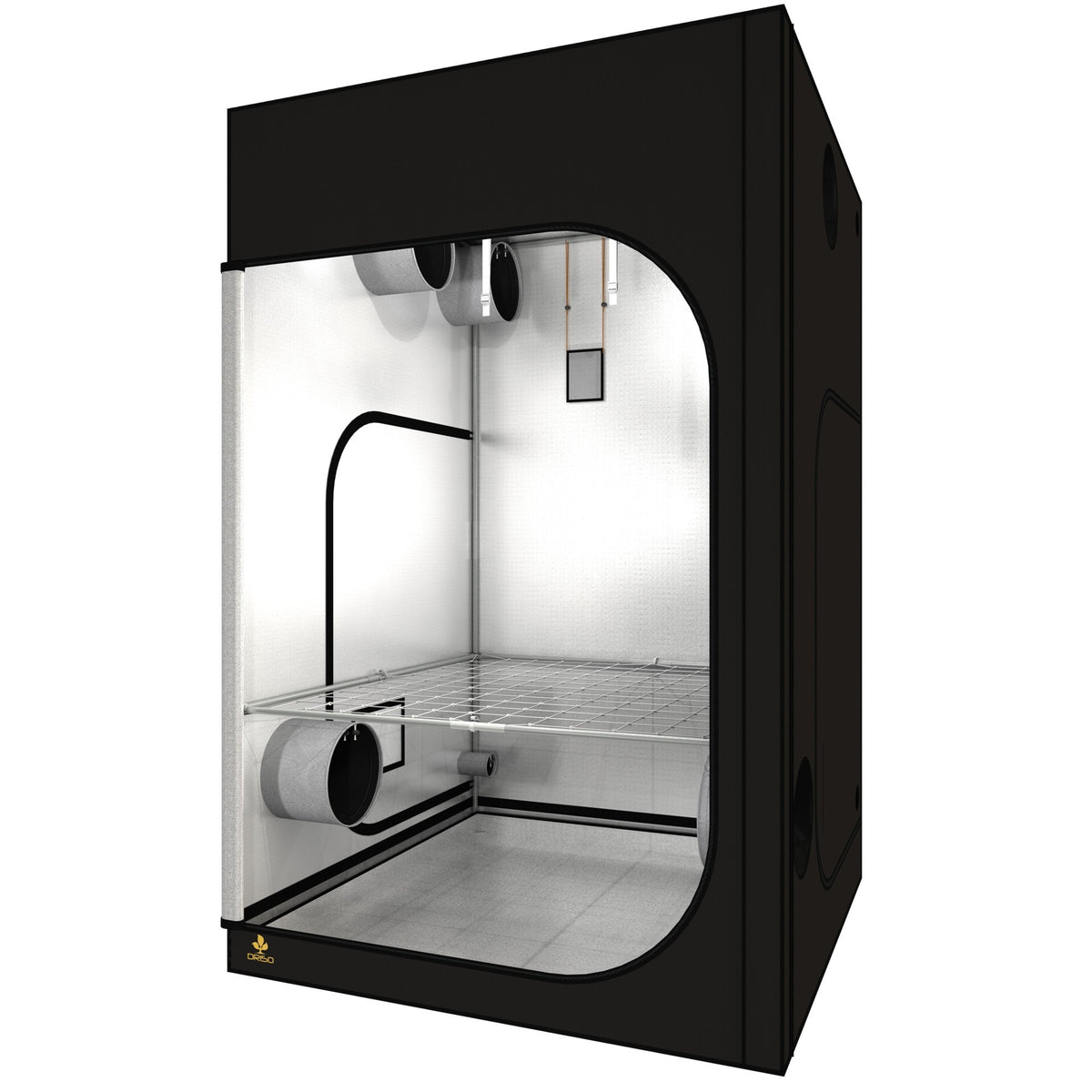

- DR150 R3 (150 x 150 x 235cm) – the 150cm-square tent with extra height for tall plants and hanging kit

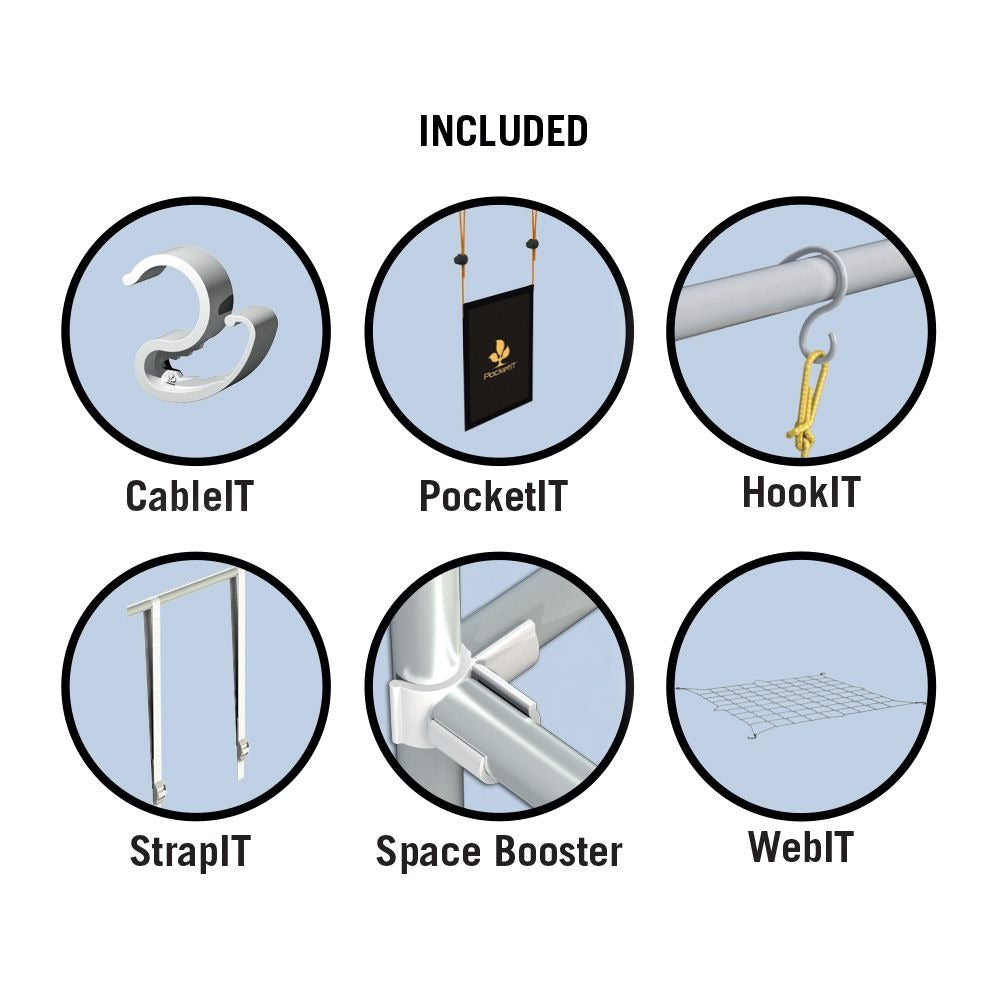

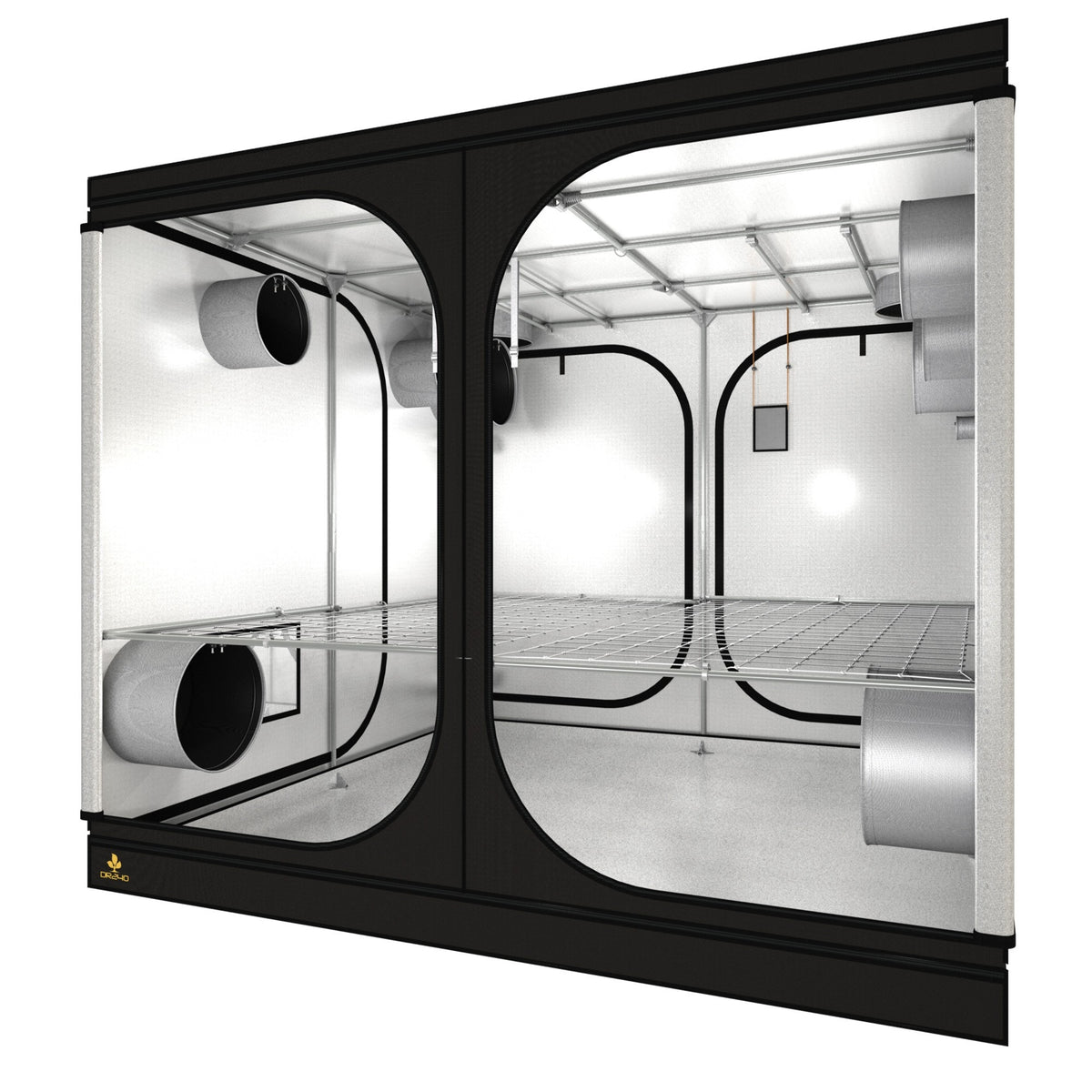

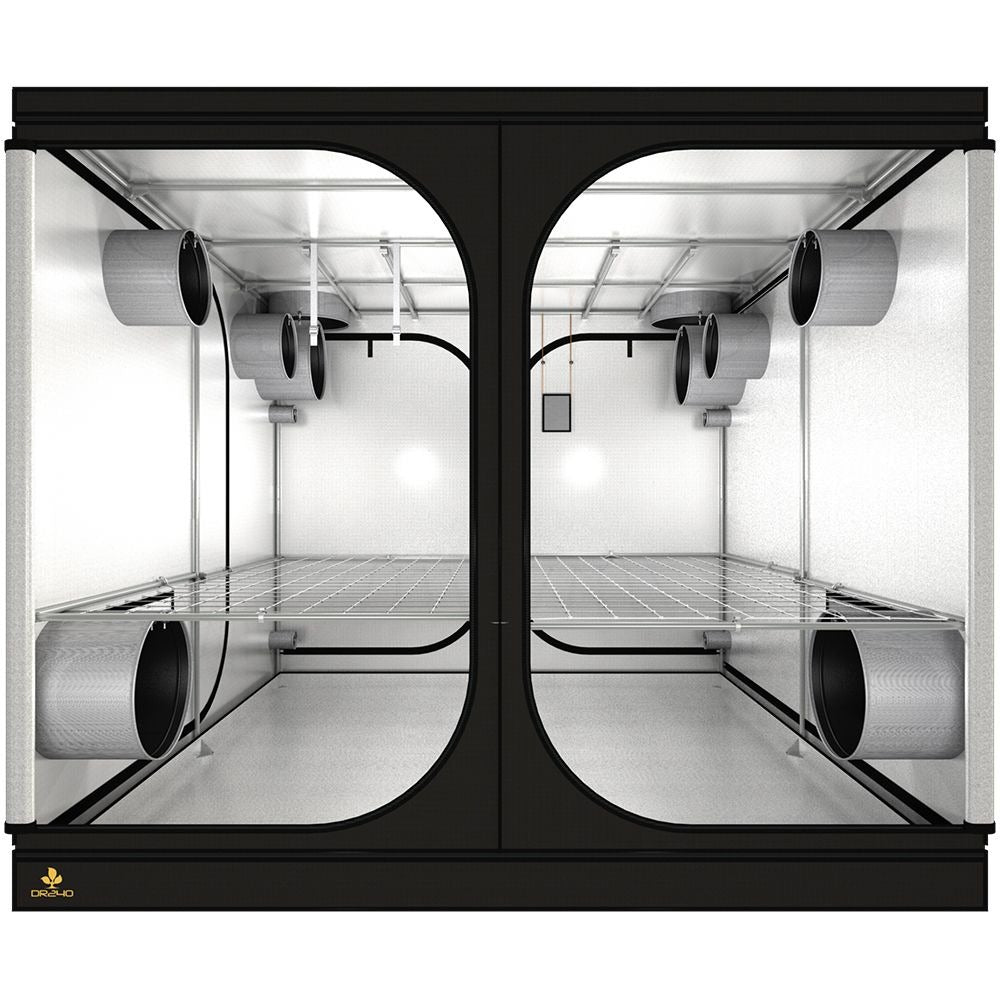

- DR240 R3 (240 x 240 x 200cm) – a square 2.4m room with two doors, supplied with two WebIT 240W plant-support nets, Space Booster corners and hanging, strapping and cable accessories

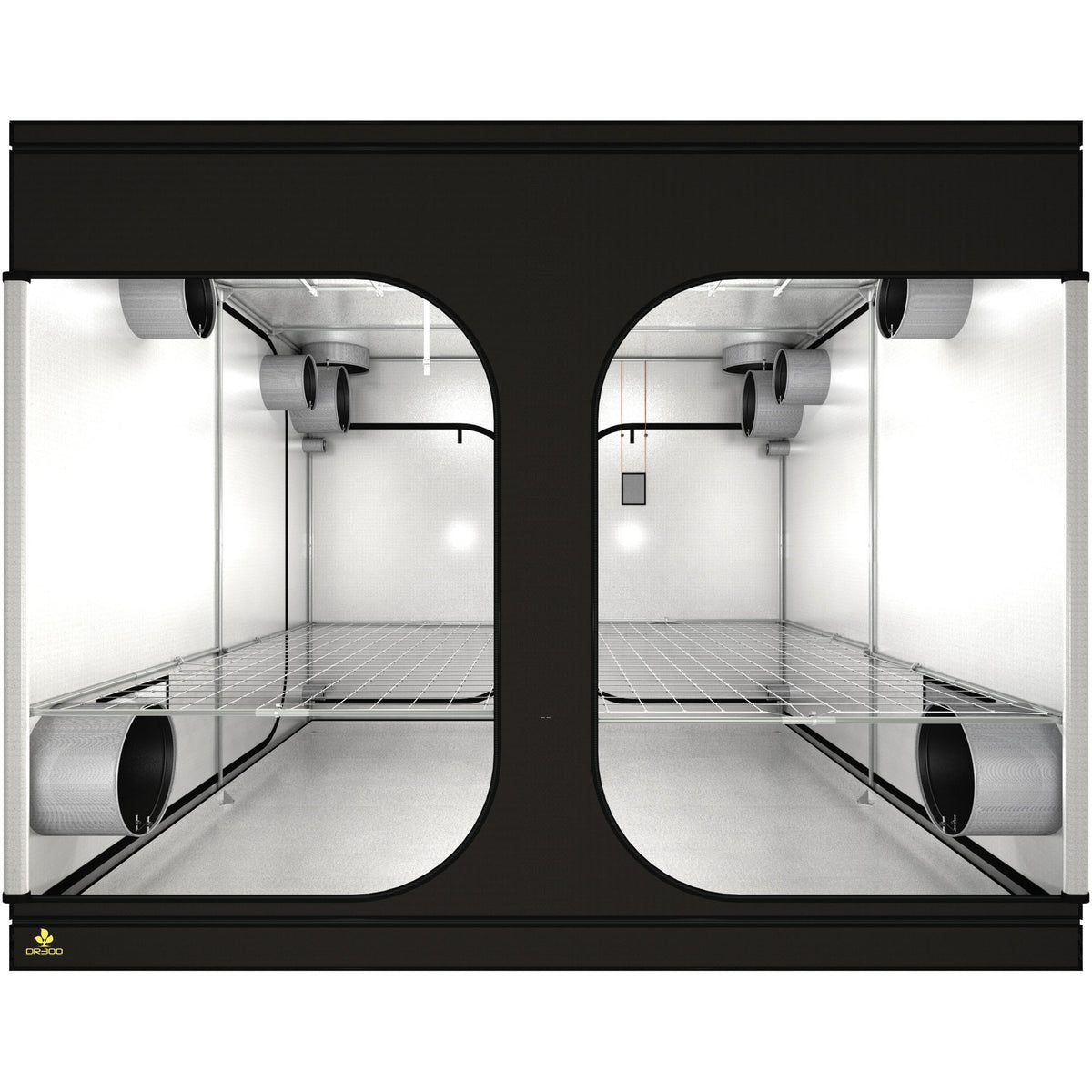

- DR300W R3 (300 x 150 x 235cm) – a long 3m x 1.5m room, 235cm tall, with two doors, two WebIT 150 nets and the same R3 accessories

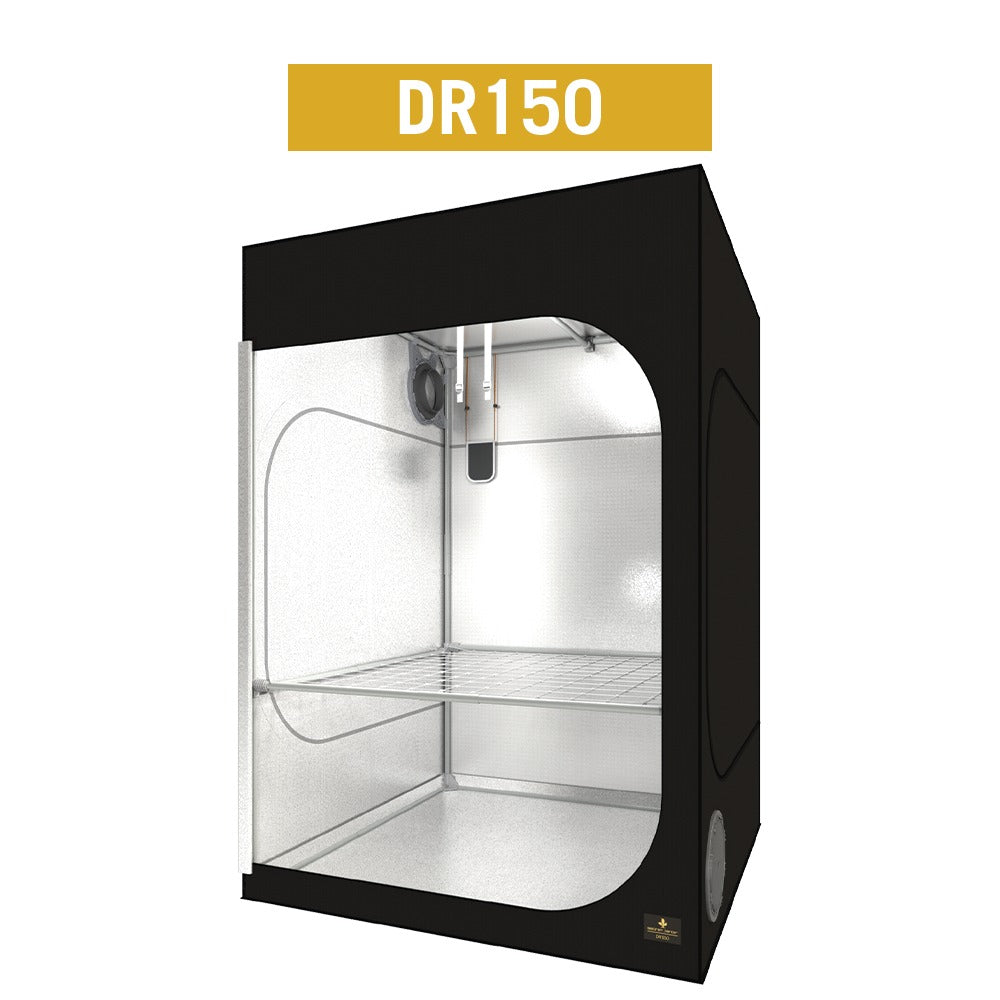

- DR150 R4 (150 x 150 x 217cm) – 4.9m³; Secret Jardin advise up to 600W of LED, one MFO20 Monkey fan and about 650m³/h of filtered extraction

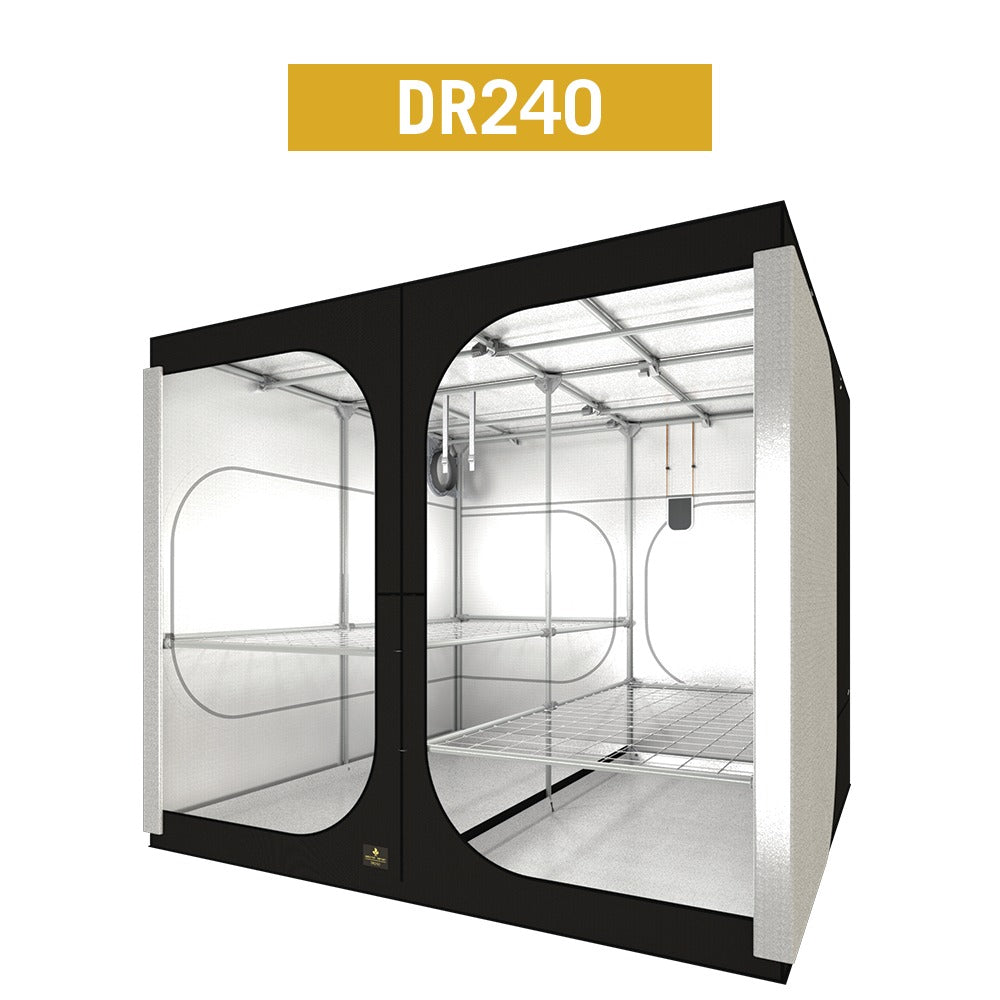

- DR240 R4 (237 x 237 x 200cm) – two doors, 11.2m³; up to 1600W of LED, two MF30 Monkey fans, about 900m³/h extraction

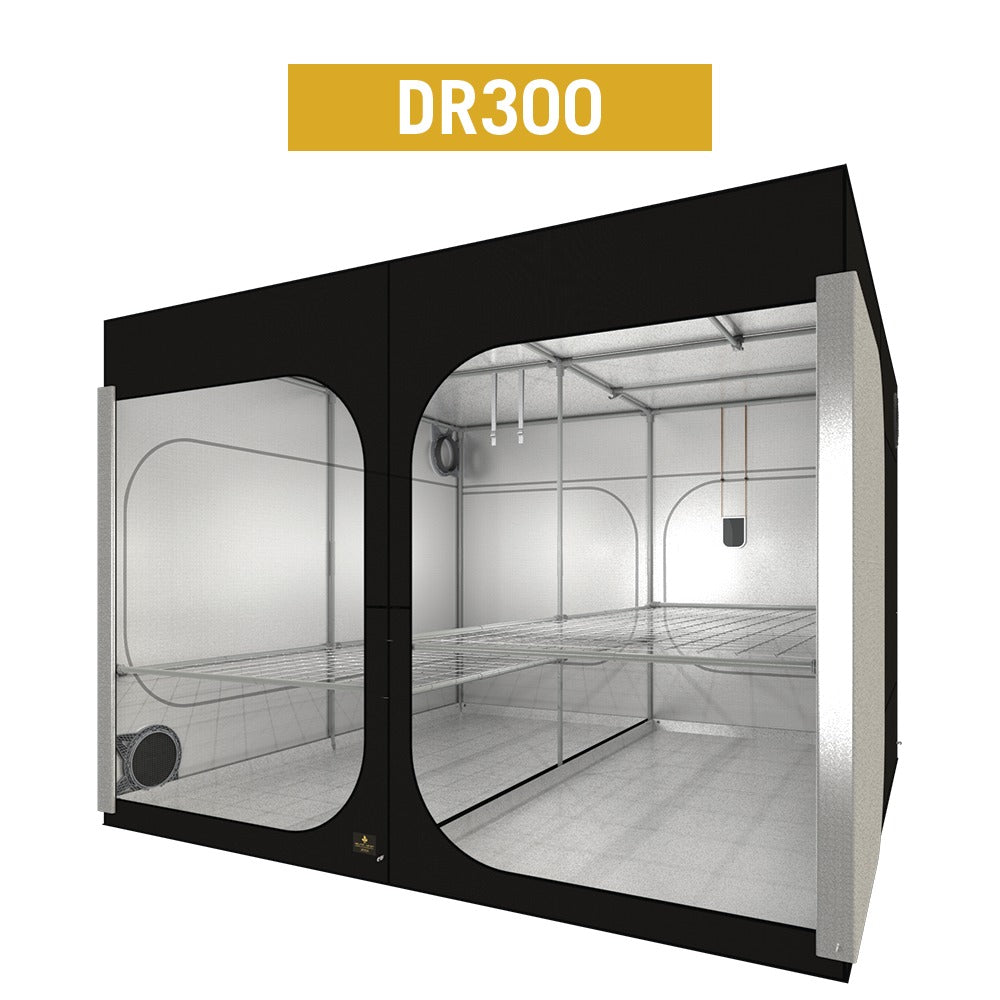

- DR300 R4 (297 x 297 x 217cm) – the largest, 19.1m³; up to 2400W of LED, two MF30 fans, about 1200m³/h extraction
How to Use
- Assemble the pole frame and fit the canvas following the included instructions
- Route ducting and cabling through the tent's port sleeves to keep the interior tidy
- Check the zips and light seals regularly to protect the dark period
- Size the extraction to the tent: the figures above assume a carbon filter and a one-minute air change; without a filter, Secret Jardin advise about 40% less
- Spread the load – hang lights and filters across the handling bars rather than from one point
Technical Specifications
- Range: Secret Jardin Dark Room
- Lining: reflective Mylar
- Exterior: light-proof black canvas
- Included: WebIT plant net, Space Booster corners
- Plant height: up to 150 cm
| By size | DR150 R3 150 x 150 x 235cm | DR60 R3 60 x 60 x 170cm | DR150W R3 150 x 90 x 200cm |
|---|---|---|---|
| Footprint | 150 x 150 cm | 60 x 60 cm | 150 x 90 cm |
| Height | 235 cm | 170 cm | 200 cm |
| Poles | Ø19 mm steel | ||
| Canvas | Mylar 210D | ||
| Duct ports | 2 out + 2 in, Ø280 mm | 1 out + 2 in, Ø180 mm | 2 out + 2 in, Ø280 mm |
| Cool-tube socks | 2 x Ø280 mm | – | 2 x Ø280 mm |
| Cable ports | 3 x Ø75 mm socks | ||
| Hanging load | 3 poles x 15 kg | ||
| Water tray | Mylar 210D | ||
| Dimensions | 150 x 150 x 235cm | 60 x 60 x 170cm | 150 x 90 x 200cm |
| Weight | 18.2kg | 7.3kg | 12.9kg |
| By size | DR150 R4 150 x 150 x 217cm | DR240 R3 240 x 240 x 200cm | DR240 R4 237 x 237 x 200cm |
|---|---|---|---|
| Footprint | 150 x 150 cm | 240 x 240 cm | 237 x 237 cm |
| Height | 217 cm | 200 cm | 200 cm |
| Poles | Ø25 mm stainless | Ø19 mm steel | Ø25 mm stainless |
| Canvas | Mylar M400D | Mylar 210D | Mylar M400D |
| Duct ports | 2 x DF25 flange, Ø200 mm | 4 out + 2 in, Ø380 mm | 2 x DF25 flange, Ø250 mm |
| Cool-tube socks | – | 4 x Ø280 mm | – |
| Cable ports | 2 x Ø70 mm flanges | 4 x Ø75 mm socks | 4 x Ø70 mm flanges |
| Hanging load | 3 poles x 25 kg, 75 kg | 8 poles x 15 kg | 9 poles x 25 kg, 225 kg |
| Water tray | fibred liner, 380 g/m² | Mylar 210D | 2 fibred liners, 380 g/m² |
| Dimensions | 150 x 150 x 217cm | 240 x 240 x 200cm | 237 x 237 x 200cm |
| Weight | 26.8kg | 32.8kg | 46.2kg |
| By size | DR300W R3 300 x 150 x 235cm | DR300 R4 297 x 297 x 217cm |
|---|---|---|
| Footprint | 300 x 150 cm | 297 x 297 cm |
| Height | 235 cm | 217 cm |
| Poles | Ø19 mm steel | Ø25 mm stainless |
| Canvas | Mylar 210D | Mylar M400D |
| Duct ports | 4 out + 2 in, Ø280 mm | 4 x DF25 flange, Ø250 mm |
| Cool-tube socks | 2 x Ø280 mm | – |
| Cable ports | 4 x Ø75 mm socks | 4 x Ø70 mm flanges |
| Hanging load | 4 poles x 15 kg | 10 poles x 25 kg, 250 kg |
| Water tray | Mylar 210D | 2 fibred liners, 380 g/m² |
| Dimensions | 300 x 150 x 235cm | 297 x 297 x 217cm |
| Weight | 27.5kg | 66.6kg |
Frequently Asked Questions
What is the difference between R3 and R4?
R4.00 is Secret Jardin's current Dark Room: Ø25mm stainless steel poles, M400D Mylar canvas, a double-flap light-proof zip, 360° access and a full set of fitted accessories (web support, water tray, DF25 flanges, straps, hooks and clips). The R3 tents are the earlier generation, still available in a few sizes and shapes; the DR240 R3 and DR300W R3 come with WebIT nets, Space Boosters and hanging, strapping and cable accessories.
Which extractor fan do I need?
Secret Jardin's advice, with a carbon filter and one air change a minute: about 650m³/h for the DR150, 900m³/h for the DR240 and 1200m³/h for the DR300. The DR150 R4 takes 200mm ducting; the DR240 and DR300 take 250mm.
How much weight can the frame hold?
On R4 tents each handling bar carries up to 25kg, with a total of 75kg on the DR150, 225kg on the DR240 and 250kg on the DR300 – enough for LED fixtures, a carbon filter and ducting.
How much light does each size need?
For intensive growing of sun-loving plants Secret Jardin advise about 600W of efficient LED in the DR150, 1600W in the DR240 and 2400W in the DR300; for moderate growing their figures drop to 400W, 800W and 1600W.
Works Well With
Fan and filter in 8 and 10 inch to fit the ports
