Description
Compact odour control for the DF16 tent range
The Secret Jardin DF16 carbon filter scrubs odour-laden air before it leaves the tent, built to pair with Secret Jardin's DF16 extraction fans and ducting flanges for a matched, compact setup rather than an oversized filter bolted onto a small tent.
Key Benefits
- Activated carbon bed - captures odour compounds before extracted air leaves the tent
- DF16 system match - sized to pair with Secret Jardin's DF16 extraction fans and flanges
- Compact body - suits smaller tents where a full-size filter is impractical
- Four airflow ratings - 100, 150, 250 and 350m³/h, matched to different fan sizes and tent volumes
- Tool-free fitting - clips straight onto the DF16 extractor or ducting flange in seconds
An oversized carbon filter on a small extraction fan starves airflow and shortens the fan's life, while an undersized one lets odour through before the carbon can act on it. Matching filter and fan within the DF16 range keeps extraction efficient in a compact tent.
How to Use

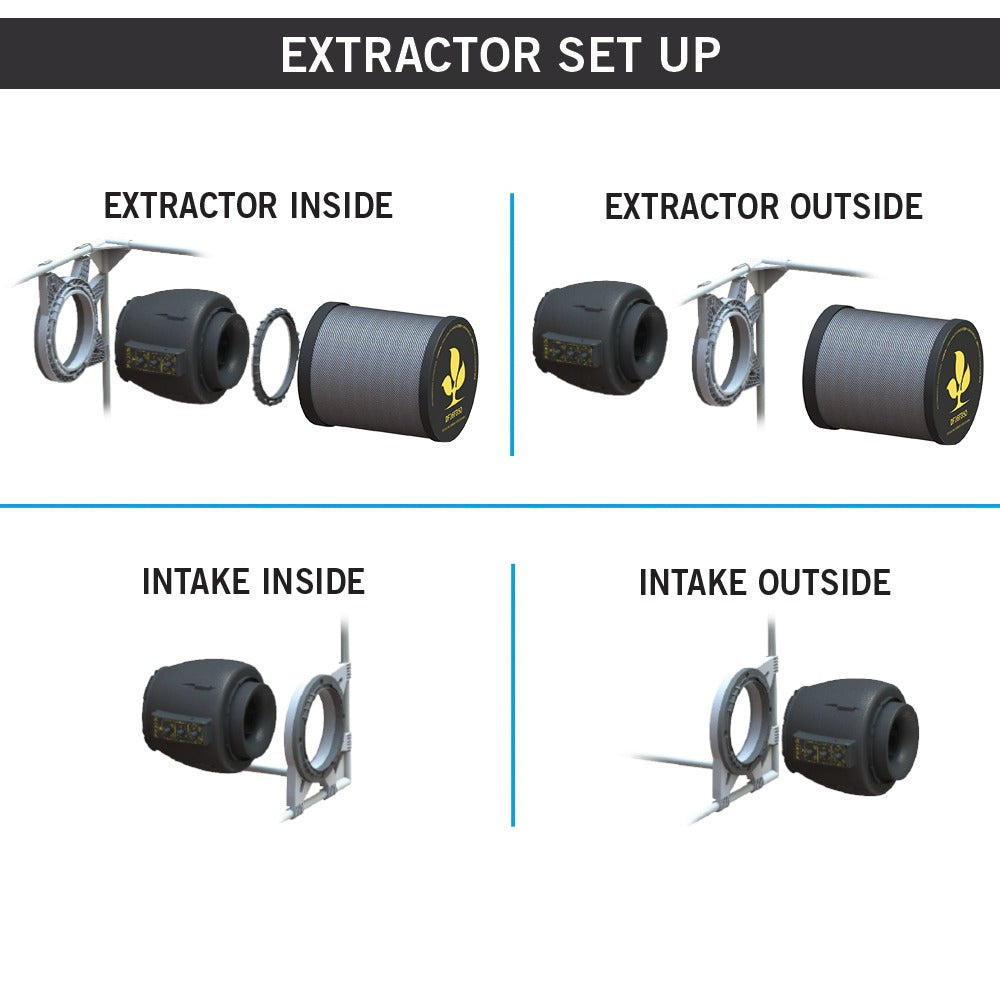

- Fit inline with a matched DF16 extraction fan, before the air exits the tent
- Match filter and fan airflow - an unmatched pair reduces both odour control and fan lifespan
- Support the filter's weight from the tent frame rather than the ducting
Technical Specifications
- Type: activated carbon filter for the Secret Jardin DF16 system
- Fits: Secret Jardin DF16 extractor fans and the DF16 Ducting Flange

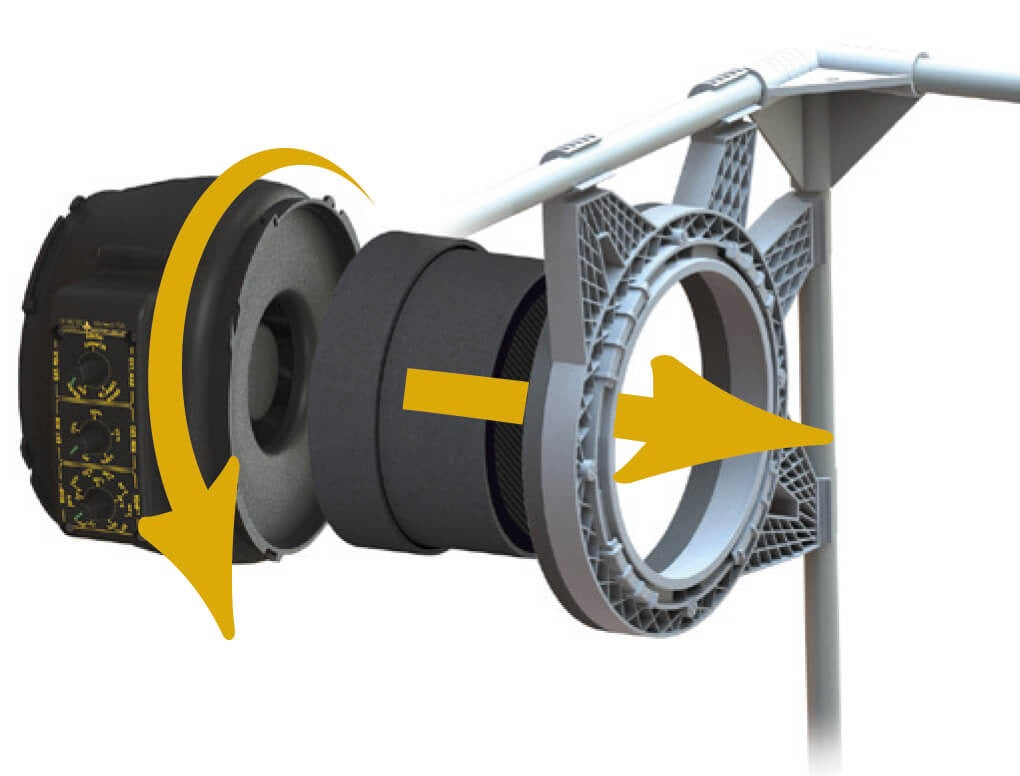

- Fitting: tool-free DF16 male clip collar; joins via a female DF16 Ring (two come with each DF16 extractor) or a DF16 Ducting Flange
- Duct connection: DF16 clip collar, not a standard duct spigot; no mm size published
- Standard ducting: DF16 connectors (100, 125 or 150 mm, sold separately) adapt the DF16 extractor to regular ducting
- DF16 system: Ducting Flange kit for 16-19 mm tent poles
- Airflow loss: about 30% with a new filter, up to 50% as it ages
| By size | 100 m3/h | 150 m3/h |
|---|---|---|
| Max airflow | 100 m³/h | 150 m³/h |
| Carbon bed | – | 30mm |
| Carbon | CTC80, 3 mm | |
| Weight | – | 1.5kg |
| Dimensions | Ø15 x 8.5cm | Ø22.5 x 13cm |

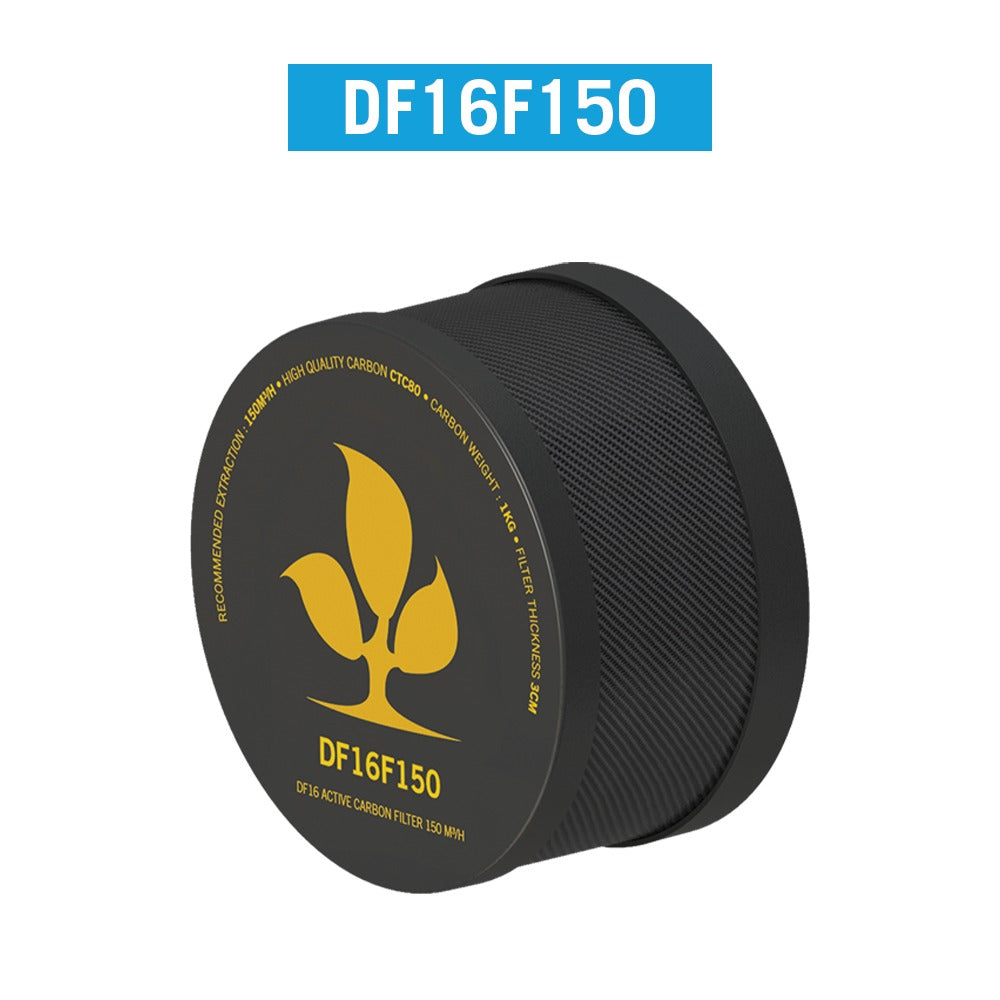

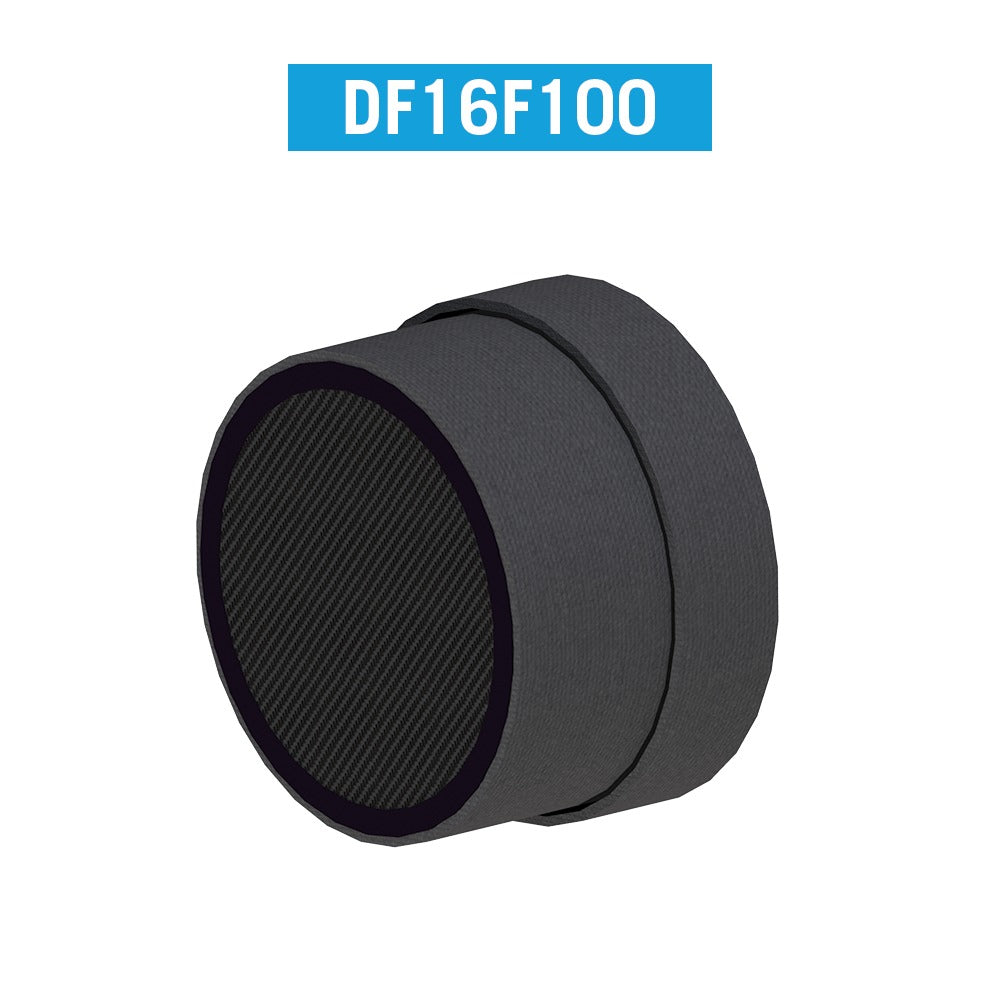

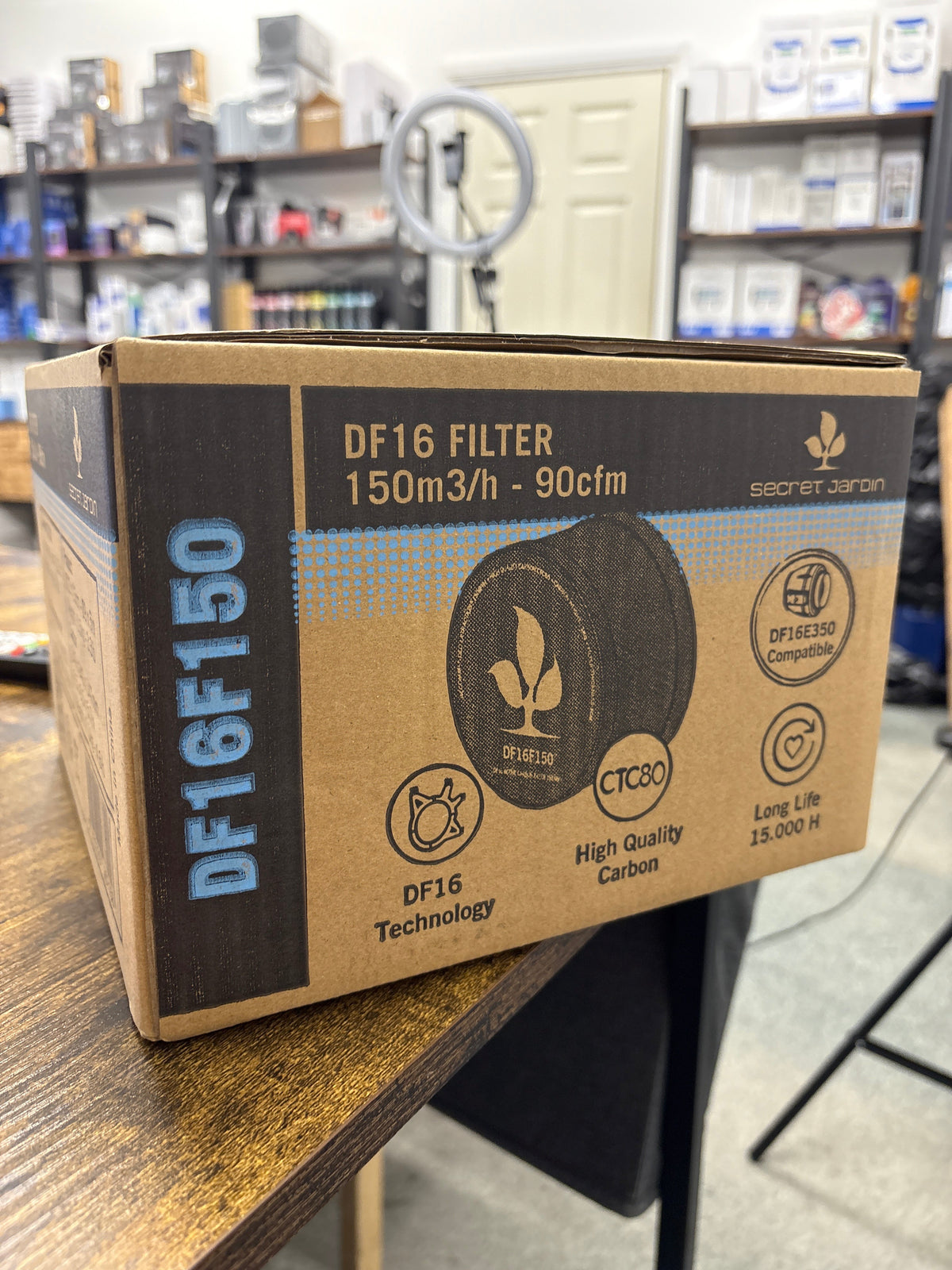

| Model | DF16F100 | DF16F150 |
| Carbon weight | 0.4 kg | 1.0 kg |
| Matched extractor | DF16E150, outside tent only | DF16E150 |
| Maker's tent | Dark Propagator DP90 | Dark Street DS60 |
| Pre-filter | Included | |
| By size | 250 m3/h | 350 m3/h |
|---|---|---|
| Max airflow | 250 m³/h | 350 m³/h |
| Carbon bed | 30mm | 30mm |
| Carbon | CTC80, 3 mm | |
| Weight | 2.1kg | 2.7kg |
| Dimensions | Ø22.5 x 19cm | Ø22.5 x 24cm |

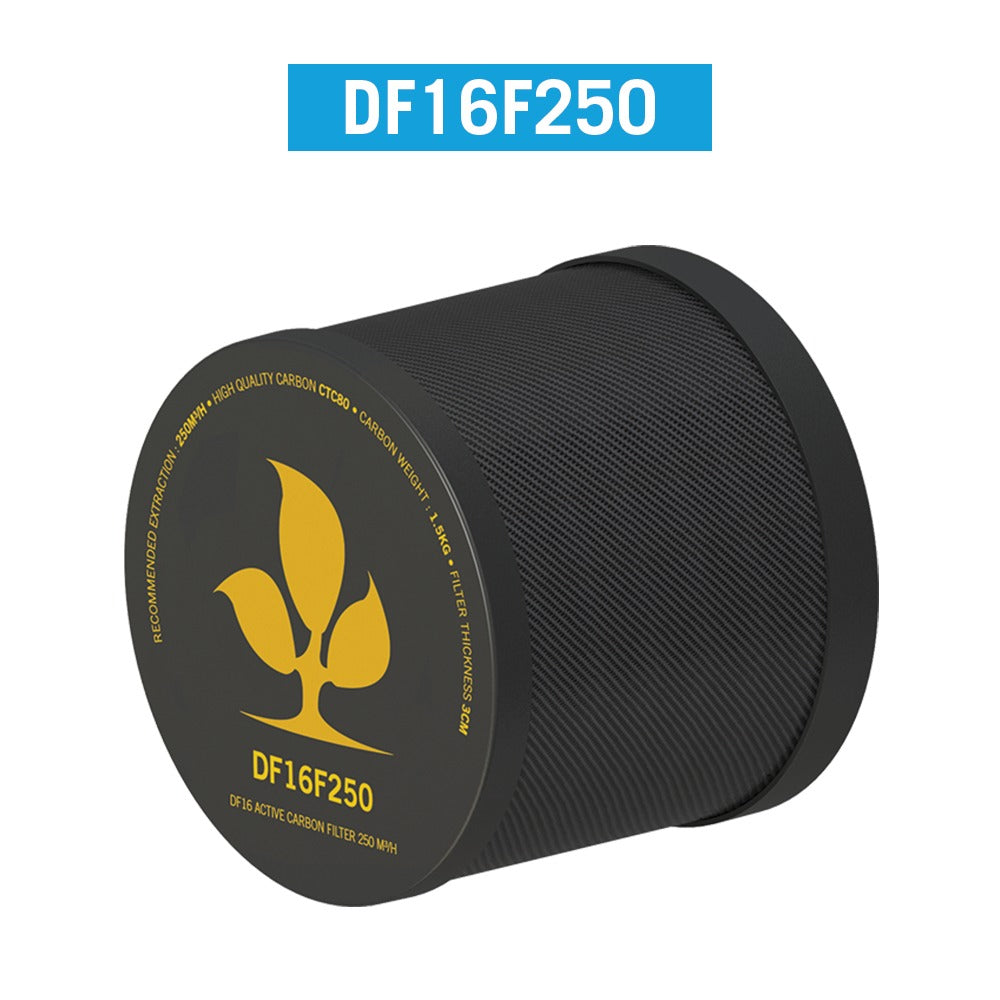

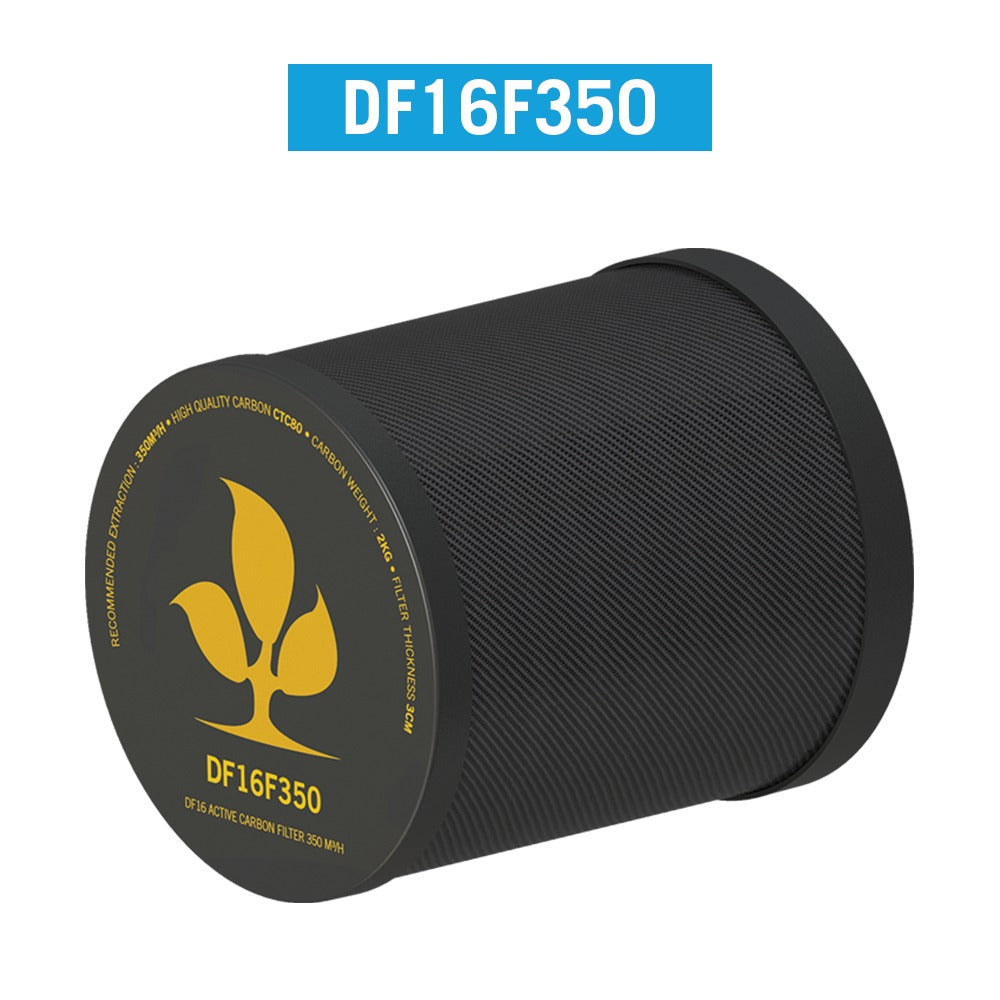

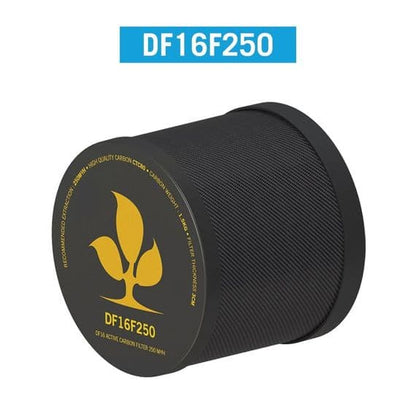

| Model | DF16F250 | DF16F350 |
| Carbon weight | 1.5 kg | 2.0 kg |
| Matched extractor | DF16E350 | |
| Maker's tent | Dark Street DS90 | Dark Street DS120 |
| Pre-filter | Included | |
Frequently Asked Questions
Which size do I need?

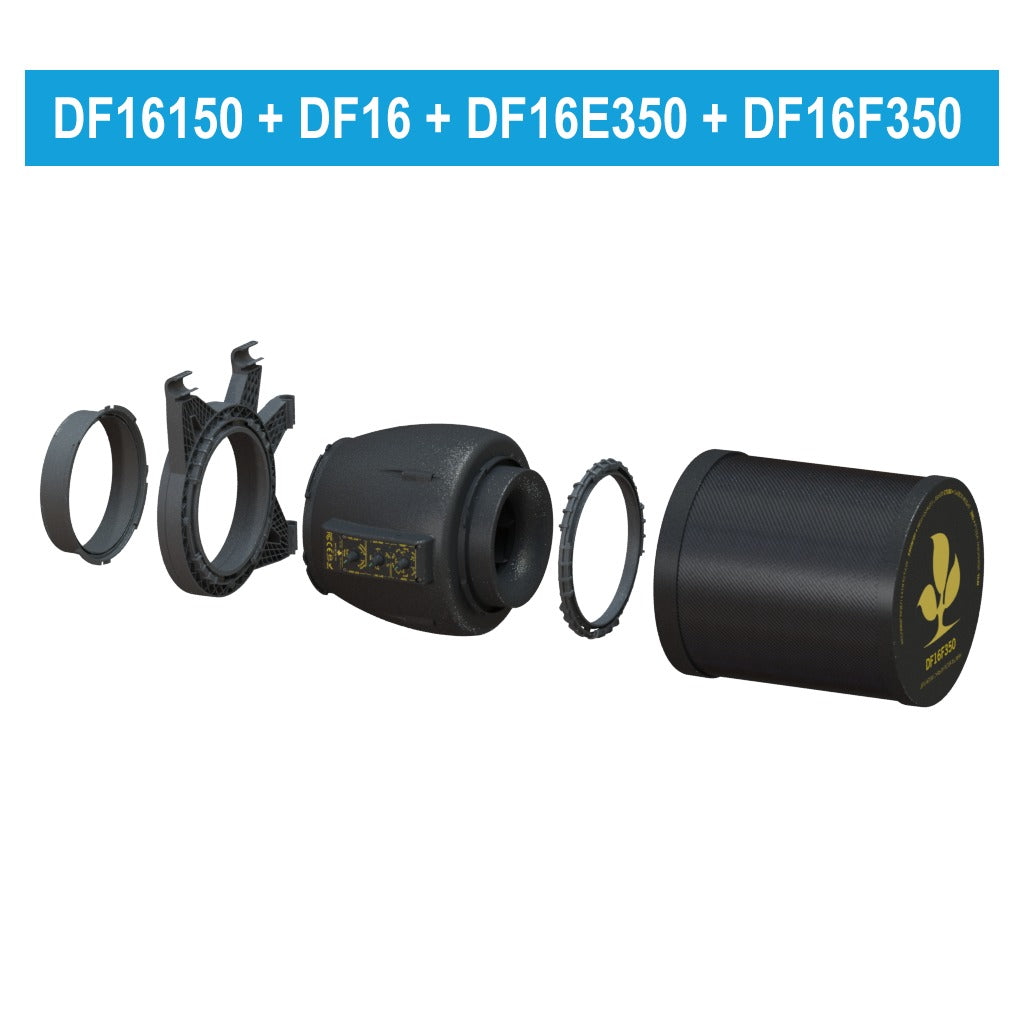

Match the filter to the extractor and the tent. Secret Jardin pair the 100 and 150m³/h filters with the DF16E150 extractor and the 250 and 350m³/h filters with the DF16E350; the 100m³/h suits a Dark Propagator DP90 or a Grow Station, and the 350m³/h a tent around 120 x 120cm.
Will it fit an ordinary inline fan?
The DF16 filters are designed to clip onto Secret Jardin's DF16 extractor or ducting flange rather than a standard spigot fan. DF16 connectors in 100, 125 and 150mm let the DF16 extractor and filter run on regular ducting.
Why does the filter size matter?
A filter too small for the fan lets odour through before the carbon can catch it; one too large for the fan restricts airflow. Keeping filter and extractor within the same DF16 pairing keeps both working as designed.
