Description
High-Output LED With a Spectrum You Can Change

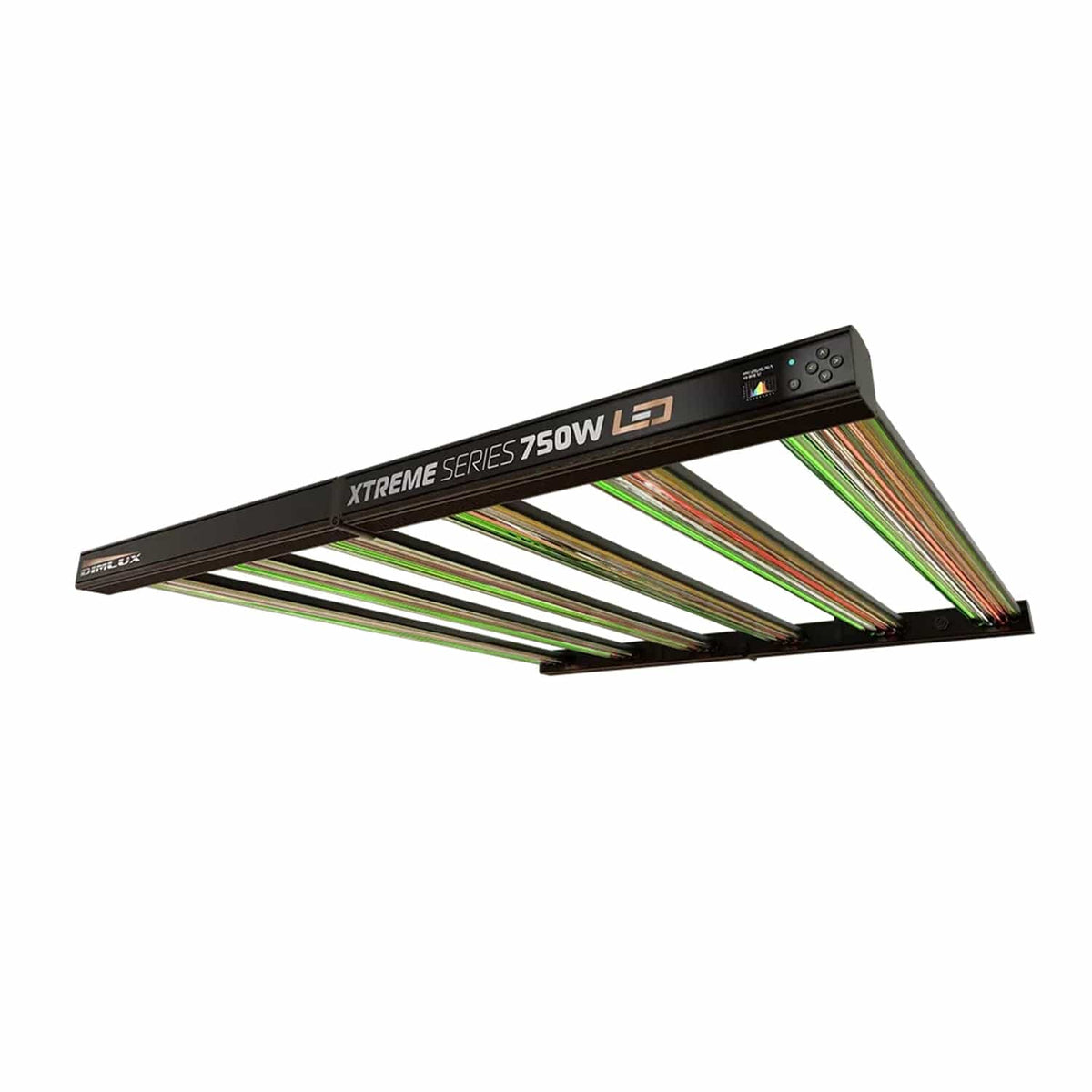

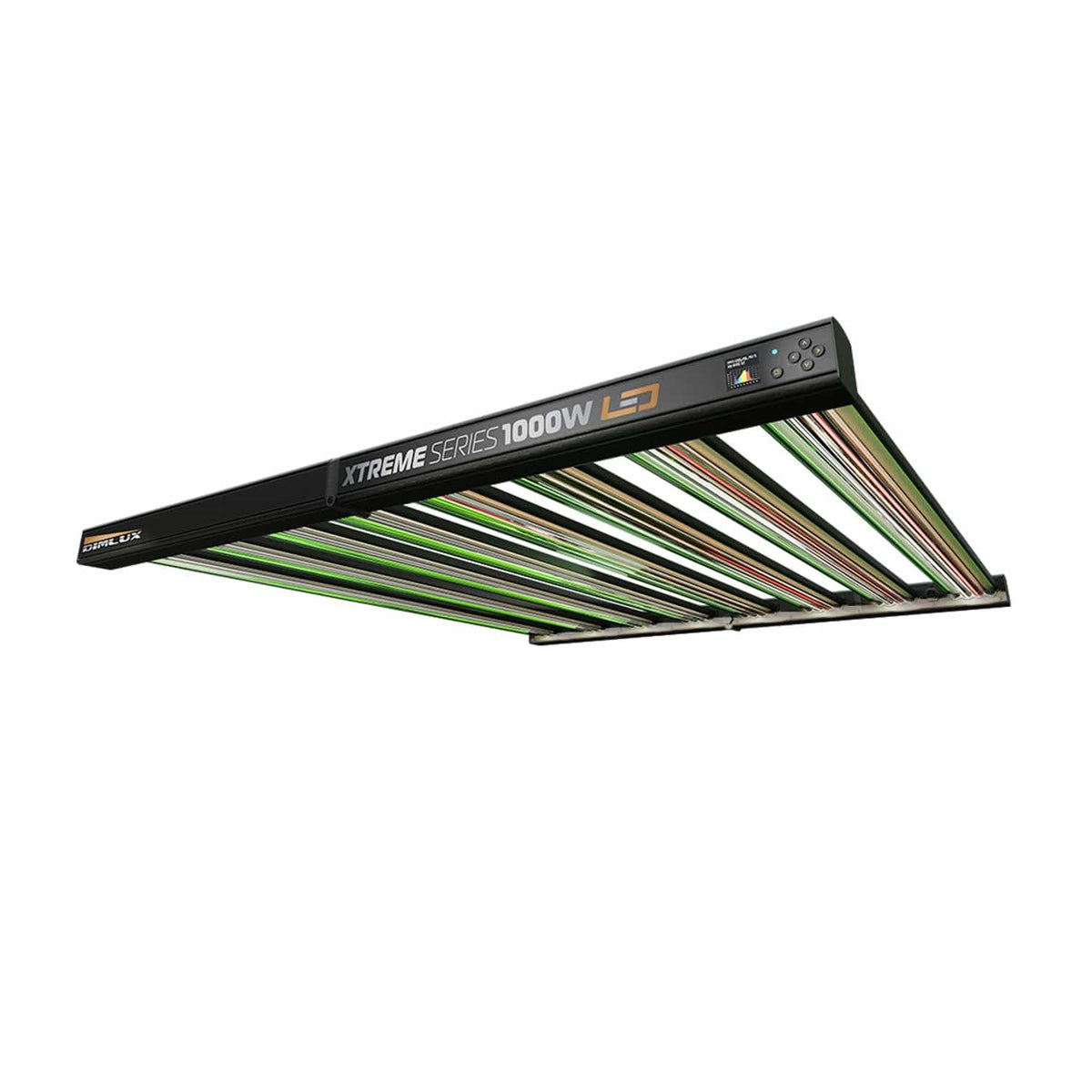

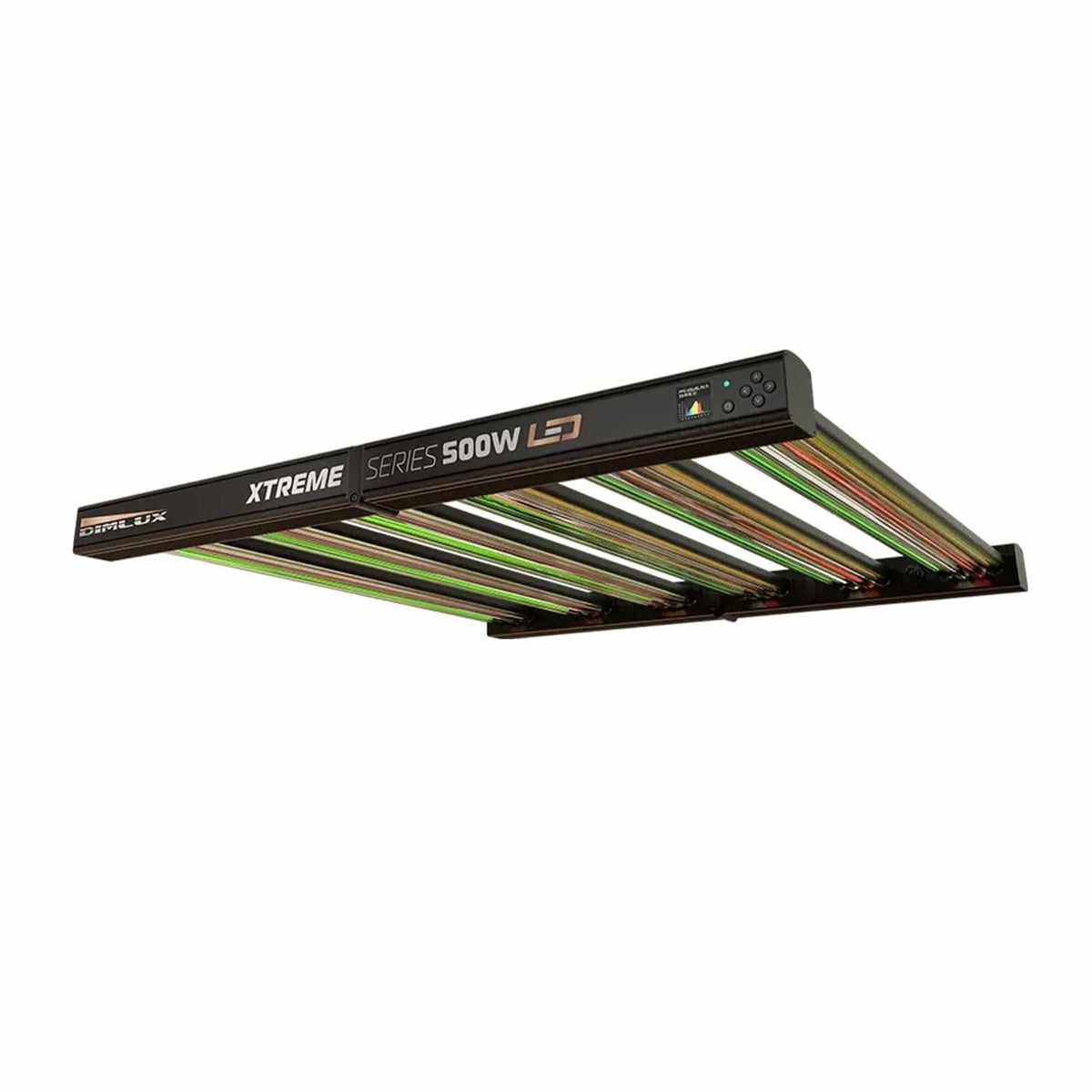

The Dimlux Xtreme Series LED comes in three outputs - 500W, 750W and 1000W - and each is made as a standard model or a + NIR model with added near-infrared diodes. The Dimlux Xtreme Series 750W LED is a commercial-grade full spectrum LED grow light that produces 2,276 µmol/s at 2.85 µmol/J, spread evenly over a 1.5 x 1.5m growing area. The 1000W raises that to 3,035 µmol/s over the same 1.5 x 1.5m for higher intensity, and the 500W produces 1,500 µmol/s at 2.81 µmol/J over 1.2 x 1.2m. Its PhytoVegSpec spectrum is adjustable, so both light quality and intensity can be programmed by time of day and by stage of growth, and it dims without losing efficiency – run it from its own built-in controls or from a Dimlux Maxi Controller.
Key Benefits
- 2,276 µmol/s at 2.85 µmol/J – high PPFD across a 1.5m square canopy from 799W at the wall, on the 750W; the 1000W gives 3,035 µmol/s from 1,065W and the 500W 1,500 µmol/s from 540W
- Adjustable PhytoVegSpec spectrum – shift the red content for vegetative growth or flowering
- Standard or + NIR – the NIR models add near-infrared to the red, which works with it to drive photosynthesis, at the cost of a little more stretch
- Deep penetration lens – patented high-transmittance optics push light down into the canopy
- Green work light – auxiliary RGB light pipe can switch on automatically via a radar proximity sensor during the dark period
- Built to last – IP65, passive cooling, L90 over 50,000 hours, 5-year standard warranty
Even Light, Not Hot Spots

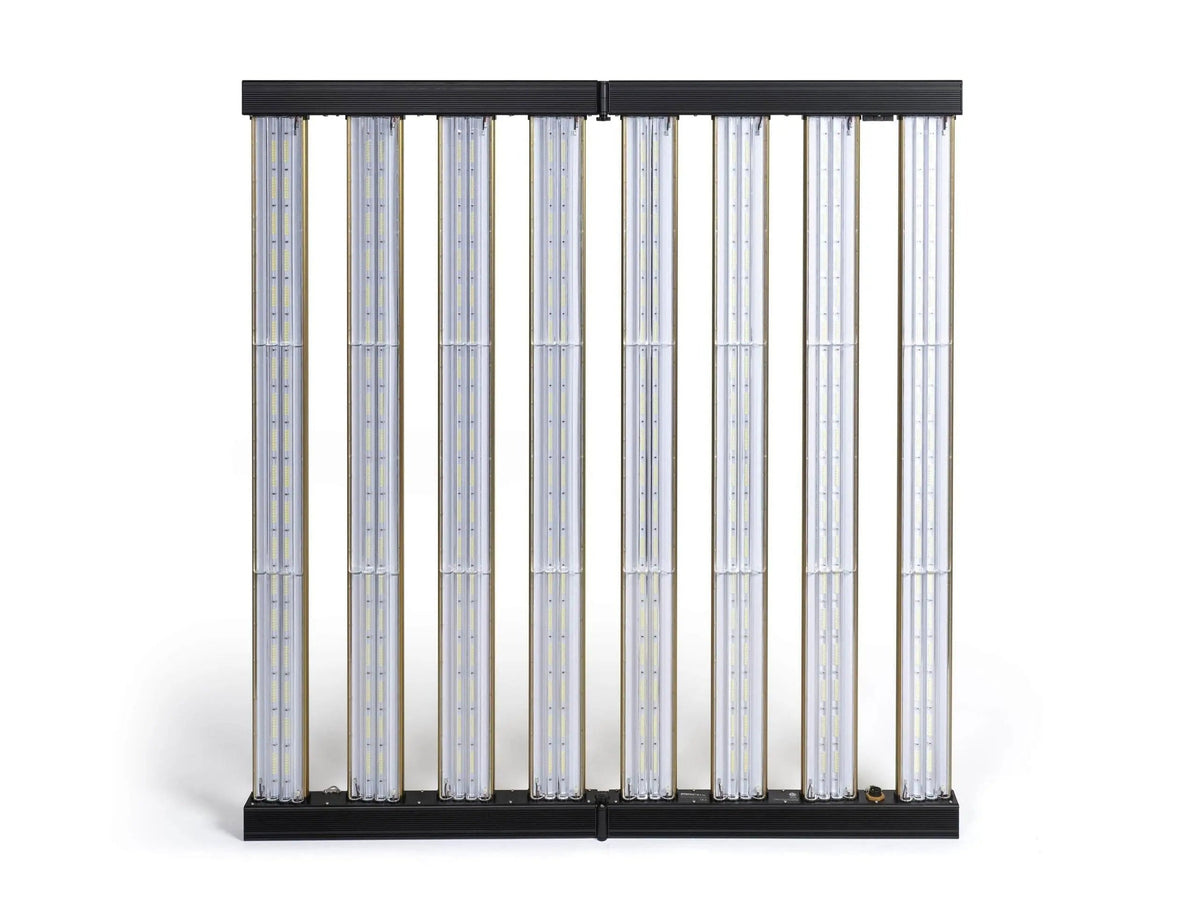

Single-point lamps and cheaper bar lights often leave a bright centre and weak edges, so plants at the sides grow slower and taller. The Xtreme's wide beam (90° x 120°) and bar layout cover the whole footprint evenly, and with the spectrum and intensity under control, you can reduce stretch in veg and raise output in flower without changing fixtures. Match the model to the space: the 500W for a 1.2m tent, and the 750W or 1000W for 1.5m, with the 1000W where you want the highest light intensity.
How to Use

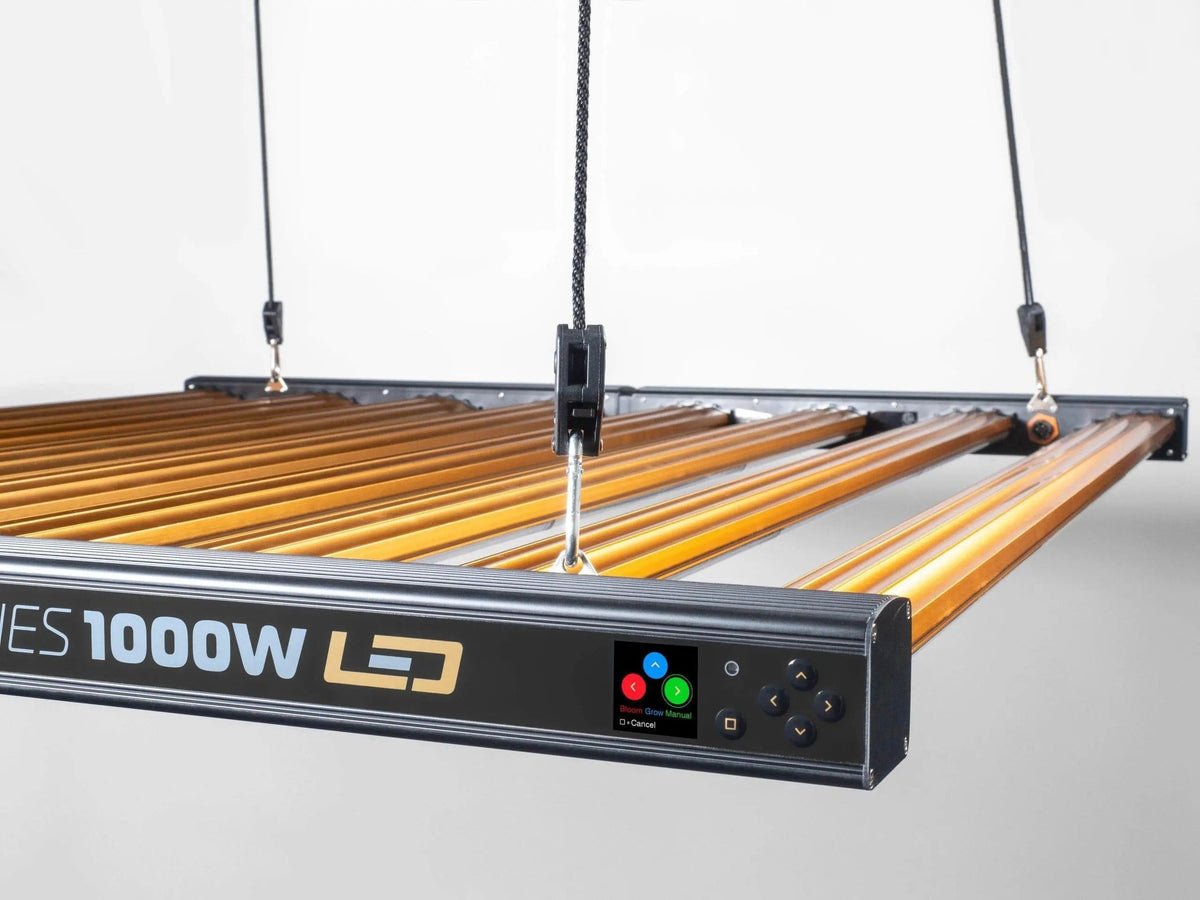

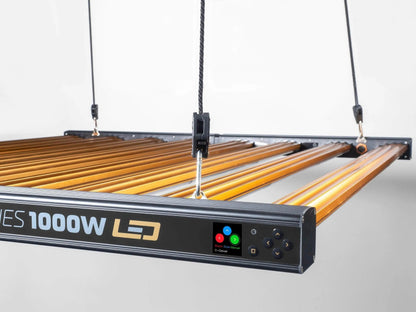

- 750W: Hang 30–65cm above the canopy – higher for young plants, lower once the canopy is established
- 500W: hang 20–50cm above the canopy; 1000W: hang 40–85cm above the canopy

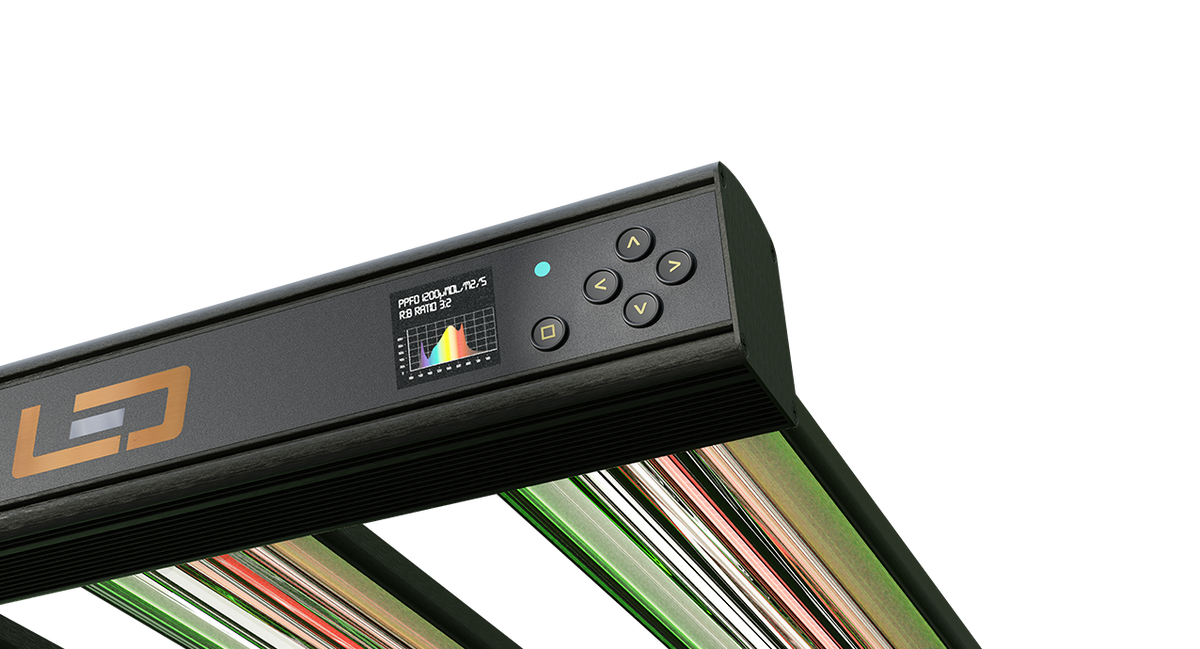

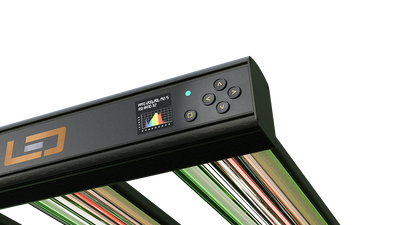

- Set spectrum and output on the 1.54in colour display, or connect a Maxi Controller via the interlink smartport
- Use the plant temperature and light sensor smartports for automatic, crop-led dimming
Technical Specifications
- Spectrum: adjustable PhytoVegSpec full spectrum
- Input voltage: 120–277V AC, 50/60Hz
- Beam angle: 90° x 120°
- Control: built-in controller or Dimlux Maxi Controller; 3 smartports (interlink, plant temperature sensor, light sensor)
- Cooling: passive; max ambient 40°C
- Rating: IP65; L90 >50,000h; 5-year warranty
| By size | 500W | 500W + NIR | 750W |
|---|---|---|---|
| Input power | 540W | 540W | 799W |
| PPF | 1500 µmol/s | 1420 µmol/s | 2276 µmol/s |
| Efficacy | 2.78 µmol/J | 2.67 µmol/J | 2.85 µmol/J |
| Coverage | 1.2 x 1.2m | 1.2 x 1.2m | 1.5 x 1.5m |
| Dimensions | 83.3 x 81.0 x 5.6cm | 83.3 x 81.0 x 5.6cm | 119.1 x 109.0 x 5.6cm |
| Near-infrared (NIR) diodes | No | Yes | No |
| Mounting height | 20–50cm above canopy | 20–50cm above canopy | 30–65cm above canopy |
| Weight | 13.3kg | 13.3kg | 19.3kg |
| By size | 750W + NIR | 1000W | 1000W + NIR |
|---|---|---|---|
| Input power | 799W | 1065W | 1065W |
| PPF | 2159 µmol/s | 3110 µmol/s | 2879 µmol/s |
| Efficacy | 2.7 µmol/J | 2.92 µmol/J | 2.7 µmol/J |
| Coverage | 1.5 x 1.5m | 1.5 x 1.5m | 1.5 x 1.5m |
| Dimensions | 119.1 x 109.0 x 5.6cm | 119.1 x 109.0 x 5.6cm | 119.1 x 109.0 x 5.6cm |
| Near-infrared (NIR) diodes | Yes | No | Yes |
| Mounting height | 30–65cm above canopy | 40–85cm above canopy | 40–85cm above canopy |
| Weight | 19.3kg | 24kg | 24kg |
Frequently Asked Questions
Should I choose a standard or a + NIR model?
The + NIR models add near-infrared diodes, which work together with the red light to drive photosynthesis, but they make plants stretch a little more. Pick + NIR if you have the headroom; choose the standard model for low ceilings or where you want to keep plants compact.
Which output suits my grow space?
The 500W covers 1.2 x 1.2m. The 750W and 1000W both cover 1.5 x 1.5m, with the 1000W giving the higher light intensity across that footprint.
Do I need a Dimlux Maxi Controller?
No. Each fixture can be run from its own built-in controls and colour display. The Maxi Controller adds central scheduling, dimming and climate control across several lights through the interlink smartport.
What is the plant temperature smartport for?
It takes the Dimlux Digital Plant Temperature Camera, which reads leaf temperature at the canopy so the light can respond when the plants run too hot or too cold.
