How to Choose a Water Pump: Flow Rate, Head Height and Duty

A water pump is the one piece of kit in a growing system that everything else depends on, and it is the one most often bought on the wrong number. The figure on the box — 3,000 litres an hour, 5,000 litres an hour — is the flow with the outlet wide open, level with the water, pushing against nothing at all. Ask the same pump to lift solution two metres up a rack and through fifteen metres of pipe and it will deliver a fraction of that, or nothing. This guide explains the two numbers that actually decide whether a pump works, how to read a pump curve, how to size one for any system, what pipe bore costs you, and how to install and maintain it so it lasts more than one crop.

What a pump is actually being asked to do

Strip away the plumbing and every growing system asks its pump for the same three things: move a certain volume of solution, lift it to a certain height, and keep doing it for months without stopping. Those are separate demands, and a pump that is generous on one can be hopeless on another. The cheap 3,000 L/h pump that shifts water beautifully around a shallow tank may not get a dribble to the top of a two-tier rack, because moving water sideways and lifting it upwards are different jobs.

What makes this worth a whole guide is that the failure is quiet. An undersized extractor fan announces itself — the tent is hot. An undersized pump simply delivers less to the far end of the run than to the near end, and the plants at the back grow more slowly. Growers spend weeks adjusting the feed before anyone checks whether the last dripper gets what the first one gets.

The two numbers on the box, and what they mean

Flow rate is how much solution the pump moves, in litres per hour. It is the headline figure and it is measured in the kindest possible conditions: outlet open, no pipe attached, no lift. Think of it as the pump's best case rather than its working figure.

Head height is how high the pump can push water vertically, in metres. It is the number most people never look at, and it is the one that decides whether your system works. Every pump has a height at which its flow falls to zero — the maximum head, sometimes called the shut-off head. Approach that height and the pump is still running, still drawing power, and delivering almost nothing.

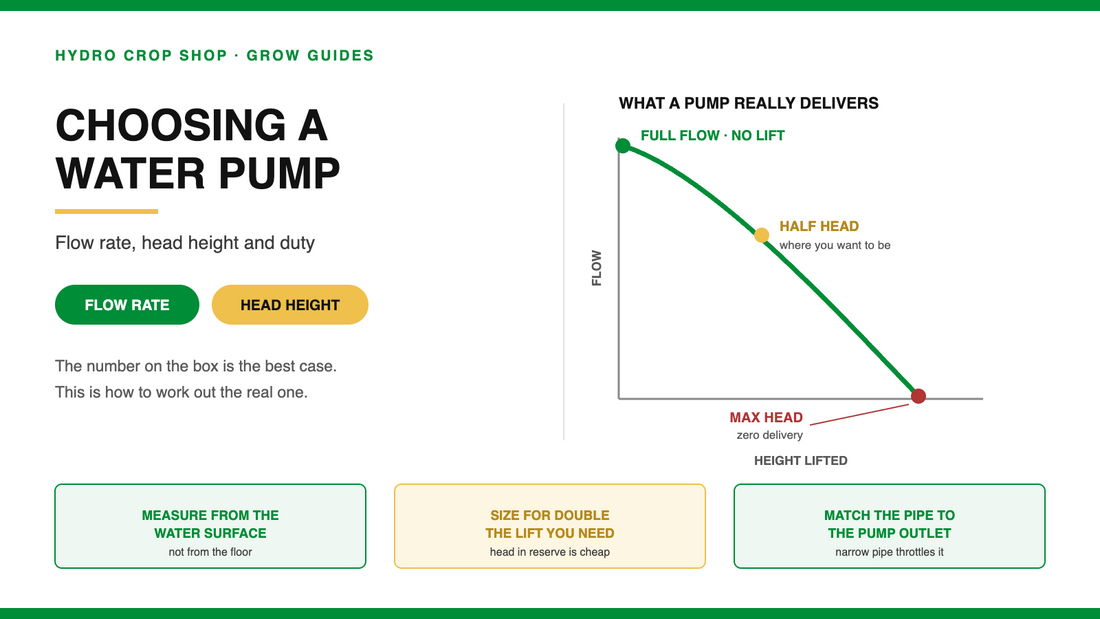

The crucial point is that these two numbers are not independent. They are two ends of the same curve. At zero lift you get the full flow rate. At maximum head you get no flow at all. Everywhere in between you get something in the middle, and where you land on that curve is decided by your plumbing, not by the pump.

Reading the curve: what a pump really delivers

Most manufacturers publish flow and maximum head for each model in a range, and lining those up tells you far more than either figure alone. Here is the Hailea HX88 range, which spans most of what a home or small commercial system needs, with the maker's own published figures.

Read down the head column and the practical lesson appears. The 1,000 L/h model tops out at 1.4m. If your top dripper sits 1.4m above the tank surface, that pump delivers nothing there, however impressive its flow rating looked. And because friction in the pipe adds to the effective height the pump is fighting, you will hit zero well before the tape measure says 1.4m.

Sizing by system: what each setup actually needs

The right pump depends less on how many plants you have than on what job the pump is doing. These are the five patterns that cover almost every system.

Small circulation and feed pumps

This is where most growers start and where most systems stay. Anything from a single container to a modest drip run is served by a pump in this class, and the deciding factor between them is usually head height and whether you want it inside or outside the tank.

The NEWA Maxi-Jet is worth singling out for circulation duty specifically: 500 or 1,000 L/h, a 360° rotating outlet so you can aim the flow where the dead spot is, and a 12.5mm outlet that fits ordinary 13mm irrigation pipe. For a tank that just needs stirring rather than pumping anywhere, that is the whole job.

Bigger delivery pumps

Once a system has real height, real length or a lot of emitters, you move up a class. The AquaKing Q5503 is the clearest illustration of what that buys: 11,000 L/h, 8.5m of head, a 550W motor built for continuous duty, 25mm and 30mm hose fittings plus a 1" male thread, and it passes particles up to 5mm without clogging. That head figure is what lets it feed a tall multi-tier rack without the top row going short.

Submersible, inline and booster — three different animals

Submersible pumps sit in the solution. They are the default for growing systems: simple, quiet because the water muffles them, self-priming because they are already underwater, and cooled by the liquid around them. The trade-off is that all of their waste heat goes into the solution, and you have to lift the pump out to service it.

Inline pumps sit outside the tank with pipe on both sides. They keep their heat out of the solution and are easy to reach, but they must be sited below the reservoir water level so that gravity keeps them primed — a pump above the water line will lose its prime and run dry, which destroys it. Some pumps do both jobs; the Hailea HX In/Out range is built for either configuration.

Booster pumps raise pressure rather than move bulk volume. A reverse osmosis unit fed by weak mains pressure produces water slowly and wastes more to drain, and a booster fixes that; the water-quality side of this is covered in our water quality and RO guide. A constant-pressure booster serves a system needing steady pressure at many outlets regardless of how many are open.

The Dosatron is a different idea again. It is water-driven — the flow through it powers a piston that injects concentrate into the stream at a fixed ratio, so nutrient is mixed on the way to the plants rather than batched in a tank. It needs incoming pressure to work, which is why the booster question matters at that scale.

Pipe, bore and fittings: the performance you throw away for free

The pump is half the system. The pipe is the other half, and it is where most of the avoidable losses live. Water moving through a pipe rubs against the walls, and that friction costs pressure. The pump does not know the difference between lifting water two metres and pushing it through enough pipe to cost the same pressure — both simply reduce what comes out of the far end. This is the same physics as the static pressure that costs an extractor fan its rated airflow, covered in our ducting and noise guide.

Three things drive the loss, and all three are under your control:

1. Bore. This is by far the biggest lever. Narrow pipe does not reduce delivery a little, it reduces it a lot — the penalty climbs very steeply as the bore shrinks. The single most common self-inflicted wound in a growing system is a good pump with a 25mm outlet reduced straight down to 13mm pipe.
2. Length. Loss accumulates with every metre. A long run to the far corner of the room costs real delivery, which is why the last dripper on a long line is always the weakest.
3. Bends and fittings. Every elbow, tee and connector adds resistance. A sharp right angle costs noticeably more than a gentle sweep. Kinks are worst of all, and a kinked soft pipe behind a tank can halve a system's output invisibly.

The tank itself

A pump needs something to pump from, and reservoir volume has quiet advantages: it swings less in temperature, it dilutes any dosing error, and it buys you time when something goes wrong. Collapsible tanks solve the practical problem that a rigid tank big enough to be useful will not fit through a doorway.

Whatever the tank, the pump should stand slightly clear of the very bottom rather than flat in the sediment — a tile, a brick or the pump's own feet will do. Sitting it in the settled layer means it draws grit straight into the impeller.

Duty: running continuously, and where the heat goes

A pump in a growing system is not an occasional appliance. A circulation pump may run every hour of every day for months, and a feed pump may cycle dozens of times a day. That is a far harder life than the same pump would have in a garden feature, and it is why "continuous duty" appears in the specifications of pumps built for this work — the Hailea HX88 range is explicitly designed for it, and the AquaKing Q5503's 550W motor is specified the same way.

Two components decide whether a pump survives that life. The shaft takes the punishment, which is why ceramic shafts appear on pumps meant to run continuously in nutrient solution. The housing has to live in a mildly corrosive, often alkaline liquid without degrading, which is why anti-corrosive ABS and thermoplastic bodies are specified rather than plain plastics or bare metal.

Installing it so it keeps working

1. Never let it run dry. Every manufacturer repeats this, because running dry destroys a pump quickly and permanently. On any system where the tank can run low unattended, that is what a float switch is for — the Clarke pump has one built in.
2. Prime an inline pump properly. Site it below the reservoir water line so gravity fills it, and check it is full before switching on. A submersible pump primes itself by being underwater.
3. Keep the intake clear. Use the filter hood or pre-filter screen the pump came with. Roots, perlite and settled salts end up in the impeller otherwise, and a partly blocked intake starves the pump while it keeps drawing full power.
4. Think about what happens when it stops. Solution standing in the pipework above the pump will run back down — fine if it returns to the tank, a problem if it siphons onto the floor. A non-return valve, or routing the pipe so its high point is above the tank rim, settles it.
5. Isolate the vibration. A pump bolted hard to a tank wall transmits a hum into the whole structure. Suction cups, a foam pad or a rubber mat cost nothing and remove most of the noise.
6. Keep the electrics sane. Pumps live surrounded by water. Use an RCD, drip-loop every cable so water runs off rather than down into a socket, and keep connections above the splash line. The switching side — which loads a plug-in timer can handle and when you need something heavier — is covered in our timers and contactors guide.

The other pump: emptying and cleaning out

Your feed pump is not a drain pump, and most growers discover this at the worst moment. An ordinary submersible stops working with two or three centimetres still in the tank, and that last layer is the part you least want to keep — settled sediment, accumulated salts and organic residue. Bailing it out by hand or mixing fresh solution on top are both bad answers.

A dedicated drainage pump solves it. The Sicce Utility Ultra Zero clears a tank down to a residual depth of 2mm while moving up to 3,000 L/h, with a thermoplastic housing that will not corrode in nutrient solution and a base that comes off without tools for cleaning. Its outlet is a 3/4" male thread that takes a standard garden hose fitting — note that no adaptors are supplied, so add a connector if you do not have one.

While the tank is empty is also the moment to flush the lines through. Biofilm and mineral scale build up inside pipe, drippers and emitters where you cannot see them, and a partly blocked dripper delivers a fraction of what its neighbours do. Running a line cleaner through the system between crops keeps the delivery even and is far easier than diagnosing an uneven feed later.

Timers and cycle control

Whether a pump runs continuously or in cycles depends on the system. Circulation pumps in water culture usually run flat out, permanently. Feed pumps on drip and flood-and-drain systems run in short bursts, and the length and spacing of those bursts is a real horticultural decision — little and often generally beats one long soak, because it keeps the medium evenly moist without driving the air out of it.

The catch is that ordinary domestic timers often have a minimum interval of fifteen or thirty minutes, which is far too coarse for irrigation. Purpose-built irrigation timers handle short durations and short gaps properly.

Maintenance: ten minutes that doubles the life

Pumps in nutrient solution fail for three reasons, and all three are preventable.

Blocked intake. The commonest by far. Debris gradually covers the filter hood and flow falls off over weeks while the pump sounds exactly the same. Rinse the hood or pre-filter whenever flow looks down, and always at a solution change.

Scaled or jammed impeller. Mineral scale builds on the impeller and shaft, especially in hard water. Most pumps in this class strip without tools — pull the impeller, soak it to dissolve the scale, rinse and reassemble. Between crops as routine it takes minutes; after a failure it means buying a pump.

Running dry. Always fatal, and mostly caused by a tank that emptied further than expected — an argument for a slightly larger reservoir.

Add the pipework to the same routine. Flush the lines and emitters with a cleaner between crops, check every dripper is actually dripping, and replace any pipe that has taken a permanent kink. Hard water scales pumps and blocks emitters faster, which is one more reason the water quality guide is worth reading alongside this one.

Shop pumps, pipe and irrigation

Nine mistakes that cost delivery

1. Buying on flow rate alone. The headline litres-per-hour figure assumes no lift and no pipe. Head height is what decides whether the top of your system gets fed.
2. Measuring head from the floor. It is measured from the solution surface, which falls as the tank empties and quietly increases the lift over the week.
3. Running at the pump's maximum head. At its rated maximum a pump delivers nothing. Size for roughly half of it.
4. Necking 25mm down to 13mm at the pump. The single most expensive free mistake in the room. Keep the main line at the outlet bore.
5. Ignoring bends, length and kinks. They behave like extra height to climb, and a kink behind the tank is invisible.
6. Letting it run dry. Fatal every time, and easily prevented with a float switch or a bigger tank.
7. Siting an inline pump above the water line. It will lose its prime and destroy itself. Below the surface, always.
8. Oversizing on a small tank. Wasted power, heat straight into the solution, sediment stirred up and drippers turned into jets.
9. Never cleaning the impeller. Scale and debris reduce output gradually and silently, so the system starves for weeks before anything looks wrong.

Quick answers

How do I work out what head height I need?

Measure vertically from the surface of the solution to the highest point the water must reach, with the tank about half empty — a falling water level increases the lift. Add a margin for the pipe run, then choose a pump whose maximum head is at least double that figure. At its rated maximum a pump delivers nothing at all, so you want to be working around the middle of its curve.

What is the difference between flow rate and head height?

They are two ends of one curve. Flow rate is how much a pump moves with the outlet open and no lift — its best case. Head height is how high it can push water before flow falls to zero. In between you get progressively less flow the higher you lift, so real delivery depends on both numbers plus the resistance of your pipework.

Does pipe size really make that much difference?

Yes, and it is the biggest lever you control for free. Friction against the pipe wall costs pressure, and the penalty climbs very steeply as the bore narrows, so reducing a 25mm outlet straight to 13mm pipe throttles the pump for the whole run. Use at least the pump's own outlet bore along the main line and step down only where you split to emitters.

Can a pump warm up my reservoir?

A submersible one can, because every watt it draws ends up as heat in the water it sits in. It is a small effect on a large tank and a real one on a small tank running a powerful pump continuously. If the solution already runs warm, size the pump more modestly or use an inline pump sited outside the reservoir.

Should the pump run all the time or on a timer?

It depends on the system. Circulation pumps in water culture normally run continuously, so the solution stays moving and oxygenated. Feed pumps on drip and flood-and-drain systems run in short cycles, and little-and-often generally beats one long soak. Ordinary domestic timers are often too coarse for that, so a purpose-built irrigation timer is worth the money.

Why is my last dripper weaker than the first?

Usually pressure rather than a blockage, though check for a blockage first. Pressure falls along the line as friction accumulates, so the furthest emitter sees the least. The fixes are a larger bore on the main run, a shorter or straighter route, fewer sharp bends, or a pump with more head in reserve.

What kills water pumps fastest?

Running dry, which is fatal and immediate; a blocked intake, which starves the pump while it keeps drawing full power; and mineral scale seizing the impeller. Rinse the filter hood at every solution change, de-scale the impeller between crops, and make sure the tank cannot empty below the pump unattended.

Is this the same for tomatoes and other crops?

Exactly the same. Pump curves, head height and friction loss are plumbing rather than horticulture, and a commercial tomato nursery on drip lines sizes a pump from the identical two numbers.
