Hydroponic Systems Explained: DWC, NFT, Drip and Flood and Drain

Every hydroponic system does the same three jobs: it gets water, feed and oxygen to the roots, over and over, without soil to buffer mistakes. What differs is how. Some hang the roots in aerated water, some run a thin film down a channel, some drip, some flood and drain, and some use nothing but gravity. Each one trades a little speed for a little forgiveness, or the other way round. This guide explains how the five main systems work, what each asks of you day to day, what happens to each one in a power cut, and how to choose the one that fits your space and your week.

The three jobs every system has to do

Roots need water, dissolved nutrients and oxygen, all at the same time. In soil, the soil handles the balance: it holds water in small pores, air in the large ones, and a reserve of nutrients besides. In hydroponics you take the soil away, and the system has to do that balancing for you.

• Water and feed come from a tank of nutrient solution. You mix it, check its pH and strength, and the system delivers it.
• Oxygen is the job most systems are really designed around. Roots sitting in still, stale water run short of it quickly, so every design either bubbles air through the water, keeps the water moving in a thin layer, or lets the root zone drain so air is drawn back in.
• Support comes from an inert medium such as clay pebbles, rockwool or coco, or from a net pot and lid with the roots hanging free beneath.

Once you see each system as a different answer to the oxygen question, the differences between them make sense — and so does the trade-off. The more directly a system feeds the roots, the faster plants tend to grow, and the less margin you have when something stops.

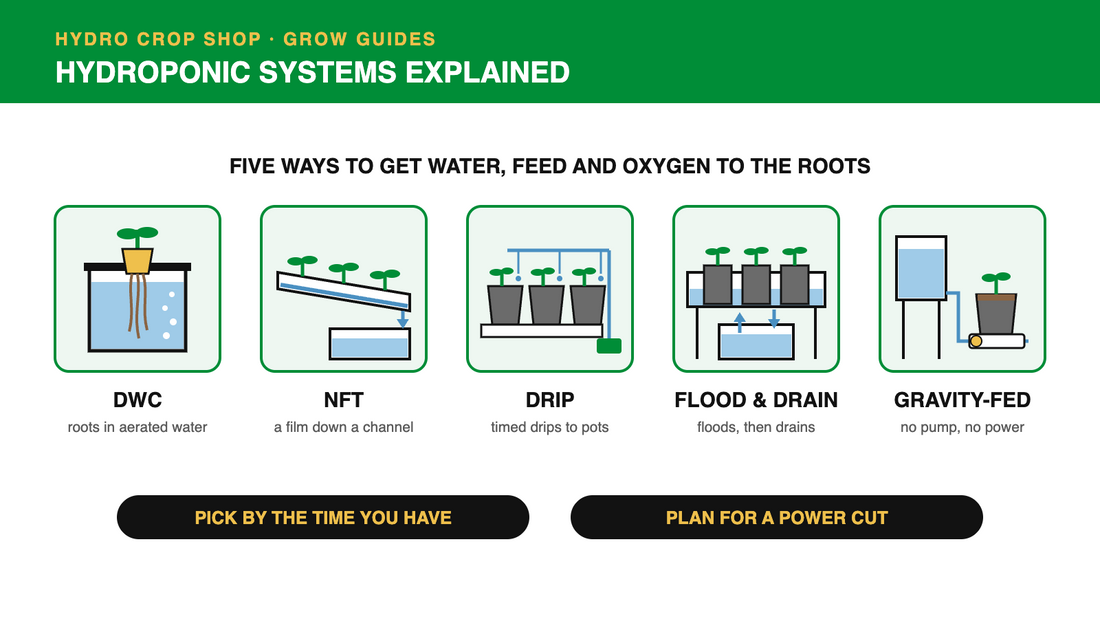

The five systems side by side

Deep water culture: roots in aerated water

In DWC each plant sits in a net pot in the lid of a tank, and its roots hang straight down into the nutrient solution. An air pump outside the tank pushes air through an air stone at the bottom, and the stream of bubbles keeps the water saturated with oxygen. That is the whole system: a tank, a lid, a pump and a stone.

Because the roots have constant access to water, feed and oxygen, DWC is one of the fastest-growing systems there is, and with no water pump or timer it is one of the simplest to build. The catch is that the air pump is now life support. If it stops, the oxygen in the water starts to fall straight away, and in a warm tank it falls faster.

• Keep the water at 18–22°C. Warm water holds less oxygen and grows root disease faster. Our root zone temperature guide explains why this matters more in DWC than anywhere else.
• Keep light out of the tank. Light in the water grows algae. Opaque tanks and well-fitting lids matter.
• Leave a small air gap between the water surface and the bottom of the net pot once roots have grown down, so the top of the root mass sits in humid air rather than underwater.
• Change the solution regularly rather than only topping up. Plants take up water faster than some nutrients, so a tank that is only ever topped up drifts in strength and balance.

Recirculating DWC

RDWC links several DWC buckets to one control tank, with a water pump moving the solution between them. Every plant shares the same solution, so you check pH and strength in one place instead of in every bucket, and the larger total volume changes more slowly. It suits growers running several large plants, at the cost of more plumbing, more joints that can leak, and a water pump as well as an air pump.

The air supply decides how well a DWC system works. Size the pump to the tank, use a fine-bubble stone, and keep a spare stone on the shelf, because they clog slowly and you will not notice the bubbles thinning.

NFT: a thin film down a sloped channel

In the nutrient film technique, plants sit in a channel or tray with a gentle slope. A pump lifts solution from the tank to the high end, it runs down the channel as a shallow film a few millimetres deep, and it drains back into the tank from the low end. The roots form a mat along the bottom of the channel: the underside sits in the moving film, and the top is in moist air, so the roots get water and oxygen together.

NFT uses very little growing medium and very little solution in contact with the roots at any moment, which makes it clean, efficient and quick to clear down between crops. It is a commercial standard for lettuce and herbs for exactly that reason. The weakness is the same thinness that makes it work. With no medium to hold water, a stopped pump or a blocked inlet leaves roots drying in the channel, and on a warm day damage can start within hours.

• Get the slope right. Too flat and solution pools in the channel; too steep and it races past the roots. Follow the kit maker’s set-up, and check the film runs along the whole length.
• Watch for root mats damming the channel as plants get larger. Large, vigorous root systems can block the flow, which is why NFT suits smaller and faster crops best.
• Check the pump every day. In NFT the pump runs all the time, so it is the single point of failure. A spare is cheap insurance; our water pump guide covers choosing one.

Drip: timed feeds to each pot

A drip system runs a supply line from a pump to every pot, with an emitter delivering solution straight to the top of the medium. A timer runs the pump in short cycles. Between feeds the medium drains, and as it drains it draws fresh air into the root zone. That rhythm of wet and drain is what gives the roots their oxygen, and the medium — coco, rockwool or clay pebbles — holds enough water to carry the plant between feeds.

Drip is the most flexible system on this list. It works with almost any inert medium, any pot size and any plant count, and it is how commercial glasshouse tomatoes, cucumbers and peppers are fed. There are two ways to run it:

• Recirculating. The run-off drains back to the tank and is used again. It saves water and feed, but the tank drifts as plants take up some nutrients faster than others, so it needs checking and changing regularly.
• Run to waste. The run-off goes to a drain or a separate collection tank and is not reused. Every feed is fresh and the tank never drifts, at the cost of more water and nutrient. Aim for a little run-off at each feed so salts do not build up in the medium; our coco feeding guide covers the target.

Emitters are the weak point. They are small, and scale, dried feed and root debris block them slowly, so some plants start getting less than others. Check every emitter when you check the tank, and clean the lines between crops — our guide to cleaning between crops covers the routine.

Flood and drain: the tray fills, then empties

Flood and drain, also called ebb and flow, sets pots of medium in a tray or links them to a central unit. On a timer, a pump floods the tray or the pots from below with solution, holds it for a short time, and then lets it all drain back to the tank. As the water level drops it pulls fresh air down through the medium behind it. Each flood soaks every pot evenly, which makes the system easy to scale from a handful of pots to a room.

• Use a free-draining medium. Clay pebbles, or pebbles mixed with a little coco, suit it best. A medium that stays waterlogged after the drain defeats the point. Our growing media guide compares them.
• The timer sets the rhythm. How often you flood depends on how much water the medium holds, the size of the plants and the warmth of the room. Pebbles need flooding more often than a coco mix.
• Make sure it drains completely. An overflow or float switch sets the flood height, and the drain has to clear fully every time. Pots sitting in standing water lose the oxygen the system relies on.

Larger modular systems such as the IWS range use a central control unit and float switches to flood each pot to a set height, and drain pumps to return the solution to the tank. The Trident version floods each pot from a port in the centre of its base.

Gravity-fed: no pump, no timer, no power

Gravity-fed systems such as AutoPot and EasyFeed put the tank above the pots and let gravity do the delivery. Each pot sits on a tray or module fitted with a valve that controls how much solution reaches it, and the medium soaks up from the base. AutoPot’s valve lets the tray dry out completely before it lets the next dose in, which gives the root zone a wet and dry rhythm without anything switching on or off; EasyFeed modules use a float valve to keep the base supplied.

Strictly, these sit between hydroponics and conventional growing: they work with coco, soil or clay pebbles, and they behave like very consistent bottom-watering. Their great strength is that they need no mains power at all. A power cut, a tripped socket or a failed timer does not touch them, and a full tank can carry plants for days, which suits growers who cannot check in every day.

• Keep the tank above the valves and the trays level. The system depends on a steady fall and on each valve seeing the same water level.
• Use an inline filter and keep the solution clean, because a small particle in a valve can hold it open or shut.
• Size the tank to your absence. The bigger the reservoir, the longer the system runs without you. A collapsible water butt adds capacity without a permanent footprint.

Shop hydroponic systems

How to choose: five questions

1. How often can you check it? This matters more than anything else. Daily checks suit any system. If you are away for a few days at a time, a gravity-fed system or a drip system on a medium that holds water will forgive you; NFT and DWC will not.
2. How reliable is your power? If outages happen, or the grow space shares a circuit with something that trips, favour systems with a medium that holds water, or one that needs no power. A battery-powered backup air pump is a cheap safeguard for DWC.
3. How big will the plants get? Small, quick crops suit NFT. Large plants need room for roots and a medium or bucket that will hold them up, which points to drip, flood and drain, RDWC or larger gravity-fed pots. Our pot size guide helps with volumes.
4. How much space and noise can you live with? DWC needs an air pump running all day and night, and a water pump makes some noise too. Gravity-fed systems are silent. Tank size also matters: a larger reservoir is more stable but needs room beside or above the plants.
5. Do you want to grow in a medium at all? If you prefer coco and the margin it gives, drip and gravity-fed systems let you keep it. If you want the cleanest, fastest set-up, DWC and NFT do without it almost entirely.

The kit every system needs

Whichever system you choose, the same few checks keep it healthy. Without soil to buffer it, a hydroponic tank shows you its problems through its numbers before the plants do.

• pH. Hydroponic solutions are usually run at around pH 5.5–6.0, a little lower than soil. Check it every time you mix or top up. Our pH guide explains how to measure and adjust it.
• Feed strength (EC). An EC meter tells you how strong the solution is, and whether it is drifting as plants drink.
• Water temperature. 18–22°C in the tank keeps oxygen up and root disease down.
• Starting water. Very hard tap water adds minerals before you have added any feed. Our water quality guide covers when that matters.
• A timer. Drip and flood and drain systems need one that can run short, repeated cycles; our timers guide covers the options.

Seven mistakes that cost a hydroponic crop

1. Treating a pump as fit-and-forget. In DWC and NFT the pump is life support. Listen for it and look at it every day.
2. Letting the tank get warm. Warm water holds less oxygen and grows root disease. Keep it at 18–22°C.
3. Letting light into the tank. Light grows algae, which competes for oxygen and clogs pumps and emitters.
4. Only ever topping up. The solution drifts in strength and balance. Change it on a schedule.
5. Ignoring blocked emitters. One blocked dripper starves one plant while the rest look fine. Check them all.
6. Using a medium that stays wet in flood and drain. The drain is where the oxygen comes from. A waterlogged medium cancels it.
7. Building big before learning small. Every system has its own rhythm. Learn it on a small set-up first.

Quick answers

What is the easiest hydroponic system for a beginner?

A single DWC bucket is the simplest to build, but its air pump must run all the time. Gravity-fed systems such as AutoPot are the most forgiving: no power, and the medium holds water between doses.

Which hydroponic system grows fastest?

Systems that feed the roots most directly, such as DWC, RDWC and NFT, tend to grow fastest, because the roots have constant access to water, feed and oxygen. The trade-off is less margin for error: they react quickly to warm water, a stopped pump or a drifting tank.

What happens to a hydroponic system in a power cut?

It depends on the system. NFT is the most exposed, because roots in a thin film can start to dry within hours. In DWC the roots stay wet but the oxygen in the water falls. Drip and flood and drain have a medium that holds some water. Gravity-fed systems need no power at all.

What is the difference between DWC and RDWC?

In DWC each tank is its own system with its own air stone. In RDWC several buckets are linked to one control tank and a water pump moves the solution between them, so you check pH and strength in one place.

Is a drip system better recirculating or run to waste?

Recirculating saves water and feed, but the tank drifts and needs checking and changing. Run to waste gives a fresh feed every time and never drifts, but uses more water and nutrient.

What growing medium should I use in flood and drain?

A free-draining medium such as clay pebbles, or pebbles with a little coco mixed in for more water-holding. The drain is what pulls fresh air into the root zone, so a medium that stays waterlogged after the flood defeats the point of the system.

Is AutoPot a hydroponic system?

It can be. AutoPot is a gravity-fed system that runs with clay pebbles as a hydroponic system, or with coco or soil as an automatic watering system. Its valve doses each tray, waits for it to dry, then doses again, with no pump, timer or mains power.

Is this the same for tomatoes and other crops?

Yes. Lettuce and herbs are grown commercially in NFT and rafts, glasshouse tomatoes, cucumbers and peppers are drip-fed on rockwool and coco, and nurseries use ebb and flow benches. Roots need water, feed and oxygen whatever you grow.
